ASD-A2EN1003 Encoder Cable 3m for ASDA-A2 Series | Compatible with Delta

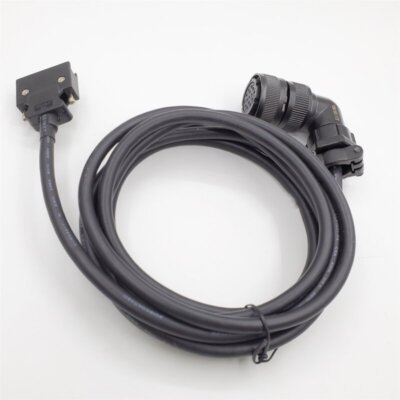

The Original New ASD-A2EN1003 is a 3-metre encoder feedback cable designed for Delta ASDA-A2 series servo drives. It connects the servo drive's CN2 encoder interface to Delta ECMA series servo motors, enabling precise position and speed feedback for high-performance motion control. The cable features a gold-plated SCSI 20-pin plug on the drive end and a military connector 20-29S on the motor end, ensuring secure and reliable signal transmission in industrial automation environments. Constructed with shielded twisted-pair conductors and an oil-resistant PVC sheath, it provides excellent noise immunity and durability for demanding machining and automation applications.

Core Engineering Highlights:
3-metre length | 20-pin gold-plated SCSI plug (drive end) | Military connector 20-29S (motor end) | Shielded twisted-pair construction | Oil-resistant PVC sheath | Suitable for ASDA-A2 series drives 1 kW and above | CE certified | RoHS3 Compliant | Part Status: Active

Key Features:

• Original New ASD-A2EN1003 encoder cable

• 3-metre cable length (3000 mm) for flexible machine layout

• Drive end terminated with gold-plated SCSI 20-pin plug

• Motor end terminated with military connector 20-29S

• Shielded twisted-pair conductors for high noise immunity

• Oil-resistant PVC sheath suitable for industrial environments

• High-flex design suitable for drag chain systems

• Designed for ASDA-A2 series servo drives 1 kW and above

• Compatible with Delta ECMA series servo motors with incremental encoders

• Plug-and-play between drive and motor — no field wiring required

• CE certified

Applications:

• Encoder feedback connection for ASDA-A2 series servo drives

• CNC machine tools and precision positioning systems

• Packaging machinery and labeling equipment

• Industrial robotic arms and manipulators

• Automated assembly lines

• Applications using Delta ECMA series servo motors with incremental encoders

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-A2 series servo drives (e.g., ASD-A2-0121, ASD-A2-0221, ASD-A2-0421, ASD-A2-0721, ASD-A2-1021, ASD-A2-1521, ASD-A2-2023, ASD-A2-3023). Drive model and firmware compatibility should be verified before installation.

• Connects to ASDA-A2 drive CN2 encoder connector

• Compatible with Delta ECMA series servo motors with incremental encoders (1 kW and above)

• Alternative lengths available: ASD-A2EN1005 (5 m), ASD-A2EN1010 (10 m)

Related Products:

• ASD-A2EN1005 – Encoder cable, 5 m length (longer routing)

• ASD-A2EN1010 – Encoder cable, 10 m length (extended routing)

• ASD-CAEN1003 – Original Delta encoder cable, 3 m (official part number)

• ASD-A2PW3003 – Servo motor power cable, 3 m, for ASDA-A2 series

• ECMA-E11315RS – 1.5 kW ECMA series servo motor (compatible motor)

• ASD-A2-1521-M – 1.5 kW ASDA-A2 series servo drive (compatible drive)

• ASD-A2-3023-L – 3 kW ASDA-A2 series servo drive (compatible drive)
