ASD-ABEN0003 Incremental Encoder Cable 3m for ASDA-A2 | Compatible with Delta

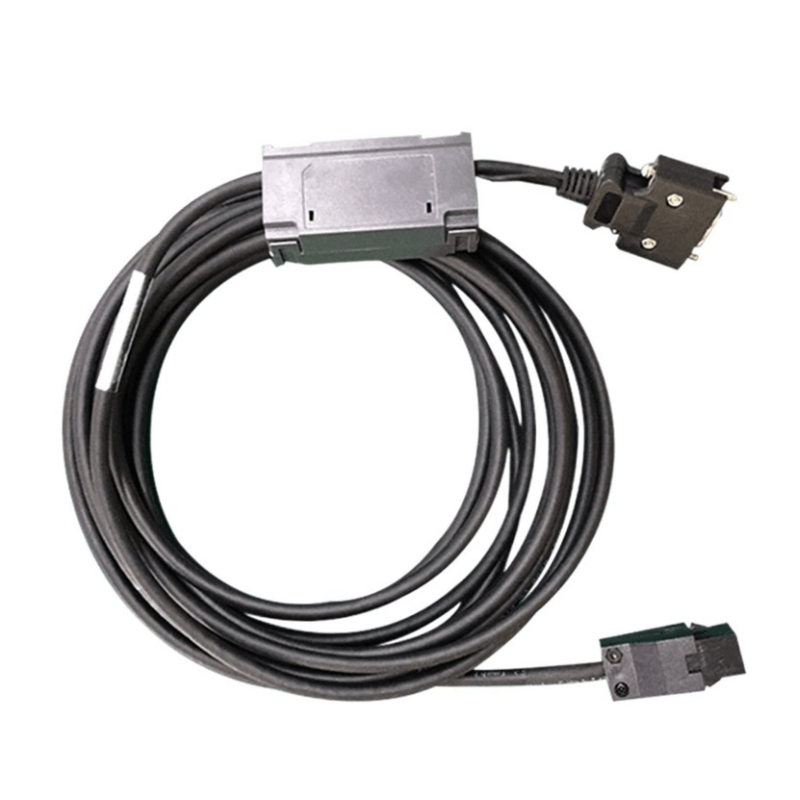

The Original New ASD-ABEN0003 is a 3-metre incremental encoder feedback cable designed for Delta ASDA-A2 series servo drives. It connects the servo drive's CN2 encoder interface to Delta ECMA series servo motors, enabling precise position and speed feedback for high-performance motion control. The cable features a robust 3M SCSI-style connector on the drive end and an AMP connector on the motor end, ensuring secure and reliable signal transmission in industrial automation environments.

⚠️ Important Compatibility Note:
This cable is designed specifically for ASDA-A2 series servo drives. For ASDA-B2 series drives, a different encoder cable is required (e.g., ASDBCAEN0003). Please verify drive model compatibility before ordering.

Core Engineering Highlights:
3-metre length (3000 ± 100 mm) | 10-core shielded twisted-pair construction | Drive end: 3M 10120-3000PE plug + 3M 10320-52A0-008 shell | Motor end: AMP 1-172161-9 housing + AMP 170359-3 terminal + Delta 34703237XX clamp | Suitable for ASDA-A2 drives up to 750 W | Incremental encoder feedback | CE certified

Key Features:

• Original New ASD-ABEN0003 encoder cable

• 3-metre cable length (3000 ± 100 mm) for flexible machine layout

• Drive end terminated with 3M SCSI-style connector (3M 10120-3000PE plug, 3M 10320-52A0-008 shell)

• Motor end terminated with AMP connector (AMP 1-172161-9 housing, AMP 170359-3 terminal, DELTA 34703237XX clamp)

• 10-core (4-pair) shielded twisted-pair construction for noise immunity

• Suitable for ASDA-A2 series servo drives up to 750 W

• Designed for incremental encoder feedback signal transmission

• Plug-and-play between drive and motor — no field wiring required

• CE certified

Applications:

• Encoder feedback connection for ASDA-A2 series servo drives

• CNC machine tools and precision positioning systems

• Packaging machinery and labeling equipment

• Industrial robotic arms and manipulators

• Automated assembly lines

• Applications using Delta ECMA series servo motors with incremental encoders

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-A2 series servo drives (e.g., ASD-A2-0121, ASD-A2-0221, ASD-A2-0421, ASD-A2-0721) up to 750 W. Drive model and firmware compatibility should be verified before installation.

• Connects to ASDA-A2 drive CN2 encoder connector

• Compatible with Delta ECMA series servo motors with incremental encoders and flange sizes up to 86 mm

• Not compatible with ASDA-B2 series drives — for B2 series, use ASDBCAEN0003 encoder cable

• Alternative 5-metre version available as ASD-ABEN0005

Related Products:

• ASD-ABEN0005 – Incremental encoder cable, 5 m length (longer routing)

• ASD-ABPW0003 – Servo motor power cable, 3 m, for ASDA-A2 series

• ASDBCAEN0003 – Encoder cable for ASDA-B2 series (3 m) — different compatibility

• ECMA-C10807RS – 750 W ECMA series servo motor (compatible motor)

• ASD-A2-0721-M – 750 W ASDA-A2 series servo drive (compatible drive)
