ASD-B2-0421-B 400W AC Servo Drive 220V 1/3-Phase | Delta

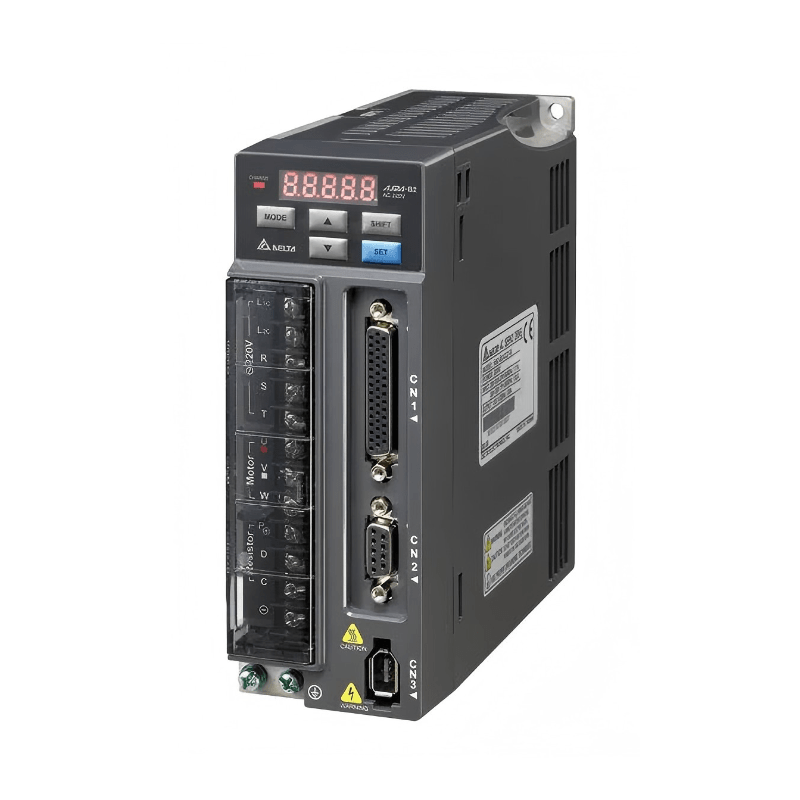

The Original New Delta ASD-B2-0421-B is a 400 W AC servo drive from the ASDA-B2 series, designed for general-purpose machine control applications requiring precise positioning and cost-effective motion control. Rated 400 W (0.5 HP) with 2.6 Arms continuous output current and 7.8 Arms instant maximum output current, it operates on 220 V AC single-phase or three-phase input. The drive supports position, speed, and torque control modes, with pulse command input up to 4 Mpps (differential) for high-precision positioning. Equipped with RS-232 and RS-485 communication interfaces and compatible with Delta ECMA series servo motors featuring 17-bit encoders, the ASD-B2-0421-B delivers reliable performance for packaging, textile, material handling, and small CNC applications. The built-in auto-notch filters and friction compensation improve low-speed stability and reduce mechanical resonance.

Core Engineering Highlights:
400 W (0.5 HP) rated output power | 2.6 Arms continuous output current / 7.8 Arms instant max current | 220 V AC, 1-phase or 3-phase input | Position, Speed, and Torque control modes | 4 Mpps max pulse input frequency | 17-bit encoder support (160,000 ppr) | RS-232 + RS-485 communication | Built-in auto-notch filters (2 auto + 1 manual) | Friction compensation | 0°C to +55°C operating temperature

Key Features:

• Original New Delta ASD-B2-0421-B servo drive

• 400 W (0.5 HP) rated output power with 2.6 Arms continuous output current

• 7.8 Arms instant maximum output current for dynamic load handling

• Supports 220 V AC single-phase or three-phase input

• Three control modes: Position, Speed, and Torque (freely switchable via parameters)

• High-speed differential command input up to 4 Mpps for high-precision positioning

• Supports 17-bit incremental encoders (160,000 pulses/revolution) for smooth low-speed operation

• Built-in auto-notch filters (2 auto + 1 manual) for mechanical resonance suppression

• Friction compensation function improves low-speed crawling performance

• RS-232 and RS-485 (Modbus RTU) communication interfaces

• Built-in keypad and digital display for parameter setting and real-time monitoring

• Multi-channel DI/DO terminals with customizable functions

• Compact chassis-mount design for control cabinet installation

• Natural cooling structure with IP20 protection

Applications:

• Packaging machinery

• Textile machinery

• Material handling and conveying systems

• Automated assembly lines

• Small to medium-sized CNC machines

• General-purpose machine control with moderate power requirements

• 3C automation equipment

• Small conveying mechanisms and transfer manipulators

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors with 17-bit encoders, including ECMA-C20604RS, ECMA-C20604ES (with brake), ECMA-C20404RS, and ECMA-C20404ES (with brake). Motor model and firmware compatibility should be verified before installation.

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Supports pulse train command from PLC positioning modules and motion controllers

• Direct interface to mainstream PLC pulse output ports without additional conversion modules

Related Products:

• ECMA-C20604RS – 400 W low-inertia AC servo motor (recommended matching motor)

• ECMA-C20604ES – 400 W low-inertia AC servo motor with brake

• ASD-B2-0721-B – 750 W servo drive (higher power)

• ASD-B2-1521-B – 1.5 kW servo drive (higher power)

• ASD-B2L-0421-B – 400 W servo drive (L-type variant)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
