ASD-B2-0721-B 750W AC Servo Drive 220V 1/3-Phase | Delta

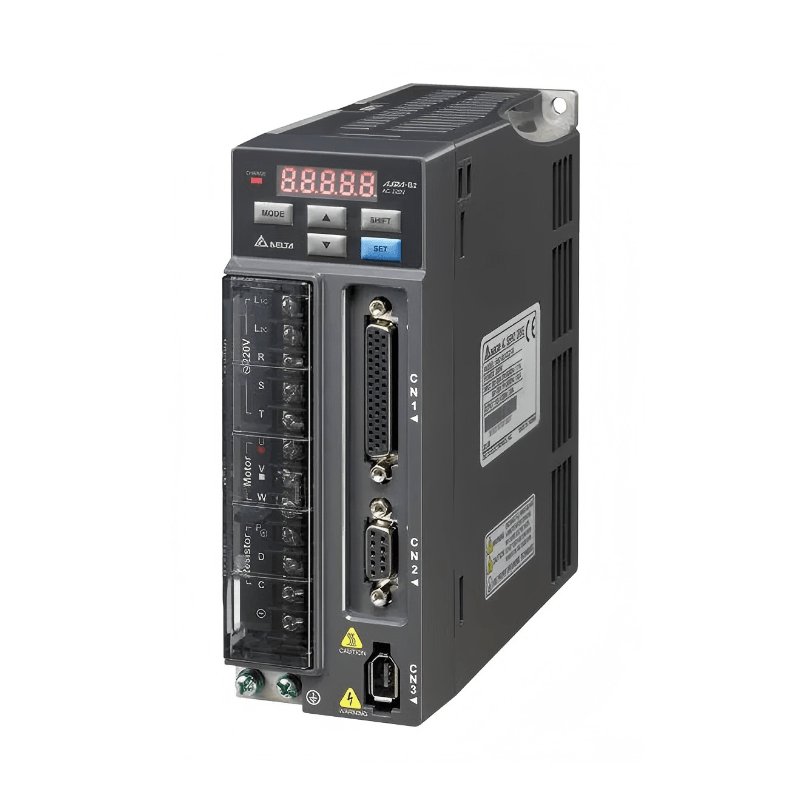

The Original New Delta ASD-B2-0721-B is a 750 W AC servo drive from the ASDA-B2 series, designed for general-purpose machine control applications requiring precise positioning and cost-effective motion control. Rated 750 W (1 HP) with 5.1 Arms continuous output current, it operates on 220 V AC single-phase or three-phase input [0†L6-L7][5†L16-L17]. The drive supports position, speed, and torque control modes, with pulse command input up to 4 Mpps (differential) for high-precision positioning [9†L13-L14]. Equipped with RS-232 and RS-485 (Modbus RTU) communication interfaces and compatible with Delta ECMA series servo motors featuring 17-bit encoders, the ASD-B2-0721-B delivers reliable performance for packaging, textile, material handling, and small CNC applications [9†L13-L15][11†L14-L15]. The built-in auto-notch filters and friction compensation improve low-speed stability and reduce mechanical resonance.

Core Engineering Highlights:
750 W (1 HP) rated output power | 5.1 Arms continuous output current | 220 V AC, 1-phase or 3-phase input | Position, Speed, and Torque control modes | 4 Mpps max pulse input frequency | 17-bit encoder support | RS-232 + RS-485 (Modbus RTU) communication | Built-in auto-notch filters | Friction compensation | 0°C to +55°C operating temperature

Key Features:

• Original New Delta ASD-B2-0721-B servo drive

• 750 W (1 HP) rated output power with 5.1 Arms continuous output current [5†L20-L21]

• Supports 220 V AC single-phase or three-phase input [5†L16-L17][7†L9-L10]

• Three control modes: Position, Speed, and Torque (freely switchable)

• High-speed differential command input up to 4 Mpps for high-precision positioning

• Supports 17-bit incremental encoders for smooth low-speed operation [9†L14]

• Built-in auto-notch filters (2 auto + 1 manual) for mechanical resonance suppression

• Friction compensation function improves low-speed crawling performance

• RS-232 and RS-485 (Modbus RTU) communication interfaces [9†L15]

• Built-in keypad and digital display for parameter setting and real-time monitoring

• Compact chassis-mount design for control cabinet installation [5†L22-L23]

• Protection features: over-current, over-voltage, under-voltage, overload, over-temperature, over-speed [9†L15-L16]

Applications:

• Packaging machinery

• Textile machinery

• Material handling and conveying systems

• Automated assembly lines

• Small to medium-sized CNC machines

• General-purpose machine control with moderate power requirements

• 3C automation equipment

• Small conveying mechanisms and transfer manipulators

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors, including ECMA-C20807RS, ECMA-C20907RS, ECMA-E21307RS, and other 750 W models. Motor model and firmware compatibility should be verified before installation [9†L26-L29].

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Supports pulse train command from PLC positioning modules and motion controllers

Related Products:

• ECMA-C20807RS – 750 W low-inertia AC servo motor (recommended matching motor)

• ECMA-C20907RS – 750 W low-inertia AC servo motor (alternative)

• ECMA-E21307RS – 750 W medium-inertia AC servo motor

• ASD-B2-0421-B – 400 W servo drive (lower power)

• ASD-B2-1021-B – 1 kW servo drive (higher power)

• ASD-B2L-0721-B – 750 W servo drive (L-type variant)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
