ASD-B2-1021-B 1kW AC Servo Drive 220V 1/3-Phase | Delta

The Original New Delta ASD-B2-1021-B is a 1 kW AC servo drive from the ASDA-B2 series, designed for general-purpose machine control applications requiring precise positioning and cost-effective motion control. Rated 1 kW (1.3 HP) with 7.3 A output current, it operates on 220 V AC single-phase or three-phase input. The drive supports position, speed, and torque control modes, with a 17-bit encoder (160,000 ppr) for high-precision positioning and smooth low-speed operation. Equipped with RS-232 and RS-485 communication interfaces and compatible with Delta ECMA series servo motors, the ASD-B2-1021-B delivers reliable performance for packaging, textile, material handling, and small CNC applications. The built-in auto-notch filters and friction compensation improve low-speed stability and reduce mechanical resonance.

Core Engineering Highlights:
1 kW (1.3 HP) rated output power | 7.3 A output current | 220 V AC, 1-phase or 3-phase input | Position, Speed, and Torque control modes | 17-bit encoder (160,000 ppr) | RS-232 + RS-485 communication | Built-in auto-notch filters | Friction compensation | 0°C to +55°C operating temperature | Part Status: Obsolete

Key Features:

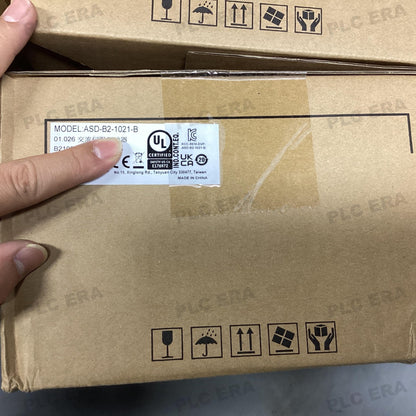

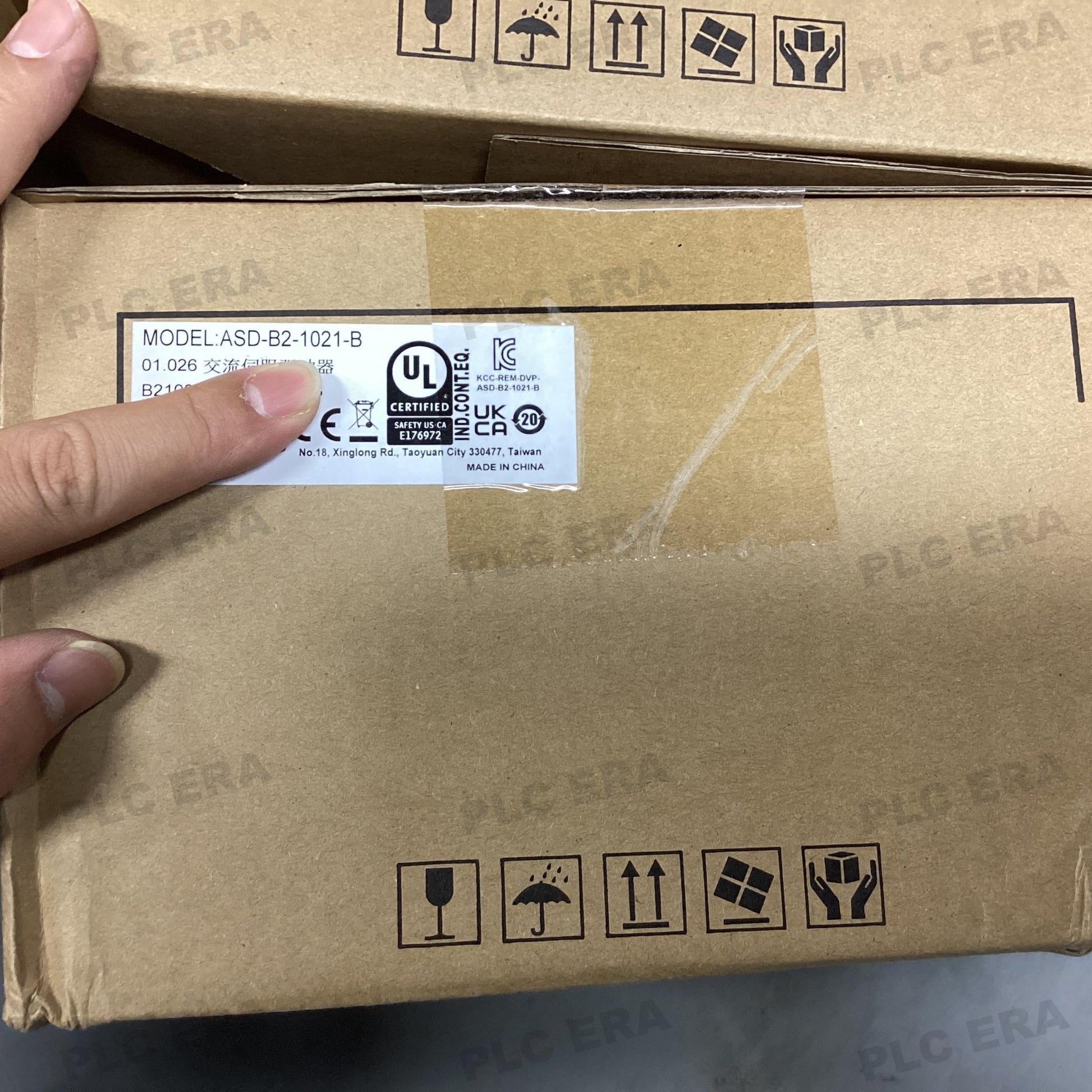

• Original New Delta ASD-B2-1021-B servo drive

• 1 kW (1.3 HP) rated output power with 7.3 A output current

• Supports 220 V AC single-phase or three-phase input

• Three control modes: Position, Speed, and Torque (freely switchable)

• 17-bit incremental encoder (160,000 ppr) for high-precision positioning and smooth low-speed operation

• Built-in auto-notch filters (3 auto resonant suppression filters) for mechanical resonance suppression

• Friction compensation function improves low-speed crawling performance

• RS-232 and RS-485 communication interfaces, supports Modbus communication protocol

• Built-in regeneration resistor (400 W and above) — no additional wiring space required

• Screw-type terminal block design for simplified wiring and cost savings

• Shared power and encoder cables with ASDA-B series for easy upgrades

• Panel operation control — parameter setting and adjustment directly on the drive

• Part Status: Obsolete (discontinued by manufacturer)

Applications:

• Packaging machinery

• Textile machinery

• Material handling and conveying systems

• Automated assembly lines

• Small to medium-sized CNC machines

• General-purpose machine control with moderate power requirements

• 3C automation equipment

• Small conveying mechanisms and transfer manipulators

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors, including ECMA-C21010RS (1 kW low-inertia), ECMA-C21010SS (1 kW with brake), and ECMA-E21310RS (1 kW medium-inertia). Motor model and firmware compatibility should be verified before installation.

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Supports pulse train command from PLC positioning modules and motion controllers

• Power and encoder cables are shared with ASDA-B series for easy upgrades from previous Delta servo systems

Related Products:

• ECMA-C21010RS – 1 kW low-inertia AC servo motor (recommended matching motor)

• ECMA-C21010SS – 1 kW low-inertia AC servo motor with brake

• ECMA-E21310RS – 1 kW medium-inertia AC servo motor

• ASD-B2-0721-B – 750 W servo drive (lower power)

• ASD-B2-1521-B – 1.5 kW servo drive (higher power)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
