DOP-107SV 7-Inch Touch HMI 800x480 65535 Colors Ethernet | Delta

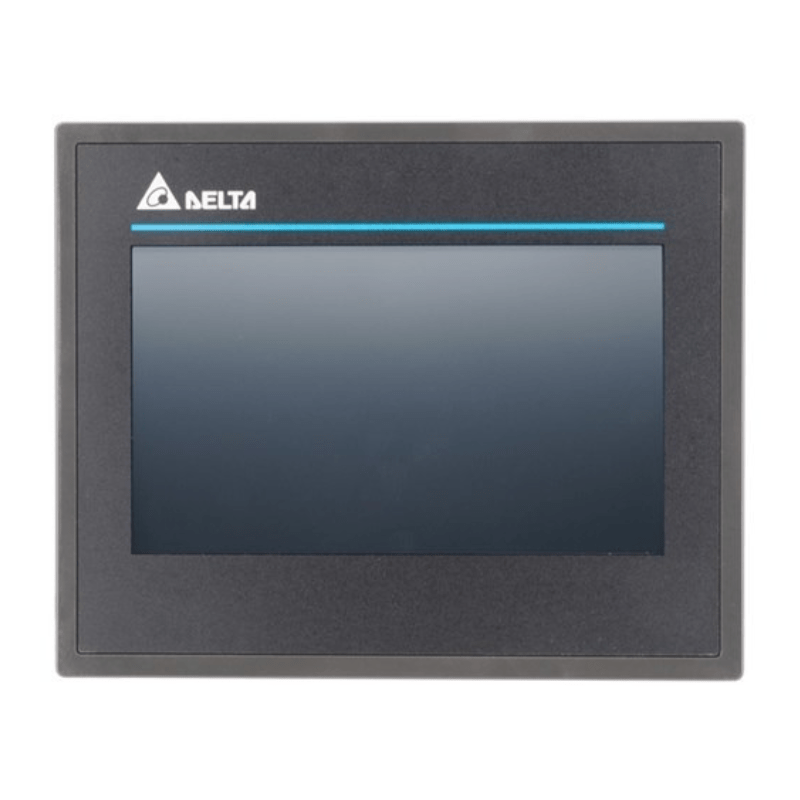

The Original New Delta DOP-107SV is a 7-inch Human Machine Interface (HMI) from the DOP-100 series, engineered for seamless operator control and monitoring in industrial automation. Featuring a 7-inch TFT LCD display with 800 × 480 pixel resolution and 65,535 colors, it delivers clear, detailed visualization for machine-level applications. Powered by an ARM Cortex-A8 (800 MHz) processor with 128 MB Flash ROM and 128 MB RAM, the DOP-107SV ensures responsive performance for complex HMI projects. Built-in RS-232, RS-422, and RS-485 communication ports enable flexible connectivity with PLCs, drives, and controllers. The 4-wire resistive touchscreen (rated for over 1,000,000 operations) provides reliable operator input, while the IP65 front panel rating protects against dust and water ingress in indoor industrial environments. Programmed via Delta DOPSoft software, this HMI is an ideal solution for packaging, manufacturing, and process control applications.

Core Engineering Highlights:
7" TFT LCD display (65,535 colors) | 800 × 480 pixel resolution | ARM Cortex-A8 (800 MHz) CPU | 128 MB Flash ROM / 128 MB RAM | 4-wire resistive touchscreen (>1,000,000 operations) | RS-232 + RS-422 + RS-485 communication | 1 × USB Slave 2.0 + 1 × USB Host 2.0 | IP65 front panel protection | 24 V DC power supply | 8.6 W max power consumption

Key Features:

• Original New Delta DOP-107SV HMI

• 7-inch TFT LCD display with 65,535 colors and 800 × 480 pixel resolution

• LED backlight with 20,000+ hours half-life (at 25°C)

• Brightness: 400 cd/m² (typical)

• Display range: 154.08 mm × 85.92 mm

• ARM Cortex-A8 (800 MHz) processor for fast, responsive operation

• 128 MB Flash ROM and 128 MB RAM for project storage and data handling

• 4-wire resistive touchscreen rated for over 1,000,000 operations

• Built-in multi-tone buzzer (2K–4K Hz, 80 dB)

• Communication ports: 1 × RS-232/RS-485 (COM1), 1 × RS-422/RS-485 (COM2)

• 1 × USB Slave 2.0 and 1 × USB Host 2.0 ports

• Built-in real-time clock (calendar) with CR2032 backup battery

• Natural cooling (fanless) for maintenance-free operation

• Panel mount design with IP65 waterproof rating (indoor use)

• Programmed via Delta DOPSoft software (free download)

Applications:

• Machine-level operator control and monitoring

• Production line visualization and data entry

• Packaging machinery HMI

• Material handling equipment control

• Process monitoring and alarm management

• Factory automation and OEM machine integration

• Small to medium machine control applications

Technical Specifications:

System Compatibility:

• Compatible with Delta PLCs (DVP, AS, AH series) via RS-232, RS-422, or RS-485

• Compatible with Delta VFD drives, servo drives, and motion controllers via serial communication

• Compatible with third-party PLCs and controllers supporting Modbus RTU/ASCII protocols

• Programmed via Delta DOPSoft software (free download from Delta website)

• Supports USB Host for data transfer and USB Slave for PC programming

• Panel mount design for standard industrial control cabinet installation

Related Products:

• DOP-107BV – 7" HMI, 800 × 480, basic version (lower cost)

• DOP-107EV – 7" HMI, 800 × 480, Ethernet version (network connectivity)

• DOP-107CV – 7" HMI, 800 × 480, compact version

• DOP-107DV – 7" HMI, 800 × 480, high-color version

• DOP-110WS – 10" HMI, 1024 × 600, widescreen version (larger display)

• DOPSoft – Delta HMI programming software (free download)

• USB programming cable – For PC connection and project download
