DOP-112MX 12-Inch Advanced Multimedia HMI Touchscreen 1024x768 | Delta

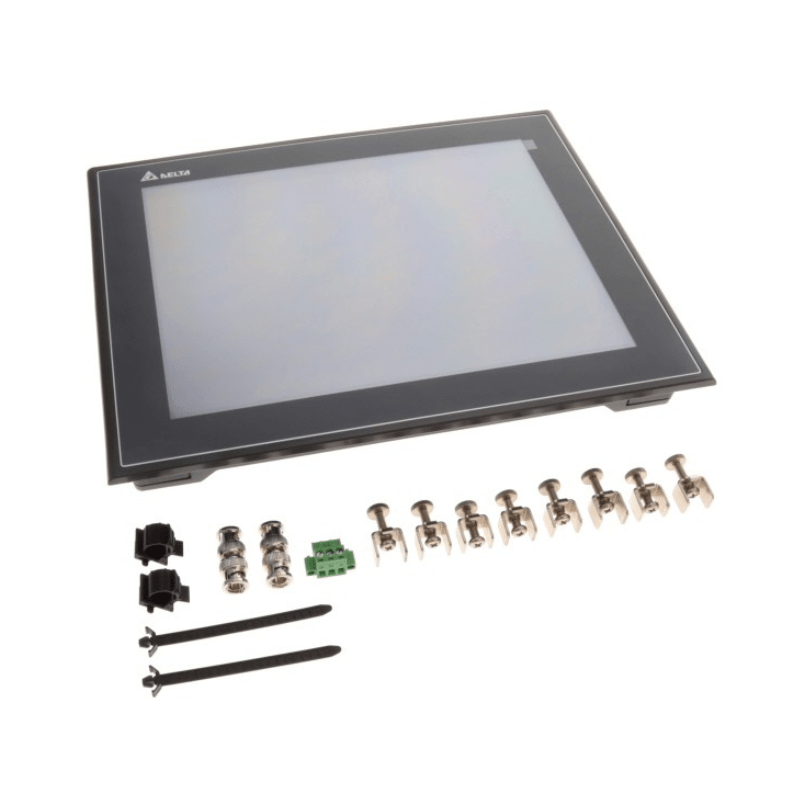

The Original New Delta DOP-112MX is a 12-inch Advanced Multimedia Human Machine Interface (HMI) from the DOP-100 Series, designed for high-performance visualization and control in industrial automation environments. Featuring a 12-inch TFT LCD display with 1024×768 resolution and 24-bit color depth, it provides clear, detailed operator interaction for packaging, textile, woodworking, and rubber/plastic machinery. Powered by a Cortex-A7 dual-core 1 GHz MCU with 8 GB ROM and 1 GB DDR3 RAM, the panel delivers fast, smooth performance for demanding HMI applications. The DOP-112MX features a narrow-frame design, dual built-in Ethernet ports, four COM ports, and multimedia capabilities including IP camera and video playback support. The IP65 / NEMA 4 / UL Type 4X rated front panel ensures protection against dust and water ingress, while the fanless natural cooling design reduces maintenance requirements. Programmed with Delta's DOPSoft software.

Core Engineering Highlights:
12-inch TFT LCD, 1024×768 pixels, 24-bit color | Cortex-A7 Dual Core 1 GHz MCU | 8 GB ROM / 1 GB DDR3 1000 MHz RAM | 4-wire resistive touchscreen (>10,000,000 operations) | Dual Ethernet (2 ports) | 4 COM ports (2× RS-232/485 + 2× RS-422/485) | USB Host + Mini USB Slave | SD card support | Backlight life: 50,000 hours | IP65 / NEMA 4 / UL Type 4X front panel | Operating temperature: 0°C to +50°C | CE / UL certified

Key Features:

• Original New Delta DOP-112MX HMI

• 12-inch TFT LCD with 1024×768 pixel resolution and 24-bit color depth

• Cortex-A7 Dual Core 1 GHz MCU for fast, responsive performance

• 8 GB Flash ROM and 1 GB DDR3 1000 MHz RAM for application storage

• 4-wire resistive touchscreen rated for over 10,000,000 operations

• IP65 / NEMA 4 / UL Type 4X rated front panel (indoor use only)

• Narrow-frame design for modern, space-efficient panels

• Dual built-in Ethernet ports (10/100 Mbps × 2, auto-sensing)

• 4 COM ports: COM1 RS-232/RS-485, COM2 RS-422/RS-485, COM3 RS-232/RS-485, COM4 RS-422/RS-485

• USB Host (Ver 2.0) and Mini USB Slave (Ver 2.0) ports

• SD card slot for data storage and project transfer

• Built-in real-time clock (RTC)

• LED backlight with 50,000 hours life and 500 cd/m² brightness

• Multi-tone buzzer (2K–4K Hz / 85 dB)

• Multi-language input function supporting 16 languages

• Multimedia functions: IP camera, network camera, video playback, VGA input

• Natural cooling (fanless) for reduced maintenance

• Power isolation, COM isolation, and Ethernet isolation for safety

Applications:

• Packaging machinery and conveying systems

• Textile and woodworking equipment

• Rubber and plastic machinery

• Industrial automation and process control

• Machine automation and control panels

• Multi-brand PLC connectivity (Omron, Mitsubishi, Siemens, and others)

Technical Specifications:

System Compatibility:

• Compatible with Delta PLCs including DVP, AS, AH series via Ethernet or serial communication

• Compatible with third-party PLCs and controllers including Omron, Mitsubishi, Siemens, and other brands supporting Modbus RTU/TCP or Ethernet communication

• Supports Delta's DOPSoft programming software for project development

• Dual Ethernet ports can be used independently for connecting to two different devices simultaneously

• USB Host port supports USB flash drives, printers, and mice for data transfer

• SD card slot for project storage and data logging

• Supports multimedia functions including IP camera, network camera, video playback, and VGA input

Related Products:

• DOP-115MX – 15-inch Advanced Multimedia HMI (larger display)

• DOP-112WX – 12-inch Advanced HMI (narrow-frame, without multimedia)

• DOP-115WX – 15-inch Advanced HMI (larger display, narrow-frame)

• DOP-110WS – 10.1-inch Advanced HMI (smaller display)

• DOPSoft – Programming software for DOP-100 series HMIs
