DRL-24V120W1EN 24V 120W DIN Rail Power Supply 5A | Delta

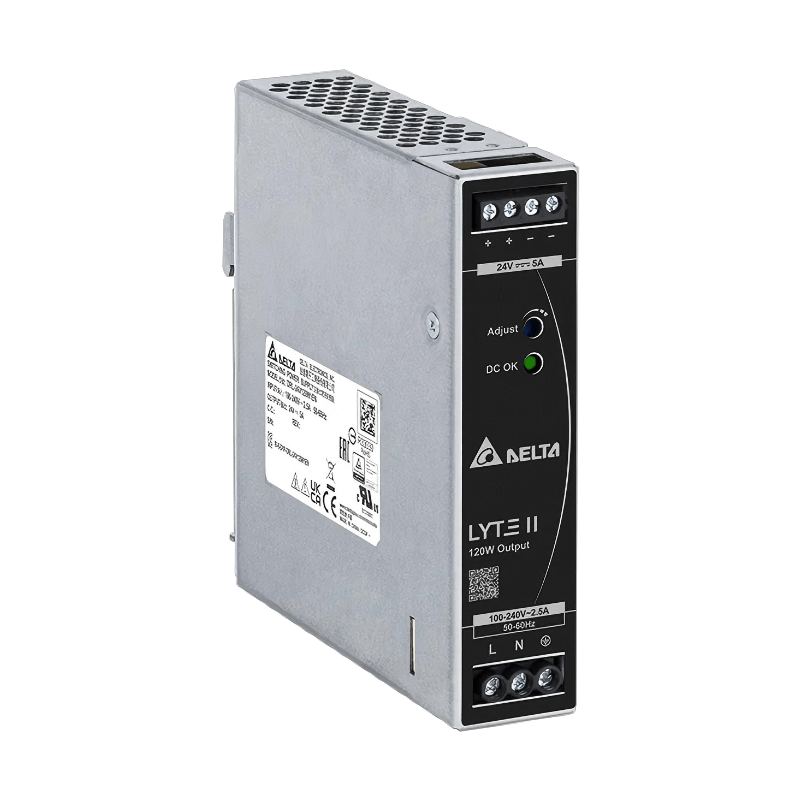

The Original New Delta DRL-24V120W1EN is a 120W DIN rail power supply from the LYTE II series, designed for reliable 24V DC power distribution in industrial automation and control panels. Accepting a universal AC input range of 90–264 Vac, it delivers 24V DC output at 5A with up to 88.5% efficiency. The slim 30mm width housing with natural convection cooling enables space-efficient panel layouts, while built-in constant current circuitry supports inductive and capacitive loads. With a wide operating temperature range of -40°C to +70°C and comprehensive protection features, it is suitable for demanding industrial environments, ITE, and laboratory applications.

Core Engineering Highlights:
120W output power | 24V DC / 5A output | Universal AC input: 90–264 Vac | Efficiency up to 88.5% | Slim 30mm width | Natural convection cooling | Isolation voltage: 3.0 kVac input to output | -40°C to +70°C operating temperature | DOE VI energy standard compliant

Key Features:

• Original New Delta DRL-24V120W1EN power supply

• 120W output power with 24V DC / 5A rated output

• Universal AC input voltage range: 90–264 Vac (47–63 Hz)

• High efficiency up to 88.5%

• Slim 30mm width for space-efficient DIN rail mounting

• Natural convection cooling (fanless) for maintenance-free operation

• Built-in constant current circuit for inductive and capacitive (reactive) loads

• Operates from -40°C to +70°C (full power at 230 Vac from -40°C to +50°C, derating above +50°C)

• Low no-load power consumption

• Compliance with DOE VI Energy Standard

• Compliance to SEMI F47 @ 200 Vac

• Adjustable output voltage

• Power Factor Correction (PFC)

• Comprehensive protection: short-circuit, overvoltage, overload, and overtemperature protection

• LED status indicator for DC OK

• Part Status: Active — currently in production

Applications:

• Industrial control panels and automation cabinets

• Machine automation and process control

• Factory automation power distribution

• ITE (commercial) equipment power supply

• Laboratory and test equipment

• Building automation systems

Technical Specifications:

System Compatibility:

• Suitable for standard industrial control panels and DIN rail mounting systems

• Compatible with Delta industrial automation equipment including PLCs, HMIs, and drives

• Can be combined with other Delta power supply products for redundant or expanded power configurations

• Output can be adjusted for specific application requirements

Related Products:

• DRL-24V75W1EN – 75W / 24V / 3.125A DIN rail power supply (lower power)

• DRL-24V240W1EN – 240W / 24V / 10A DIN rail power supply (higher power)

• DRL-24V480W1EN – 480W / 24V / 20A DIN rail power supply (higher power)

• DRL-12V120W1EN – 120W / 12V / 10A DIN rail power supply (alternative voltage)

• DRL-48V120W1EN – 120W / 48V / 2.5A DIN rail power supply (alternative voltage)

• DRP024V120W1AA – Delta DRP series 120W power supply (alternative series)
