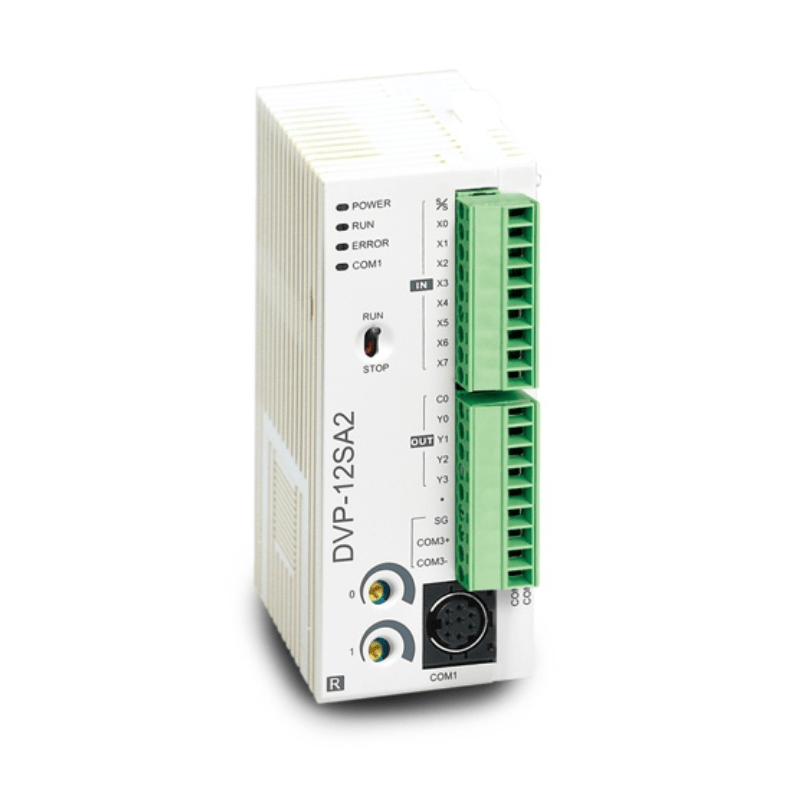

The Original New Delta DVP12SA211R is a 12-point advanced slim PLC from the DVP-SA2 series, designed for high-speed logic and motion control in compact machine automation. It provides 8 digital inputs and 4 relay outputs, with 16K steps program memory and 10K words data registers. The SA2 series adds 2-axis linear and arc interpolation functions compared to the standard SS2 series. Featuring built-in RS-232 and two RS-485 ports, high-speed pulse output up to 100 kHz, and expandability to 480 I/O points, this controller is ideal for positioning, packaging, and general-purpose industrial equipment requiring reliable relay output switching.

Core Engineering Highlights:
8 digital inputs / 4 relay outputs | 16K steps program capacity / 10K words data registers | 2-point 100 kHz + 2-point 10 kHz high-speed pulse output | Built-in RS-232 + 2x RS-485 (Modbus ASCII/RTU) | Expandable to 480 I/O points | 24 V DC power supply | 140 g weight | 0°C to +55°C operating temperature | Supports 2-axis linear and arc interpolation

Key Features:

• Original New Delta DVP12SA211R PLC

• Advanced slim design with 2-axis linear and arc interpolation functions

• 8 digital inputs (X0–X7, sink/source configurable, 24V DC)

• High-speed counter input: 100 kHz / 3 points (X0–X2), 10 kHz / 5 points (X3–X7)

• 4 relay outputs (Y0–Y3, 1.5 A per point, 5 A per COM)

• High-speed pulse output: 2 points (Y0, Y2) at 100 kHz and 2 points (Y1, Y3) at 10 kHz independent

• 16K steps program memory / 10K words data registers

• Built-in 1x RS-232 and 2x RS-485 communication ports (master/slave)

• Compatible with standard Modbus ASCII/RTU protocol and PLC Link function

• Expandable with DVP-S series left-side and right-side extension modules

• Maximum 492 I/O points (12 + 480)

• Supports analog I/O, temperature measurement, PROFIBUS/DeviceNet communication modules and single-axis motion control functions

• No battery required (program and latched data stored in flash memory)

• DIN rail mounting

Applications:

• Positioning and motion control with 2-axis interpolation

• Packaging machinery and labeling equipment

• Conveyor and material handling systems

• Electronic manufacturing and testing equipment

• General factory automation requiring relay output switching

• Applications requiring high-speed pulse output for stepper/servo control

Technical Specifications:

System Compatibility:

• Compatible with Delta DVP-S series left-side and right-side extension modules

• Supports up to 8 special expansion modules

• Expandable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions

• Programmed with Delta ISPSoft and WPLSoft software

• Compatible with Delta HMI, VFD, and servo systems via RS-232/RS-485 or Modbus

• Supports PLC Link function for multi-PLC networking

Related Products:

• DVP12SA211T – Same I/O configuration, NPN transistor outputs

• DVP12SS211R – Standard slim PLC, relay outputs (without interpolation functions)

• DVP28SA211R – 28-point version (16DI/12DO), relay outputs

• DVP04AD-S2 – 4-channel analog input extension module

• DVP04DA-S2 – 4-channel analog output extension module

• DVP06XA-S2 – 4 analog input + 2 analog output combination module

• DVP08SN11R – 8-point relay output extension module

• DVP16SP11R – 16-point digital input extension module

• DVPPS01 – Power supply, 24V DC 1A
