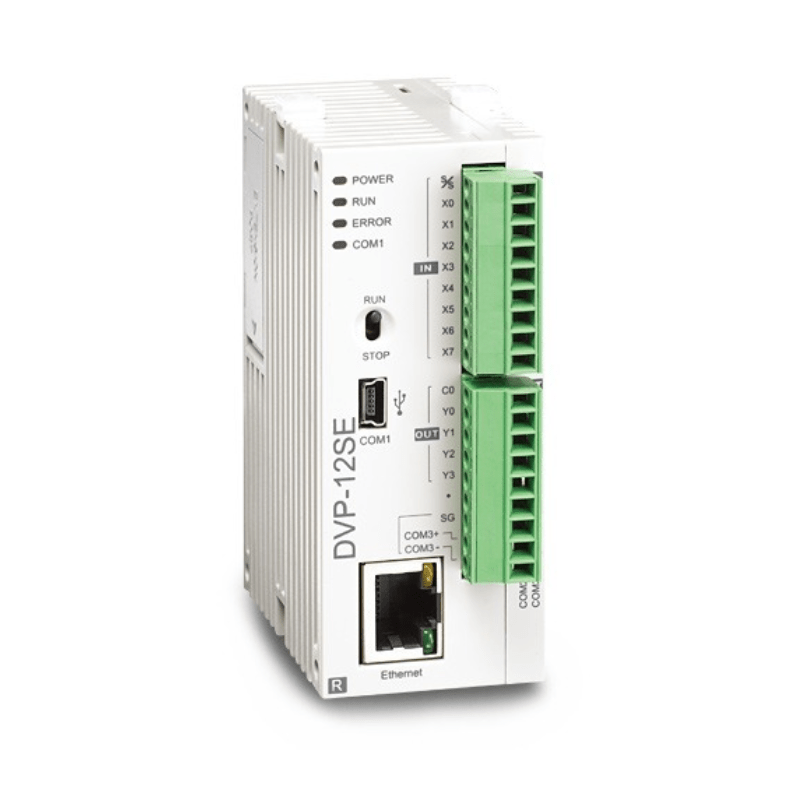

DVP12SE11R Network Type Advanced Slim PLC 8DI/4DO Relay Ethernet | Delta

The Original New Delta DVP12SE11R is a 12-point network type advanced slim PLC from the DVP-SE series, combining digital I/O, Ethernet connectivity, and relay output flexibility in a compact chassis. It provides 8 digital inputs and 4 relay outputs, with 16K steps program memory and 12K words data registers. Featuring built-in Ethernet, two RS-485 ports, and a Mini USB programming port, this controller is designed for distributed control, remote monitoring, and networked machine automation applications. The DVP12SE11R supports up to 512 I/O points via expansion, high-speed pulse input up to 100 kHz, and requires no battery for program or latched data retention.

Core Engineering Highlights:
8 digital inputs / 4 relay outputs (1.5 A per point) | 16K steps program capacity / 12K words data registers | Built-in Ethernet + 2x RS-485 + Mini USB | 4-point high-speed pulse input (100 kHz / 2 points, 10 kHz / 6 points) | Expandable to 512 I/O points | 24 V DC power supply | 1.8 W power consumption | 145 g weight | 0°C to +55°C operating temperature

Key Features:

• Original New Delta DVP12SE11R PLC

• Network type advanced slim design

• 8 digital inputs (X0–X7, sink/source configurable, 24V DC, 5mA)

• 4 relay outputs (Y0–Y3, 1.5 A per point, 5 A per COM, 250 V AC / 30 V DC)

• 16K steps program memory / 12K words data registers

• Built-in Ethernet communication port (supports Modbus TCP and EtherNet/IP adapter mode)

• 2 x RS-485 communication ports (COM2, COM3)

• 1 x Mini USB programming port (COM1)

• High-speed pulse input: 100 kHz / 2 points, 10 kHz / 6 points, 1 set of A/B phase 50 kHz

• IP Filter function acts as firewall for first-line network protection

• Supports 2-axis linear and arc interpolation

• Expandable with DVP Slim type series extension modules (digital, analog, temperature)

• Maximum 512 I/O points via expansion

• No battery required (program and latched data stored in high-speed flash memory; RTC operates up to 15 days after power off)

Applications:

• Networked machine automation and distributed control

• Remote device monitoring and production line monitoring

• Building automation and container filter (recipe application)

• Printing machinery and packaging equipment

• Electronic manufacturing and testing equipment

• General factory automation requiring Ethernet connectivity

Technical Specifications:

System Compatibility:

• Compatible with Delta DVP-SE series expansion modules (digital, analog, temperature)

• Supports up to 16 slaves via Modbus Master (32 slaves for DVP-SE series)

• Compatible with DVP-S series left-side (high-speed) and right-side (general) expansion modules

• Programmed with Delta ISPSoft and WPLSoft software

• Compatible with Delta HMI, VFD, and servo systems via Ethernet or RS-485

• Supports Modbus TCP and Modbus RTU communication protocols

Related Products:

• DVP12SE11T – Same I/O configuration, NPN transistor outputs

• DVP26SE11R – 26-point version (14DI/12DO), relay outputs

• DVP12SE11R – 12-point version, relay outputs (current model)

• DVPPS01 – Power supply, 24V DC 1A

• DVPPS02 – Power supply, 24V DC 2A

• DVP04AD-S2 – 4-channel analog input extension module

• DVP04DA-S2 – 4-channel analog output extension module

• DVP08SN11R – 8-point relay output extension module

• DVP16SM11N – 16-point digital input extension module
