DVP12SE11T Network Type Advanced Slim PLC 8DI/4DO Ethernet | Delta

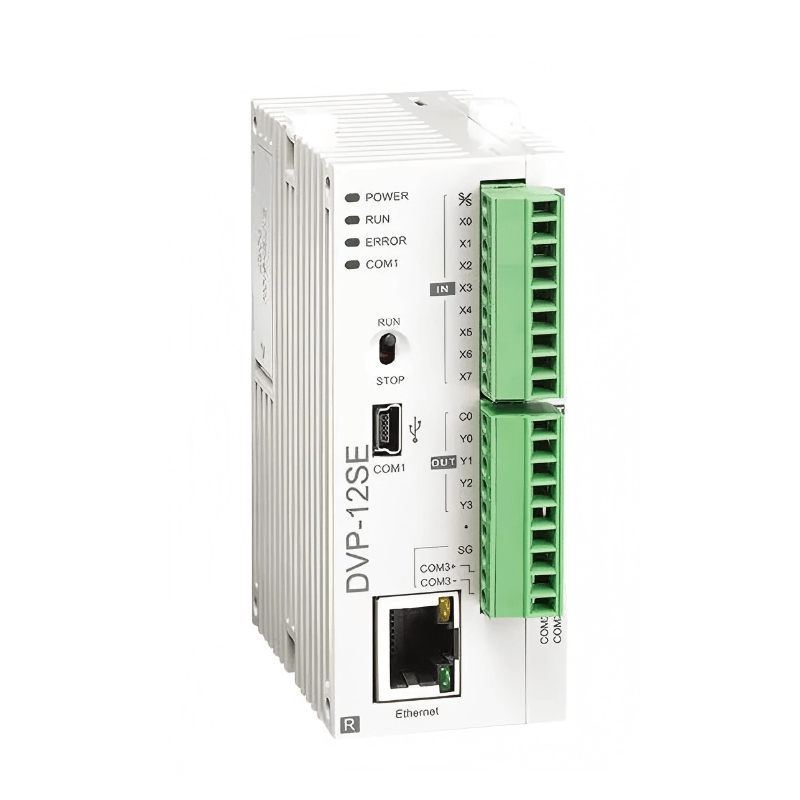

The Original New Delta DVP12SE11T is a 12-point network type advanced slim PLC from the DVP-SE series, integrating digital I/O, Ethernet connectivity, and high-speed pulse output in a compact chassis. It provides 8 digital inputs and 4 NPN transistor outputs, with 16K steps program memory and 12K words data registers. Featuring built-in Ethernet, two RS-485 ports, and a Mini USB programming port, this controller is designed for distributed control, remote monitoring, and networked machine automation applications. The DVP12SE11T supports up to 480 I/O points via expansion, 2-point 100 kHz and 2-point 10 kHz high-speed pulse output, and requires no battery for program or latched data retention.

Core Engineering Highlights:
8 digital inputs / 4 NPN transistor outputs | 16K steps program capacity / 12K words data registers | Built-in Ethernet + 2x RS-485 + Mini USB | 2-point 100 kHz + 2-point 10 kHz pulse output | Expandable to 480 I/O points | 24 V DC power supply | 1.5 W power consumption | 135 g weight | 0°C to +55°C operating temperature

Key Features:

• Original New Delta DVP12SE11T PLC

• Network type advanced slim design

• 8 digital inputs (X0–X7, sink/source configurable, 24V DC, 5mA)

• 4 NPN transistor outputs (Y0–Y3, 0.5A per point, 2A per COM)

• 16K steps program memory / 12K words data registers

• Built-in Ethernet communication port

• 2 x RS-485 communication ports (COM2, COM3)

• 1 x Mini USB programming port (COM1)

• 2-point 100 kHz + 2-point 10 kHz high-speed pulse output

• Expandable with DVP Slim type series extension modules (digital, analog, temperature)

• Maximum 480 I/O points via expansion

• No battery required (program and latched data stored in high-speed flash memory)

• DIN rail mounting (35 mm)

• LED indicators for power, run, error, and communication status

Applications:

• Networked machine automation and distributed control

• Remote monitoring and data acquisition systems

• Packaging machinery and material handling

• Electronic manufacturing and testing equipment

• General factory automation requiring Ethernet connectivity

• Applications requiring high-speed pulse output for positioning

Technical Specifications:

System Compatibility:

• Compatible with Delta DVP-SE series expansion modules (digital, analog, temperature)

• Supports up to 8 special modules + digital I/O modules on the right side

• Compatible with high-speed extension modules via left-side connection port

• Programmed with Delta ISPSoft and WPLSoft software

• Compatible with Delta HMI, VFD, and servo systems via Ethernet or RS-485

• Supports Modbus TCP and Modbus RTU communication protocols

Related Products:

• DVP12SE11R – Same I/O configuration, relay outputs

• DVP26SE11T – 26-point version (14DI/12DO), NPN transistor outputs

• DVP12SE11T – 12-point version, NPN transistor outputs (current model)

• DVPPS01 – Power supply, 24V DC 1A

• DVPPS02 – Power supply, 24V DC 2A

• DVP04AD-S – 4-channel analog input extension module

• DVP04DA-S – 4-channel analog output extension module

• DVP04PT-S – 4-channel PT100 temperature input module
