DVP20SX211T 20-Point Slim PLC 8DI/6DO Transistor 4AI/2AO | Delta

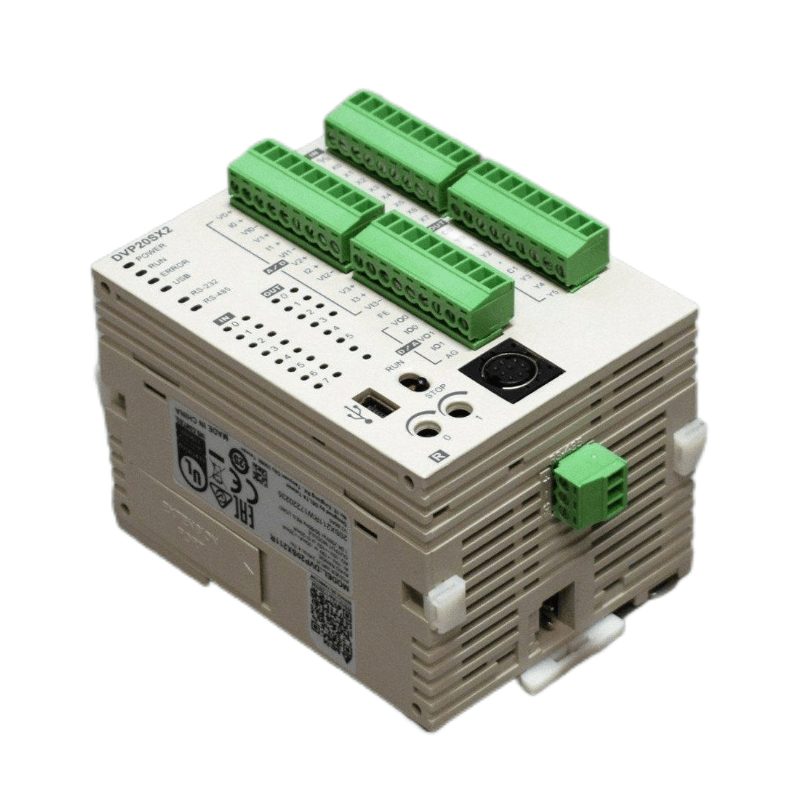

The Original New Delta DVP20SX211T is a 20-point slim-type programmable logic controller from the DVP-SX2 series, featuring built-in digital and analog I/O in a single compact unit. It provides 8 digital inputs, 6 transistor (NPN) outputs, 4 analog inputs, and 2 analog outputs, making it ideal for applications requiring both discrete and analog signal control. Powered by a 32-bit CPU with 16k steps program capacity and 10k words data registers, it delivers fast execution speeds of 0.54 μs for basic instructions. Built-in Mini USB, RS-232, and RS-485 communication ports with MODBUS ASCII/RTU master/slave support enable seamless integration into industrial networks. The built-in PID Auto Tuning function provides efficient temperature and humidity control for analog signals. The DVP20SX211T is engineered for demanding applications requiring high-speed, high-precision analog and digital control, including PID temperature/humidity control and dual-axis inverter constant-speed control.

Core Engineering Highlights:
8 digital inputs + 6 transistor (NPN) outputs | 4 analog inputs + 2 analog outputs (12-bit) | 20 MPU points, expandable via DVP-S series modules | 16k steps program capacity / 10k words data registers | Basic instruction execution speed: 0.54 μs | Built-in Mini USB + RS-232 + RS-485 (MODBUS ASCII/RTU Master/Slave) | 4 sets of 100 kHz / 10 kHz high-speed pulse output | 8 sets high-speed pulse input | Supports 2-axis interpolation (linear and circular) | 24 V DC power supply | 0°C to +55°C operating temperature | DIN rail mounting

Key Features:

• Original New Delta DVP20SX211T PLC

• 8 digital inputs (24 V DC, sink/source selectable via S/S terminal)

• 6 transistor (NPN) outputs for high-speed switching

• 4 analog inputs (12-bit) and 2 analog outputs (12-bit) built-in

• 20 MPU points expandable via DVP-S series left-side and right-side modules

• 16k steps program capacity and 10k words data register

• 32-bit CPU for high-speed processing with 0.54 μs basic instruction execution speed

• Built-in Mini USB, RS-232, and RS-485 communication ports (Master/Slave)

• Supports MODBUS ASCII/RTU protocol and DVP PLC Link

• 4 points high-speed pulse output: 2 points × 100 kHz + 2 points × 10 kHz

• 8 points high-speed pulse input: 2 points × 100 kHz + 6 points × 10 kHz

• Supports 2-axis interpolation (linear and circular)

• Built-in PID Auto Tuning function for efficient temperature and humidity control

• Battery-free design with half-month calendar retention

• Pluggable screw terminal connections for secure field wiring

• Ultra-slim form factor for space-efficient panel layouts

• DIN rail mounting for simple installation

• LED indicators for input/output status monitoring

• Part Status: Active — currently in production

Applications:

• PID temperature and humidity control

• Dual-axis inverter constant-speed control

• Factory-wide temperature (analog signal) monitoring

• Packaging machinery and conveying systems

• Material handling and logistics equipment

• Small to medium-sized OEM machinery

• Industrial process control with mixed analog and digital I/O

• HVAC systems and building automation

Technical Specifications:

System Compatibility:

• Compatible with Delta DVP-S series extension modules, including digital I/O, analog I/O, temperature, communication, and motion control modules

• Supports DVP-S series left-side and right-side expansion modules

• Supports analog modules (A/D, D/A conversion, temperature measurement)

• Compatible with Delta DOP series HMIs via RS-232 or RS-485

• Compatible with Delta VFD series drives via MODBUS communication

• Programmed with Delta WPLSoft or ISPSoft software

• Supports MODBUS RTU/ASCII master/slave communication with third-party devices

Related Products:

• DVP20SX211R – Same model with relay outputs (alternative configuration)

• DVP20SX211S – Same model with PNP transistor outputs

• DVP16SP11T – 8 inputs / 8 transistor outputs expansion module

• DVP16SP11R – 8 inputs / 8 relay outputs expansion module

• DVP04AD-S – 4-channel analog input module

• DVP04DA-S – 4-channel analog output module

• DVPEN01-SL – Ethernet communication module for DVP-S series

• WPLSoft – Programming software for Delta DVP series

• ISPSoft – Advanced programming software for Delta PLC series
