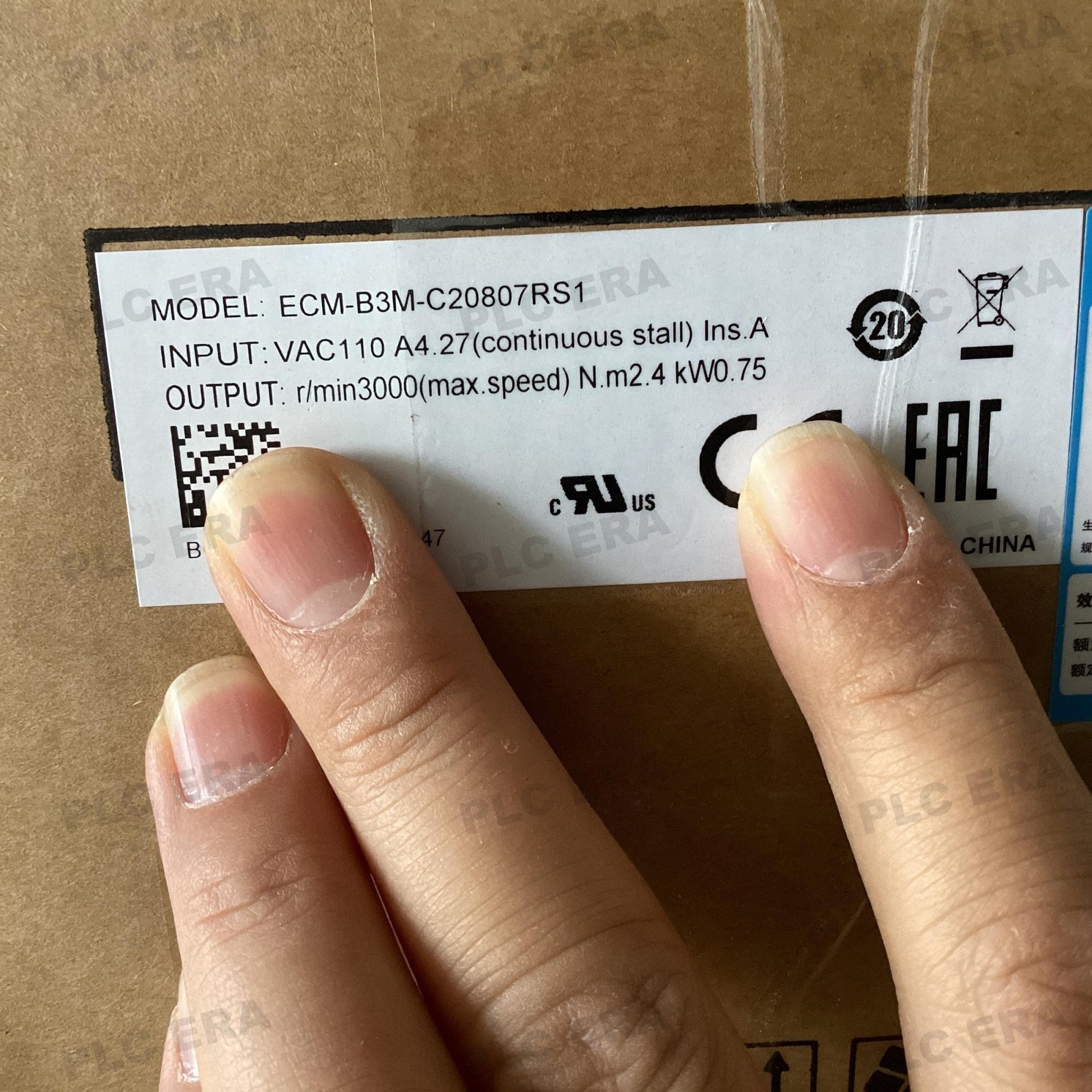

ECM-B3M-C20807RS1 750W AC Servo Motor 3000rpm 24-Bit Encoder | Delta

The Original New Delta ECM-B3M-C20807RS1 is a 750 W medium-inertia AC servo motor from the ECM-B3M series, designed for high-precision motion control in industrial automation applications. Rated 750 W (1 HP) at 220 V AC with 3000 rpm rated speed and 2.4 N·m rated torque, this medium-inertia motor delivers stable performance for loads with significant mass fluctuations. The integrated oil seal protects internal windings and encoder from lubricant and cutting fluid ingress, extending operational life in demanding machining environments. Equipped with a 24-bit incremental optical encoder, keyway shaft with tap, and an 80 mm frame size, the ECM-B3M-C20807RS1 is suitable for CNC machine tools, industrial robots, packaging machinery, and material handling systems. This model is compatible with Delta ASDA-B3 series servo drives.

Core Engineering Highlights:
750 W (1 HP) rated output | 2.4 N·m rated torque / 8.4 N·m peak torque | 3000 rpm rated speed / 6000 rpm max speed | 24-bit incremental optical encoder | 80 × 80 mm frame size | Oil seal and keyway w/ tap | 220 V AC | Medium inertia | -20°C to +60°C operating temperature | CE, cURus certified

Key Features:

• Original New Delta ECM-B3M-C20807RS1 servo motor

• Medium-inertia rotor design for stable control of high-inertia loads

• 750 W (1 HP) rated output power with 3000 rpm rated speed

• 2.4 N·m rated torque, 8.4 N·m peak torque (3.5× rated)

• Built-in 24-bit incremental optical encoder for high-resolution feedback

• Integrated oil seal prevents lubricant and cutting fluid ingress

• Keyway shaft with tap for secure mechanical coupling

• Compact 80 × 80 mm frame size for space-efficient machine integration

• Natural cooling (fanless) for reduced maintenance

• Motor length reduced by 30% compared to ECMA series

• Compatible with ASDA-B3 series servo drives

Applications:

• CNC machine tools and milling heads

• Industrial robotic arms and manipulators

• Packaging machinery and labeling systems

• Material handling and conveying systems

• Semiconductor and electronics assembly equipment

• Precision positioning systems

• Automated production lines requiring medium-inertia load handling

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-B3 series servo drives, including ASD-B3-0721-L and ASD-B3-0721-E

• Supports 24-bit incremental encoder configuration

• Compatible with Delta ASDA-Soft configuration software for tuning and setup

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Recommended power cable: ACS3-CAPW1103

• Recommended encoder cable: ACS3-CAEN1003 (3 m) / ACS3-CAEN1005 (5 m)

Related Products:

• ASD-B3-0721-L – 750 W servo drive (pulse-train control)

• ASD-B3-0721-E – 750 W servo drive (EtherCAT communication)

• ACS3-CAPW1103 – Power cable for ECM-B3M series

• ACS3-CAEN1003 – Encoder cable (3 m) for ECM-B3M series

• ACS3-CAEN1005 – Encoder cable (5 m) for ECM-B3M series

• ECM-B3M-C20807SS1 – Same motor with brake (alternative configuration)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
