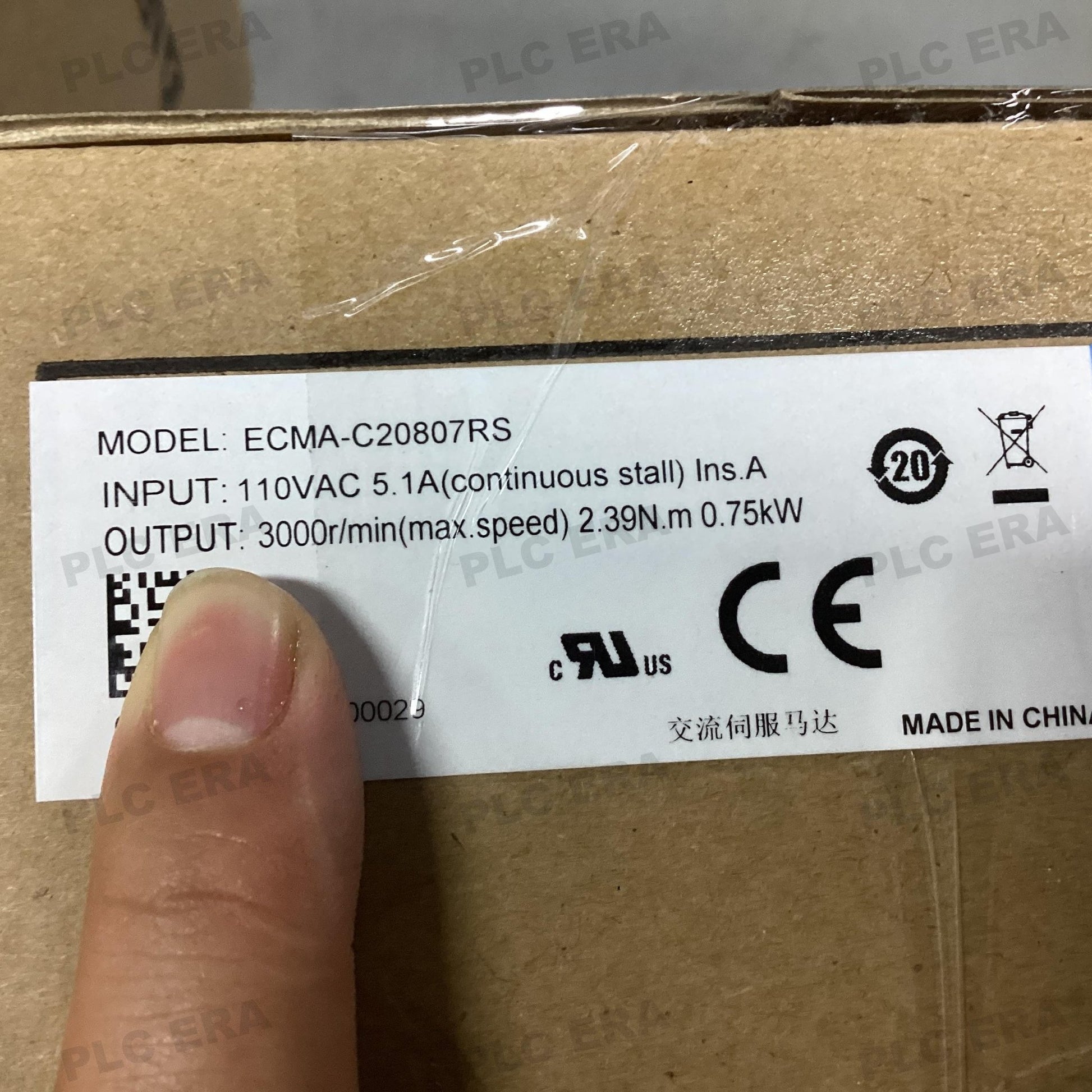

ECMA-C20807RS 750W AC Servo Motor 3000rpm 17-Bit | Delta

The Original New Delta ECMA-C20807RS is a 750 W low-inertia AC servo motor from the ECMA series, designed for high-precision motion control in general-purpose machine automation. Rated 750 W (1 HP) at 220 V AC with 3000 rpm rated speed and 2.39 N·m rated torque, this low-inertia motor delivers fast dynamic response for loads with minimal inertia. The integrated oil seal protects internal windings and encoder from lubricant and cutting fluid ingress, extending operational life in demanding machining environments. Equipped with a 17-bit incremental encoder (160,000 pulses/revolution), keyway shaft with tap, and an 80 mm frame size, the ECMA-C20807RS is suitable for packaging machinery, textile equipment, material handling systems, and small CNC applications. This model is compatible with Delta ASDA-B2 and ASDA-A2 series servo drives.

Core Engineering Highlights:
750 W (1 HP) rated output | 2.39 N·m rated torque / 7.16 N·m peak torque | 3000 rpm rated speed | 17-bit incremental encoder (160,000 ppr) | 80 mm frame size | Oil seal and keyway w/ tap | 220 VAC | Low-inertia rotor | 0°C to +40°C operating temperature | CE, cURus certified

Key Features:

• Original New Delta ECMA-C20807RS servo motor

• Low-inertia rotor design for fast acceleration and high-frequency positioning

• 750 W (1 HP) rated output power with 3000 rpm rated speed

• 2.39 N·m rated torque, 7.16 N·m peak torque (approx. 3× rated)

• Built-in 17-bit incremental encoder for high-resolution feedback (160,000 pulses/revolution)

• Integrated oil seal prevents lubricant and cutting fluid ingress

• Keyway shaft with tap for secure mechanical coupling

• Compact 80 mm frame size for space-efficient machine integration

• Natural cooling (fanless) for reduced maintenance

• Compatible with ASDA-B2 and ASDA-A2 series servo drives

• CE and cURus certified

Applications:

• Packaging machinery

• Textile machinery

• Material handling and conveying systems

• Small CNC machines and milling heads

• Automated assembly lines

• General-purpose machine control with moderate power requirements

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-B2 series servo drives (e.g., ASD-B2-0721-B)

• Compatible with Delta ASDA-A2 series servo drives (e.g., ASD-A2-0721-M)

• Supports 17-bit incremental encoder configuration

• Compatible with Delta ASDA-Soft configuration software for tuning and setup

Related Products:

• ASD-B2-0721-B – 750 W servo drive for ECMA-C20807RS

• ECMA-C20807SS – Same motor with brake (alternative configuration)

• ECMA-C21010RS – 1 kW low-inertia servo motor (higher power, common replacement)

• ECMA-E21310RS – 1 kW medium-inertia servo motor (common replacement)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
