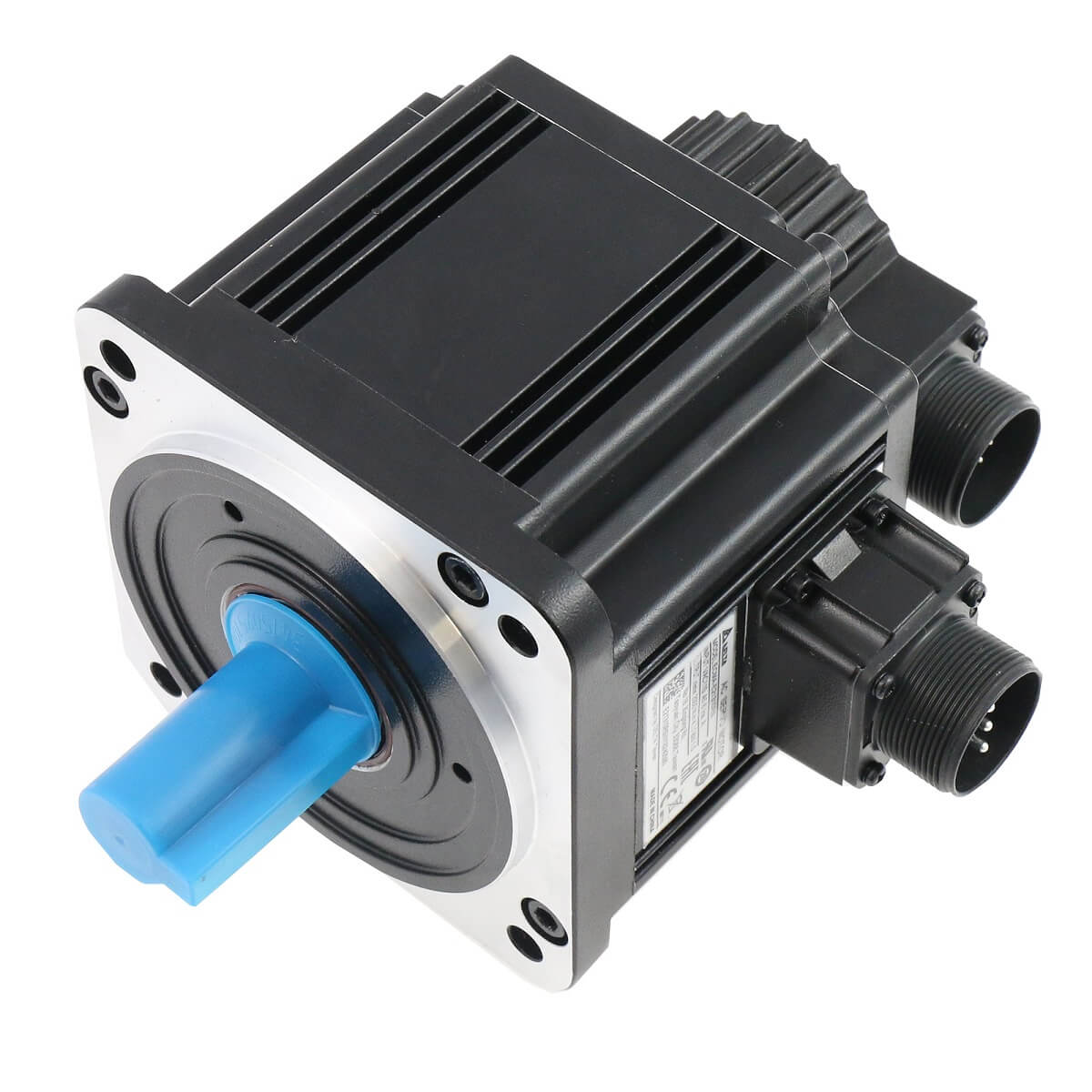

ECMA-E21310RS 1kW AC Servo Motor 2000rpm 17-Bit Encoder | Delta

The Original New Delta ECMA-E21310RS is a 1 kW medium-inertia AC servo motor from the ECMA E2 series, designed for precision motion control in industrial automation applications. Rated 1 kW (1.3 HP) at 220 V AC with 2000 rpm rated speed and 4.77 N·m rated torque, this motor delivers stable, reliable performance for loads with significant mass fluctuations. The integrated oil seal protects internal windings and encoder from lubricant and cutting fluid ingress, extending operational life in demanding machining environments. Equipped with a 17-bit incremental encoder (160,000 pulses/revolution), keyway shaft with tap, and a 130 mm frame size, the ECMA-E21310RS is suitable for CNC machine tools, industrial robots, packaging machinery, and material handling systems. This model is compatible with Delta ASDA-B2 and ASDA-A2 series servo drives.

Core Engineering Highlights:
1 kW (1.3 HP) rated output | 4.77 N·m rated torque / 14.3 N·m peak torque | 2000 rpm rated / 3000 rpm max speed | 5.6 Arms continuous output current / 16.8–16.9 Arms peak current | 17-bit incremental encoder (160,000 ppr) | 130 mm frame size | Oil seal and keyway w/ tap | 220 VAC | IP65 protection | 0°C to +40°C operating temperature

Key Features:

• Original New Delta ECMA-E21310RS servo motor

• Medium-inertia rotor design for stable control of high-inertia loads

• 1 kW (1.3 HP) rated output power with 2000 rpm rated speed

• 4.77 N·m rated torque, 14.3 N·m peak torque (approx. 3× rated)

• Built-in 17-bit incremental encoder for high-resolution feedback (160,000 pulses/revolution)

• Integrated oil seal prevents lubricant and cutting fluid ingress

• Keyway shaft with tap for secure mechanical coupling

• Compact 130 mm frame size for space-efficient machine integration

• Natural cooling (fanless) for reduced maintenance

• Compatible with ASDA-B2 and ASDA-A2 series servo drives

• IP65 protection rating for dust-tight and water-resistant operation

Applications:

• CNC machine tools and milling heads

• Industrial robotic arms and manipulators

• Heavy-duty conveyor systems

• Packaging machinery

• Machine tools and metalworking equipment

• Precision positioning systems

• Automated production lines requiring high-inertia load handling

• Material handling systems

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-B2 series servo drives (e.g., ASD-B2-1021-B)

• Compatible with Delta ASDA-A2 series servo drives (e.g., ASD-A2-1021-M)

• Supports 17-bit incremental encoder configuration

• Compatible with Delta ASDA-Soft configuration software for tuning and setup

Related Products:

• ASD-B2-1021-B – 1 kW servo drive for ECMA-E21310RS

• ASD-A2-1021-M – 1 kW servo drive (ASDA-A2 series)

• ECMA-E21310SS – Same motor with brake (alternative configuration)

• ECMA-E21315RS – 1.5 kW medium-inertia servo motor (higher power)

• ECMA-C21010RS – 1 kW low-inertia servo motor (lower inertia)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
