PFB1224UHE 120mm DC Axial Fan 24V 252.85 CFM 5500 RPM | Delta

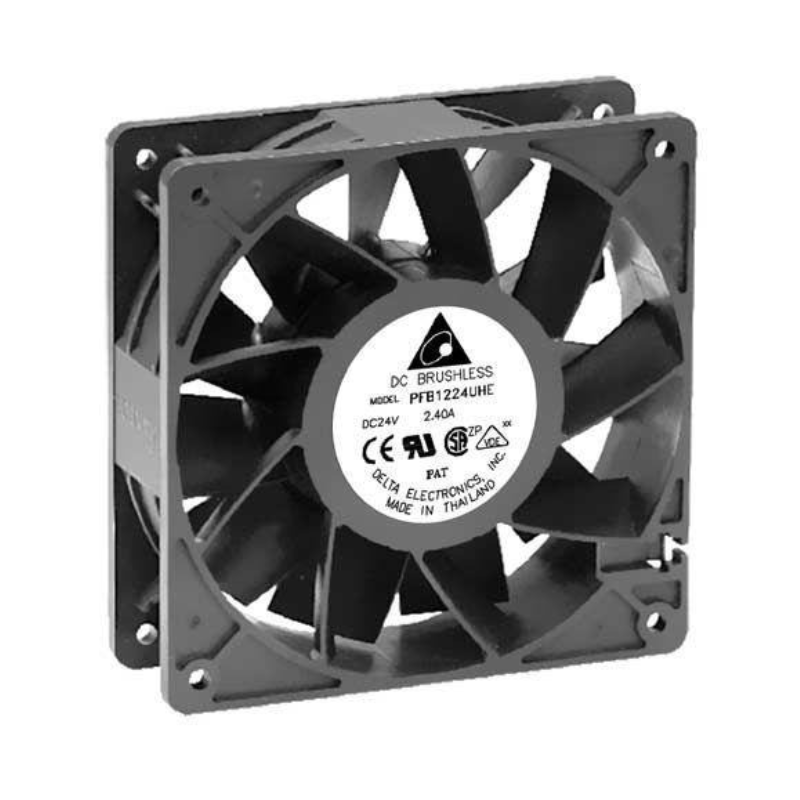

The Original New Delta PFB1224UHE is a 120mm × 120mm × 38mm DC axial fan from the PFB series, engineered for high-performance thermal management in demanding industrial and IT applications. Delivering an airflow of 252.85 CFM (7.16 m³/min) at 5500 RPM with a static pressure of 1.412 in H₂O (351.7 Pa), it provides powerful cooling for servers, power supplies, telecom equipment, and industrial control panels. The fan features a durable ball bearing system rated for 70,000 hours at 40°C, a plastic impeller and frame (UL 94V-0 flame-retardant), and locked rotor protection. Operating on 24 V DC with 2-wire lead termination, it is a reliable, maintenance-free solution for continuous-duty thermal management.

Core Engineering Highlights:
120 × 120 × 38 mm square frame | 24 V DC rated voltage | 252.85 CFM (7.16 m³/min) airflow | 5500 RPM speed | 1.412 in H₂O (351.7 Pa) static pressure | 48 W power rating | 2 A current rating | 66.5 dB(A) noise level | Ball bearing, 70,000 hours @ 40°C | –10°C to +60°C operating temperature | 380 g weight

Key Features:

• Original New Delta PFB1224UHE axial fan

• 120 mm × 120 mm × 38 mm standard square frame

• 24 V DC rated voltage with 2-wire lead termination (red positive, black negative)

• High airflow of 252.85 CFM (7.16 m³/min) at 5500 RPM

• Static pressure of 1.412 in H₂O (351.7 Pa) for high-impedance cooling

• 48 W power rating with 2 A current draw

• Ball bearing system rated for 70,000 hours at 40°C for long service life

• Plastic impeller and frame (UL 94V-0 flame-retardant)

• Locked rotor protection for added reliability

• Maintenance-free design for continuous-duty operation

• Product Status: Obsolete — no longer manufactured; available as spare part while stocks last

Applications:

• Server and data center cooling

• Power supply and UPS thermal management

• Telecom equipment and base station cooling

• Industrial control panels and cabinets

• Variable frequency drive cooling

• Medical imaging equipment

• Test and measurement instrumentation

• General-purpose forced-air cooling in electronic enclosures

Technical Specifications:

System Compatibility:

• Operates on standard 24 V DC power supply

• 2-wire lead connection simplifies integration into existing cooling systems

• Direct replacement for applications requiring a 120mm × 38mm high-speed axial fan

• Compatible with standard fan mounting hardware and finger guards for 120mm fans

Related Products:

• PFB1224UHE-F00 – Same fan with tachometer output (3-wire)

• PFB1224UHE-R00 – Same fan with locked rotor sensor (3-wire)

• PFB1224UHE-T50F – Same fan with flange mount configuration

• PFB1212UHE – 12 V DC version (same airflow and dimensions)

• PFB1248UHE – 48 V DC version (same airflow and dimensions)

• FFB1224EHE – Delta FFB series alternative (120mm × 38mm, 24V)
