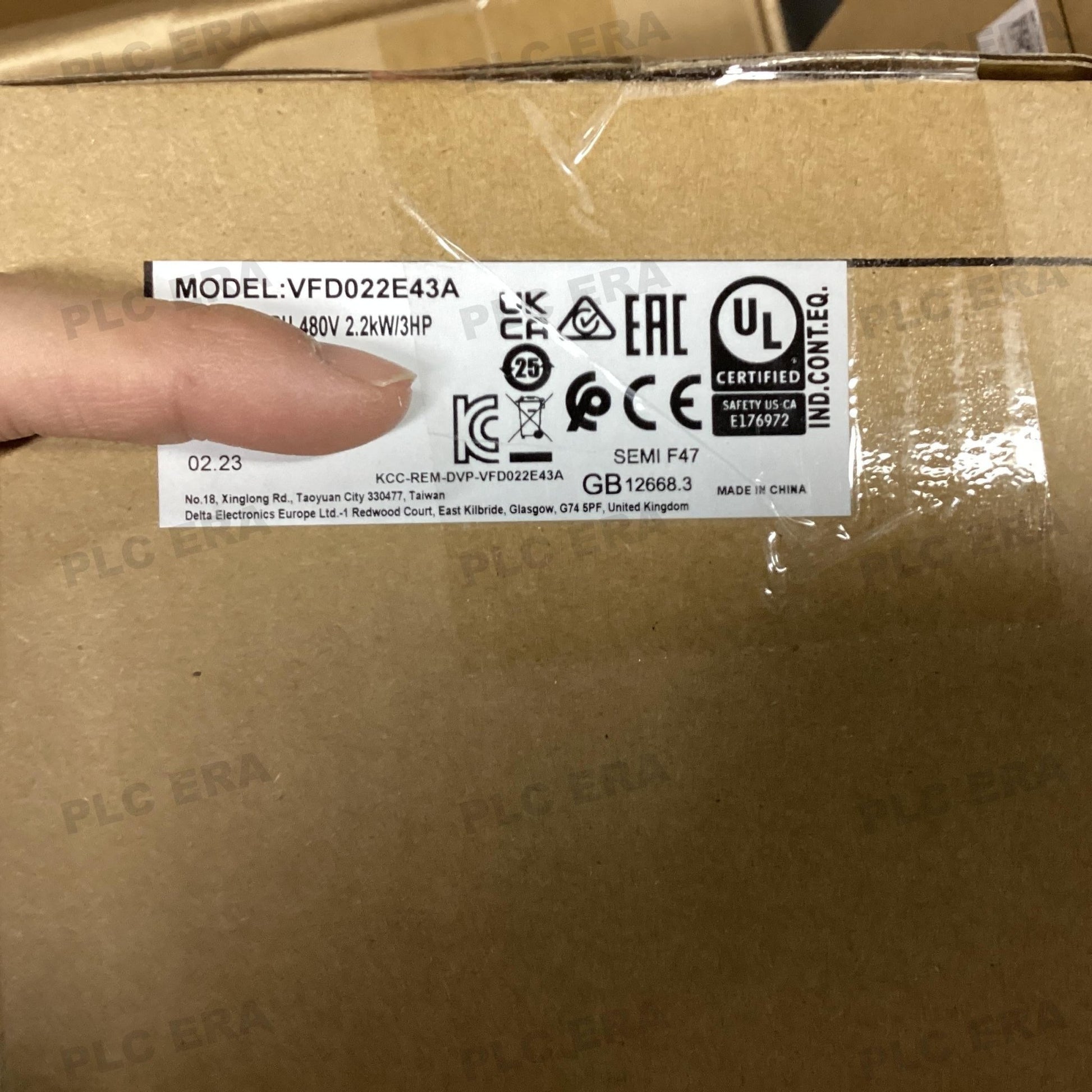

VFD022E43A 2.2kW AC Drive 460V 3-Phase Built-in PLC | Delta

The Original New Delta VFD022E43A is a 2.2 kW (3 HP) AC variable frequency drive from the VFD-E series, designed for general-purpose motor control in industrial automation systems. Featuring sensorless vector control, a built-in PLC function, and a modular design, it delivers reliable speed and torque regulation for conveyors, pumps, fans, machine tools, and material handling equipment. The drive operates on 380–480 V three-phase input with 5.5 A rated output current and supports Modbus communication via RS-485. Built-in brake chopper and EMC filter simplify installation and reduce external component requirements. The VFD-E series is known for its compact "side-by-side" installation capability, allowing space-efficient panel layouts.

Core Engineering Highlights:
2.2 kW (3 HP) rated output | 5.5 A rated output current | 380–480 V three-phase input (50/60 Hz) | 0.1–600 Hz output frequency | Sensorless vector control (SVC) | Built-in PLC function (Ladder Logic) | Built-in EMI filter | Built-in brake chopper | RS-485 Modbus communication | IP20 protection | Side-by-side installation

Key Features:

• Original New Delta VFD022E43A drive

• 2.2 kW (3 HP) rated output power with 5.5 A rated output current

• 380–480 V three-phase input, 50/60 Hz

• Output frequency range: 0.1–600 Hz

• Sensorless vector control (SVC) and V/F control with auto-tuning

• Built-in PLC function supporting simple Ladder Logic programs

• Built-in EMI filter for reduced electromagnetic emissions

• Built-in brake chopper supports external braking resistor for fast, controlled stopping

• Built-in RS-485 port supporting Modbus communication protocol

• Modular design with flexible extension cards and optional communication modules

• DC BUS sharing capability between drives

• Side-by-side installation permitted for space-efficient panel layouts

• RFI switch for use in non-grounding and high-resistance grounding systems

• Removable control panel supports remote mounting

• Compact dimensions: 100 mm (W) × 174 mm (H) × 152 mm (D)

Applications:

• Conveyors and material handling systems

• Ventilation and HVAC systems

• Pumps and water treatment equipment

• Lifting and transport mechanisms (small elevators, hoists, escalators)

• Machine tools (grinders, drills, lathes, milling machines)

• Woodworking machinery (planers, saws)

• Extrusion and food processing equipment

• Textile machinery

• Automatic doors and parking systems

Technical Specifications:

System Compatibility:

• Compatible with standard three-phase AC induction motors up to 2.2 kW. Motor compatibility should be verified based on application requirements.

• Optional communication cards available for DeviceNet, Profibus, LonWorks, and CANopen protocols

• Optional extension cards available for relay output, digital I/O, analog I/O, and PG feedback

• Optional USB communication card (CME-USB01)

• Programmed via the built-in control panel or Delta's VFDSoft configuration software

Related Products:

• VFD5A5MS43ANSAA – 2.2 kW (3 HP) MS300 series drive (MFR recommended replacement)

• VFD037E43A – 3.7 kW (5 HP) version (higher power)

• VFD015E43A – 1.5 kW (2 HP) version (lower power)

• VFD022E23A – 2.2 kW (3 HP) version, 230 V three-phase input

• VFD022EL43A – 2.2 kW (3 HP) version, VFD-EL series (light-duty)

• VFDSoft – Configuration software for Delta VFD-E series

• Optional communication card – DeviceNet, Profibus, LonWorks, or CANopen
