VFD022EL43A 2.2kW Micro AC Drive 460V 3-Phase 5.5A | Delta

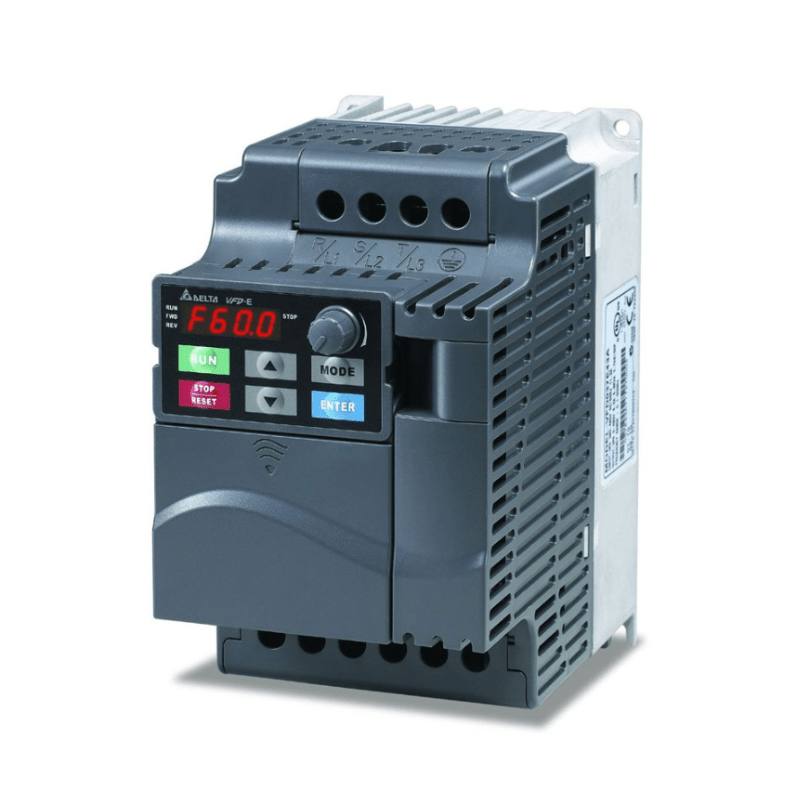

The Original New Delta VFD022EL43A is a 2.2 kW (3 HP) micro AC drive from the VFD-EL series, designed for reliable variable frequency motor control in general-purpose industrial applications. Rated at 5.5 A continuous output current with a 380–480 V three-phase input, it provides stable speed and torque regulation for pumps, fans, conveyors, and light-duty machinery. Featuring V/Hz and sensorless vector control, built-in EMI filter, RFI switch, and RS-485 Modbus communication, the VFD-EL series delivers a compact, cost-effective solution for OEM equipment and system integrators. This product has been discontinued by Delta Electronics. The recommended replacement is the VFD5A5ME43ANNAA from the VFD-ME300 series.

Core Engineering Highlights:
2.2 kW (3 HP) rated output power | 5.5 A continuous output current (constant torque) | 380–480 V 3-phase input | V/Hz and sensorless vector control | 0–600 Hz output frequency range | Built-in EMI filter + RFI switch | Built-in PID feedback control | RS-485 Modbus communication | Built-in keypad | IP20 protection | -10°C to +50°C operating temperature

Key Features:

• Original New Delta VFD022EL43A drive

• 2.2 kW (3 HP) rated output power with 5.5 A constant torque output current

• 380–480 V AC 3-phase input (nominal 380 V, 415 V, 480 V)

• Output frequency range: 0.1–600 Hz

• Control methods: V/Hz (scalar) and sensorless vector control

• Overload capacity: 150% for 60 seconds

• Built-in EMI filter and RFI switch for reduced electromagnetic interference

• Built-in PID feedback control for process regulation

• Easy DC bus sharing for side-by-side installation

• High-precision current detection and overload protection

• Built-in keypad for local parameter setting and monitoring

• RS-485 Modbus communication standard

• DC injection braking and dynamic braking transistor included

• Compact micro drive design for space-constrained panels

• DIN rail or chassis mounting

Applications:

• Pumps and water pumping stations

• Fans and ventilation equipment

• Conveyors and material handling systems

• HVAC systems and building automation

• Small processing machinery and OEM equipment

• General-purpose motor speed control and energy savings

Technical Specifications:

System Compatibility:

• Compatible with standard 3-phase induction motors up to 2.2 kW

• Compatible with Delta PLCs, HMIs, and motion controllers via RS-485 Modbus

• Supports optional communication modules for extended fieldbus integration

• Suitable for use with Delta braking resistors and AC reactors for harmonic suppression

• Programmed via built-in keypad or Delta VFDSoft configuration software

Related Products:

• VFD5A5ME43ANNAA – Delta VFD-ME300 series 2.2 kW drive (recommended replacement)

• VFD015EL43A – 1.5 kW version (lower power)

• VFD037EL43A – 3.7 kW version (higher power)

• VFD022EL23A – 2.2 kW, 230 V 3-phase version (different voltage class)

• Braking resistor – External braking resistor for high-inertia loads

• AC Reactor – For harmonic suppression and power quality improvement
