VFD055E43A 5.5kW AC Drive 460V 3-Phase IP20 | Delta

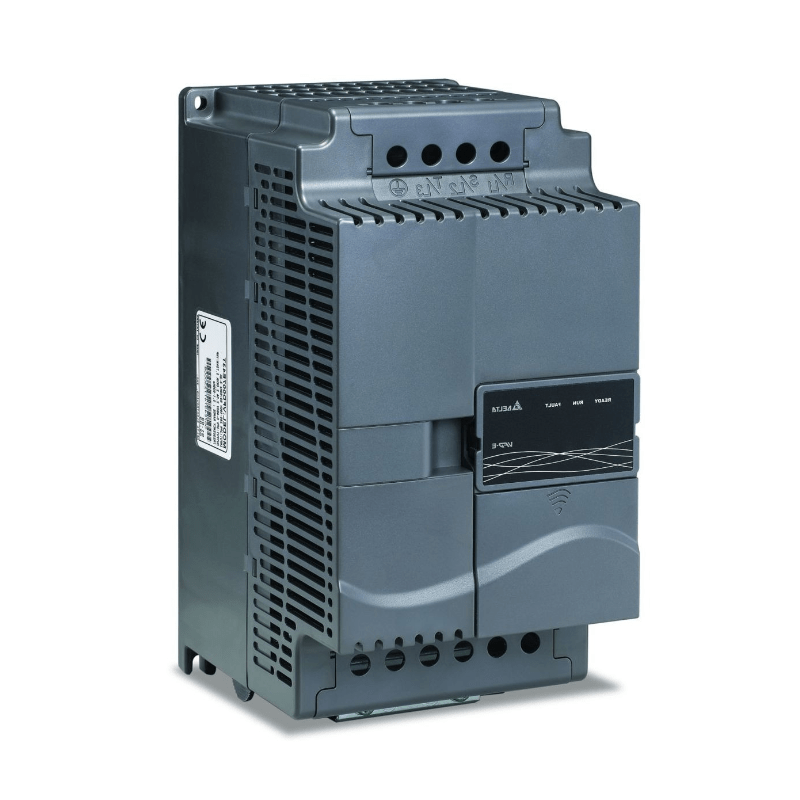

The Original New Delta VFD055E43A is a 5.5 kW (7.5 HP) AC variable frequency drive from the VFD-E series, designed for general-purpose motor control in industrial automation systems. Featuring sensorless vector control, a built-in PLC function, and a modular design, it delivers reliable speed and torque regulation for conveyors, pumps, fans, machine tools, and material handling equipment. The drive operates on 380–480 V three-phase input with 13 A rated output current and supports Modbus communication via RS-485. Built-in brake chopper and EMC filter simplify installation and reduce external component requirements. The VFD-E series is known for its compact "side-by-side" installation capability, allowing space-efficient panel layouts. Programmed via the standard control panel or optional communication cards.

Core Engineering Highlights:
5.5 kW (7.5 HP) rated output | 13 A rated output current | 380–480 V three-phase input (50/60 Hz) | 0.1–600 Hz output frequency | Sensorless vector control + V/F control | Built-in PLC function | Built-in brake chopper | Built-in EMC filter | Modbus RS-485 communication | IP20 protection | Side-by-side installation

Key Features:

• Original New Delta VFD055E43A drive

• 5.5 kW (7.5 HP) rated output power with 13 A rated output current

• 380–480 V three-phase input, 50/60 Hz

• Output frequency range: 0.1–600 Hz

• Sensorless vector control and V/F control algorithms with auto-tuning and motor parameter identification

• Built-in programmable logic controller (PLC) for standalone sequence control

• Built-in brake chopper supports external braking resistor for fast, controlled stopping

• Built-in EMC filter for reduced electromagnetic emissions

• Built-in RS-485 port supporting Modbus communication protocol

• Modular design with flexible I/O expansion and optional communication cards

• DC BUS sharing capability between drives

• Side-by-side installation permitted for space-efficient panel layouts

• Removable control panel supports remote mounting up to 5 meters

• Conformal coating on printed circuit boards for enhanced environmental protection

• Compact dimensions: 130 mm (W) × 260 mm (H) × 169.2 mm (D)

Applications:

• Conveyors and material handling systems

• Ventilation and HVAC systems

• Pumps and water treatment equipment

• Lifting and transport mechanisms (small elevators, hoists, escalators)

• Machine tools (grinders, drills, lathes, milling machines)

• Woodworking machinery (planers, saws)

• Extrusion and food processing equipment

• Textile machinery

• Automatic doors and parking systems

Technical Specifications:

System Compatibility:

• Compatible with standard three-phase AC induction motors up to 5.5 kW. Motor compatibility should be verified based on application requirements.

• Optional communication cards available for additional protocols including Profibus, DeviceNet, CANopen, and Ethernet

• Optional I/O expansion cards for additional analog and digital inputs/outputs

• Optional encoder feedback cards for closed-loop vector control

• Programmed via the built-in control panel or Delta's VFDSoft configuration software

Related Products:

• VFD075E43A – 7.5 kW (10 HP) version (higher power)

• VFD040E43A – 4.0 kW (5 HP) version (lower power)

• VFD055E23A – 5.5 kW (7.5 HP) version, 230 V three-phase input

• VFD055E43A-M – 5.5 kW (7.5 HP) version, high-performance model

• VFDSoft – Configuration software for Delta VFD-E series

• Optional communication card – Profibus, DeviceNet, CANopen, or Ethernet
