VFD13AMS43ANSAA 5.5kW Compact Vector Control Drive 460V | Delta

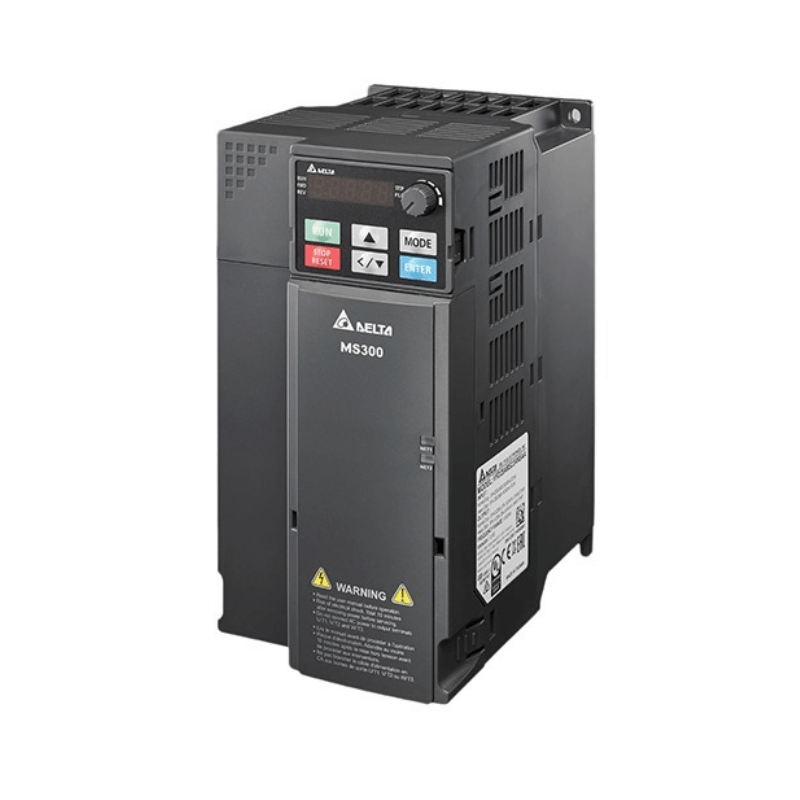

The Original New Delta VFD13AMS43ANSAA is a 5.5 kW (7.5 HP) compact vector control drive from the Delta MS300 series, designed for precise motor speed and torque control in industrial automation systems. Accepting 460 V three-phase input with 13 A heavy-duty and 15.7 A normal-duty output current, this drive delivers reliable performance for machine tools, textile machinery, woodworking equipment, printing machines, and material handling applications. The MS300 series features sensorless vector control (SVC) for both induction motors (IM) and permanent magnet motors (PM), a built-in PLC with simple programming capability, and an integrated STO (Safe Torque Off) safety mechanism. The compact Frame D1 design with IP20 protection enables space-efficient panel mounting, while built-in USB and RS-485 (Modbus) communication support easy configuration and system integration.

Core Engineering Highlights:
5.5 kW (7.5 HP) rated power | 13 A heavy-duty / 15.7 A normal-duty output current | 380–480 V three-phase input | 0–599 Hz output frequency | Sensorless vector control (IM & PM motors) | Built-in STO (Safe Torque Off) safety | Built-in PLC | Carrier frequency: 2–15 kHz (default 4 kHz) | Built-in RS-485 (Modbus) + USB | IP20 protection | Frame D1

Key Features:

• Original New Delta VFD13AMS43ANSAA drive

• 5.5 kW (7.5 HP) rated output power with 13 A heavy-duty and 15.7 A normal-duty output current

• Supports 380–480 V three-phase input

• Output frequency range: 0–599 Hz

• Sensorless vector control for induction motors (IM) and permanent magnet motors (PM)

• Integrated STO (Safe Torque Off) safety mechanism, compliant with ISO 13849-1:2015 Category 3 PL d

• Built-in PLC capacity for simple programming tasks without an external PLC

• Built-in RS-485 (Modbus) communication and USB port for data upload/download

• Communication card slot for optional CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, and PROFINET cards

• Carrier frequency: 2–15 kHz (factory default 4 kHz)

• Compact design with up to 40% size reduction compared to existing models

• Side-by-side installation permitted for space-efficient panel layouts

• Deceleration Energy Backup (DEB) function

• Multi-motor control capability

• Removable 5-digit LED keypad for remote operation

Applications:

• Machine tools and CNC equipment

• Textile machinery

• Woodworking machinery

• Printing machines

• Rewinder and slitter machines

• Drawing and coil winding machines

• Material handling systems

• General industrial automation and OEM equipment

Technical Specifications:

System Compatibility:

• Compatible with Delta MS300 series architecture

• Supports Modbus communication via built-in RS-485

• USB port for PC connection and configuration via Delta's DIA Studio software

• Optional communication cards available for CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, and PROFINET

• Removable keypad for remote operation

• Suitable for integration with Delta PLCs, HMIs, and industrial control systems

Related Products:

• VFD17AMS43ANSAA – 7.5 kW (10 HP) version (higher power)

• VFD9A0MS43ANSAA – 3.7 kW (5 HP) version (lower power)

• VFD13AMS43ENSAA – 5.5 kW (7.5 HP) version with built-in EMC filter

• VFD13AMS43AFSAA – 5.5 kW (7.5 HP) version with built-in EMC filter (alternative)

• DIA Studio – Configuration software for Delta MS300 series

• Optional communication card – CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, or PROFINET
