VFD45AMS43ANSAA MS300 Series 22kW Vector Drive 460V 3-Phase | Delta

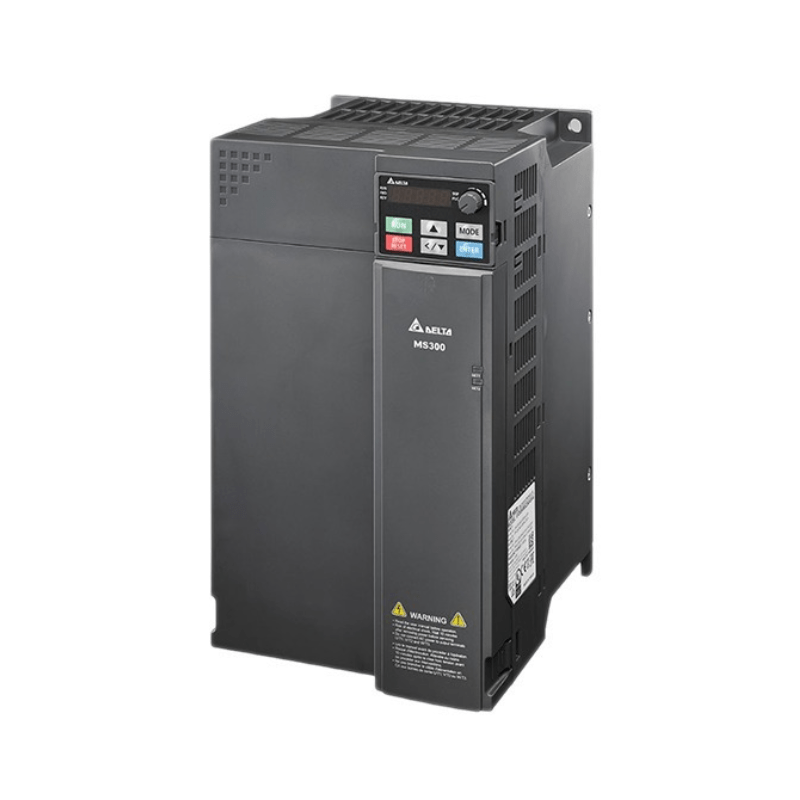

The Original New Delta VFD45AMS43ANSAA is a 22 kW (30 HP) compact vector control AC drive from the MS300 series, designed for high-performance motor control in demanding industrial environments. Rated at 45 A heavy-duty output current with a 460 V three-phase input, it delivers reliable speed and torque regulation for machine tools, packaging machinery, textile equipment, and material handling systems. Featuring open-loop vector control for both induction motors (IM) and permanent magnet synchronous motors (PM), built-in Safe Torque Off (STO) safety function, and a removable 5-digit LED keypad, the MS300 series offers a space-saving solution with flexible communication options for modern automation applications.

Core Engineering Highlights:
22 kW (30 HP) rated motor power | 45 A heavy-duty / 49 A normal-duty output current | 460 V 3-phase input | Output frequency 0–599 Hz | Open-loop vector control for IM and PM motors | Built-in Safe Torque Off (STO) SIL3 / PL e | Built-in RS-485 (Modbus) + USB | Optional EMC filter | IP20 enclosure | Frame size F1 | -20°C to +60°C operating temperature

Key Features:

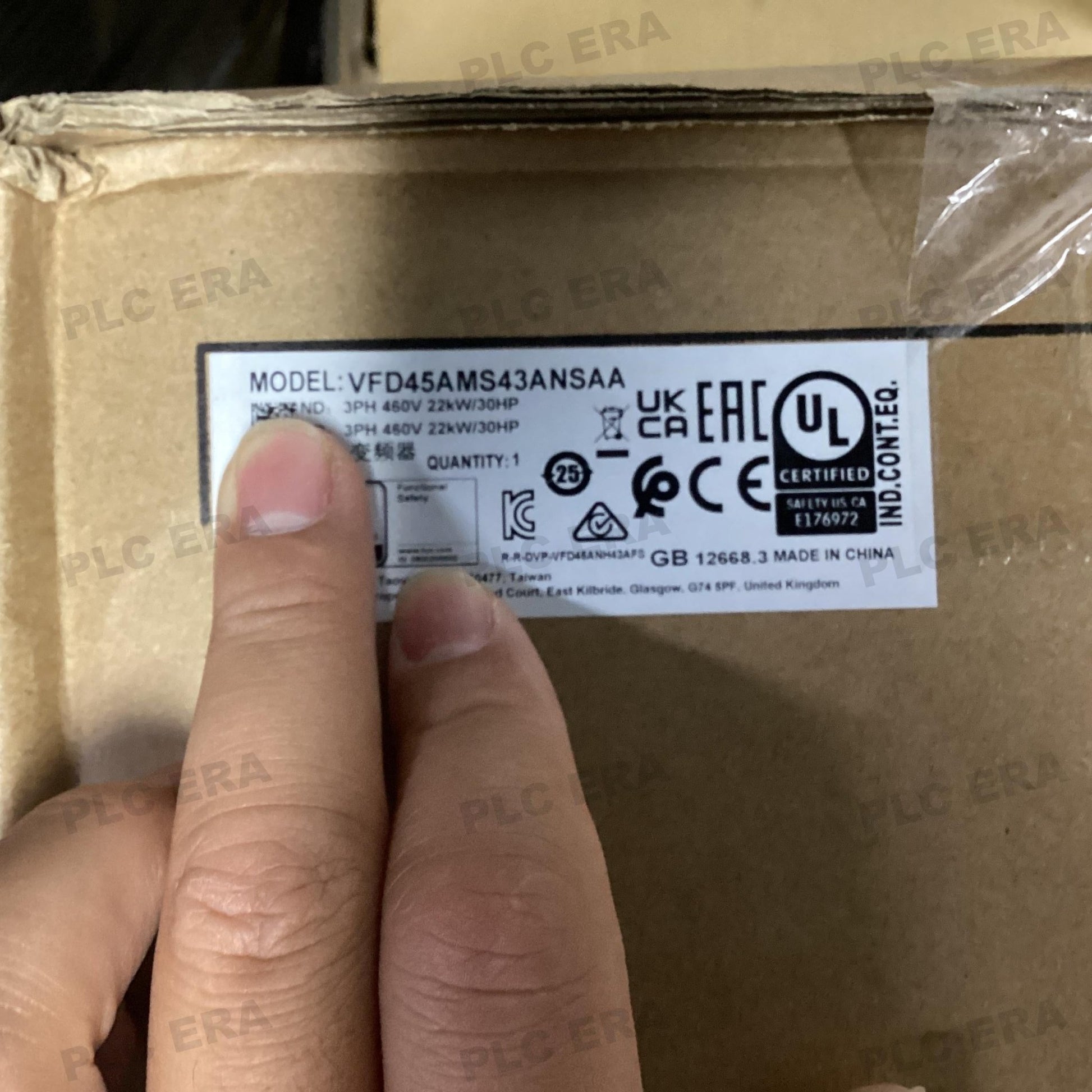

• Original New Delta VFD45AMS43ANSAA drive

• 22 kW (30 HP) motor power range, 45 A heavy-duty output current

• 460 V AC 3-phase input, 50/60 Hz

• Output frequency range: 0–599 Hz (high-speed models up to 1500 Hz)

• Open-loop vector control (SVC) for both induction motors (IM) and permanent magnet (PM) motors

• Heavy-duty overload capacity: 150% for 60 seconds, 200% for 3 seconds

• Normal-duty overload capacity: 120% for 60 seconds, 150% for 3 seconds

• Built-in Safe Torque Off (STO) safety function compliant with EN ISO 13849-1 Cat 3 PL e and IEC 61508 SIL3

• Removable 5-digit LED keypad for local control and parameter setting

• Built-in RS-485 (Modbus) and USB communication ports

• Compact book-shelf design with side-by-side DIN-rail mounting for optimized cabinet space

• Built-in brake chopper for dynamic braking

• Supports DC 24 V external power supply

• Deceleration Energy Backup (DEB) function for controlled deceleration during power loss

• Multi-motor control and pulse control capability

Applications:

• Machine tool spindles and metal processing equipment

• Industrial packaging machinery and sorting conveyors

• Heavy-duty pumping systems and HVAC air handling units

• Textile production systems and automated woodworking machinery

• Rewinder, slitter, printing, drawing, and coil winding machines

• Material handling and logistics systems

• General industrial automation requiring high-performance vector control

Technical Specifications:

System Compatibility:

• Compatible with standard 3-phase induction motors (IM) and permanent magnet synchronous motors (PM) up to 22 kW

• Compatible with Delta PLCs, HMIs, and motion controllers via built-in RS-485 (Modbus) or optional communication cards

• Optional communication cards: CMM-EIP03 (EtherNet/IP & Modbus TCP), CMM-DN02 (DeviceNet), CMM-PD01 (PROFIBUS DP), CMM-MOD01 (Modbus TCP), CMM-EC01 (EtherCAT), CMM-PN01 (PROFINET)

• Programmed and configured via Delta VFDSoft / DIA Studio software or removable keypad

• Suitable for use with Delta braking resistors, AC reactors, and EMC filters

Related Products:

• VFD32AMS43ANSAA – 18.5 kW (25 HP) version (lower power)

• VFD55AMS43ANSAA – 30 kW (40 HP) version (higher power)

• CMM-EIP03 – EtherNet/IP & Modbus TCP communication card

• CMM-DN02 – DeviceNet communication card

• CMM-PD01 – PROFIBUS DP communication card

• EMM-BPS01 – 24V DC external power supply card

• Replacement 5-digit LED keypad – Removable keypad for MS300 series

• Delta VFDSoft – Drive configuration and parameter management software
