VFD4A2MS43ANSAA 1.5kW Compact Vector Control Drive 460V | Delta

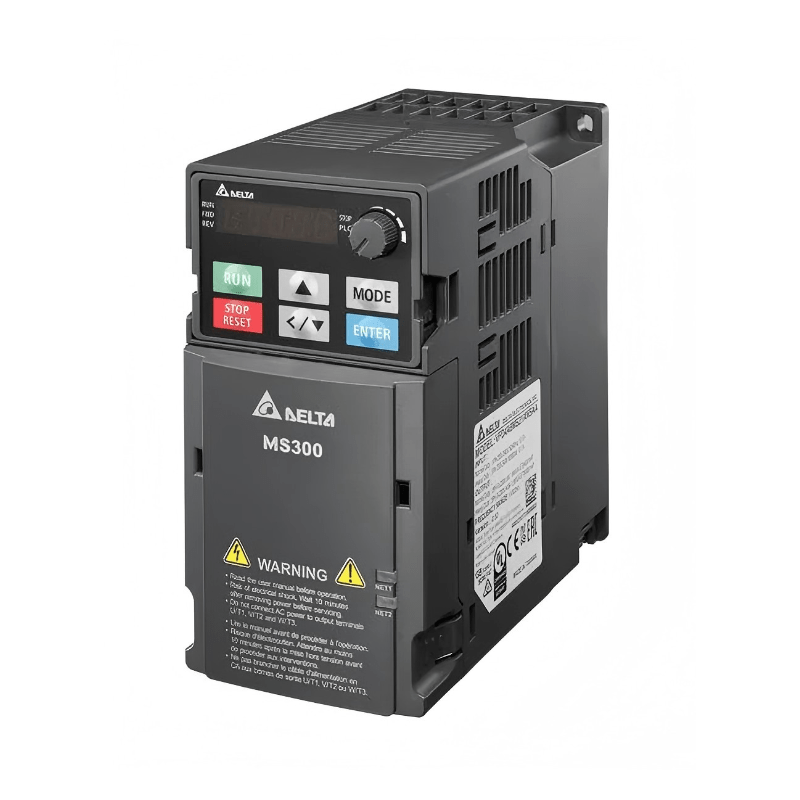

The Original New Delta VFD4A2MS43ANSAA is a 1.5 kW (2 HP) compact vector control drive from the Delta MS300 series, designed for precise motor speed and torque control in industrial automation systems. Accepting 460 V three-phase input with 4.2 A heavy-duty and 4.6 A normal-duty output current, this drive delivers reliable performance for machine tools, textile machinery, woodworking equipment, packaging lines, and fan/pump applications. The MS300 series features sensorless vector control (SVC) for both induction motors (IM) and permanent magnet motors (PM), a built-in PLC with 2K steps, a 33 kHz high-speed pulse input, and a removable keypad for flexible operation. The compact Frame B1 design with IP20 protection enables space-efficient panel mounting, while built-in USB and RS-485 communication support easy configuration and system integration.

Core Engineering Highlights:
1.5 kW (2 HP) rated power | 4.2 A heavy-duty / 4.6 A normal-duty output current | 460 V three-phase input (380–480 V range) | 0–599 Hz output frequency | Sensorless vector control (IM & PM motors) | 150% starting torque at 3 Hz | Built-in brake chopper | Built-in PLC (2K steps) | 33 kHz high-speed pulse input (MI7) | IP20 protection | Frame B1

Key Features:

• Original New Delta VFD4A2MS43ANSAA drive

• Supports open-loop control of induction motors (IM) and permanent magnet motors (PM)

• Output frequency range: 0–599 Hz (standard models)

• Heavy-duty overload: 150% for 60 seconds; Normal-duty overload: 120% for 60 seconds

• Starting torque: 150% at 3 Hz (V/f and SVC control, heavy-duty rated)

• Built-in brake chopper for dynamic braking

• Built-in PLC with 2K steps programming capacity

• Built-in 33 kHz high-speed pulse input terminal (MI7)

• Removable keypad for flexible operation and parameter copy

• Built-in USB and RS-485 communication interfaces

• Compact Frame B1 design with IP20 protection

• Optional EMC filter available

• Supports Modbus communication protocol

Applications:

• Machine tools and CNC equipment

• Textile machinery

• Woodworking machinery

• Packaging machinery

• Electronics manufacturing equipment

• Fans and pumps

• General industrial automation and OEM equipment

Technical Specifications:

System Compatibility:

• Compatible with Delta MS300 series architecture

• Supports Modbus communication via built-in RS-485

• USB port for PC connection and configuration via Delta's VFDSoft software

• Optional EMC filter available for compliance with EN 61800-3

• Removable keypad for remote operation and parameter copy

• Suitable for integration with Delta PLCs, HMIs, and industrial control systems

Related Products:

• VFD7A5MS43ANSAA – 3.7 kW (5 HP) version (higher power)

• VFD2A2MS43ANSAA – 0.75 kW (1 HP) version (lower power)

• VFD4A2MS43ENSAA – 1.5 kW (2 HP) version with built-in EMC filter

• VFD4A2MS43ANSAA – 1.5 kW (2 HP) standard model (current model)

• VFDSoft – Programming and configuration software for MS300 series

• Optional EMC filter – For EN 61800-3 compliance
