VFD7A5MS23ANSAA 1.5kW Compact Vector Control Drive 230V | Delta

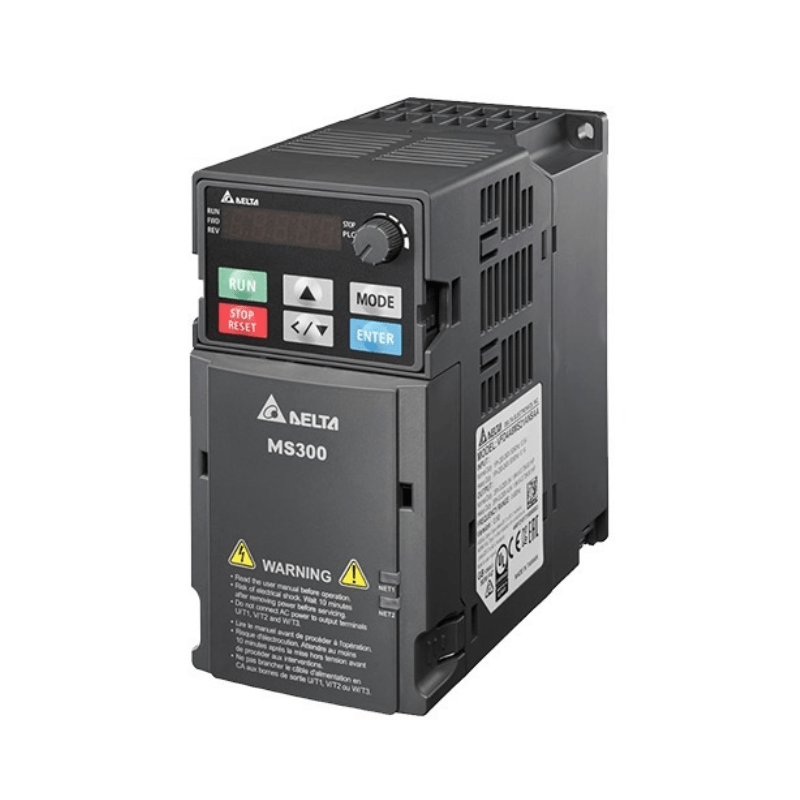

The Original New Delta VFD7A5MS23ANSAA is a 1.5 kW (2 HP) compact vector control drive from the Delta MS300 series, designed for precise motor speed and torque control in industrial automation systems. Accepting 230 V three-phase input with 7.5 A heavy-duty and 8.0 A normal-duty output current, this drive delivers reliable performance for machine tools, textile machinery, woodworking equipment, and material handling applications. The MS300 series features sensorless vector control (SVC) for both induction motors (IM) and permanent magnet motors (PM), a built-in PLC with 2K steps capacity, and an integrated STO (Safe Torque Off) safety mechanism. The compact Frame B1 design with IP20 protection enables space-efficient panel mounting, while built-in USB and RS-485 (Modbus) communication support easy configuration and system integration.

Core Engineering Highlights:
1.5 kW (2 HP) rated power | 7.5 A heavy-duty / 8.0 A normal-duty output current | 230 V three-phase input (200–240 V range) | 0–599 Hz output frequency | Sensorless vector control (IM & PM motors) | Built-in STO (Safe Torque Off) safety | Built-in PLC (2K steps) | Built-in brake chopper | Built-in RS-485 (Modbus) + USB | IP20 protection | Frame B1

Key Features:

• Original New Delta VFD7A5MS23ANSAA drive

• 1.5 kW (2 HP) rated output power with 7.5 A heavy-duty and 8.0 A normal-duty output current

• Supports 230 V three-phase input (200–240 V AC, -15% to +10%)

• Output frequency range: 0–599 Hz (standard); 0–1,500 Hz (high-speed models, V/f control for IM only)

• Sensorless vector control for induction motors (IM) and permanent magnet motors (PM)

• Integrated STO (Safe Torque Off) safety mechanism, compliant with SIL2/PLd

• Built-in PLC with 2K steps programming capacity

• Built-in brake chopper for dynamic braking

• Built-in RS-485 (Modbus) communication and USB port for data upload/download

• Communication card slot for optional CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP cards

• Dual rating design: 150% for 60 seconds for Heavy Duty (HD)

• Built-in high-speed pulse input (MI7) and output (DFM) terminals, up to 33 kHz

• New PCB coating for circuit (IEC 60721-3-3 class 3C2) suitable for harsh environments

• Multi-motor control capability (built-in four IM motor control parameters)

• Removable 5-digit LED keypad for remote operation

Applications:

• Machine tools and CNC equipment

• Textile machinery

• Woodworking machinery

• Printing machines

• Material handling systems

• General industrial automation and OEM equipment

Technical Specifications:

System Compatibility:

• Compatible with Delta MS300 series architecture

• Supports Modbus communication via built-in RS-485

• USB port for PC connection and configuration via Delta's DIA Studio software

• Optional communication cards available for CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, and EtherNet/IP

• Removable keypad for remote operation

• Suitable for integration with Delta PLCs, HMIs, and industrial control systems

Related Products:

• VFD11AMS23ANSAA – 2.2 kW (3 HP) version (higher power)

• VFD4A8MS23ANSAA – 0.75 kW (1 HP) version (lower power)

• VFD7A5MS23ENSAA – 1.5 kW (2 HP) version with built-in EMC filter

• VFD7A5MS23ANSHA – 1.5 kW (2 HP) high-speed model (0–1,500 Hz)

• DIA Studio – Configuration software for Delta MS300 series

• Optional communication card – CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, or EtherNet/IP
