E11252 Female Wirable M12 Connector 4‑Pin Angled IP68 | IFM

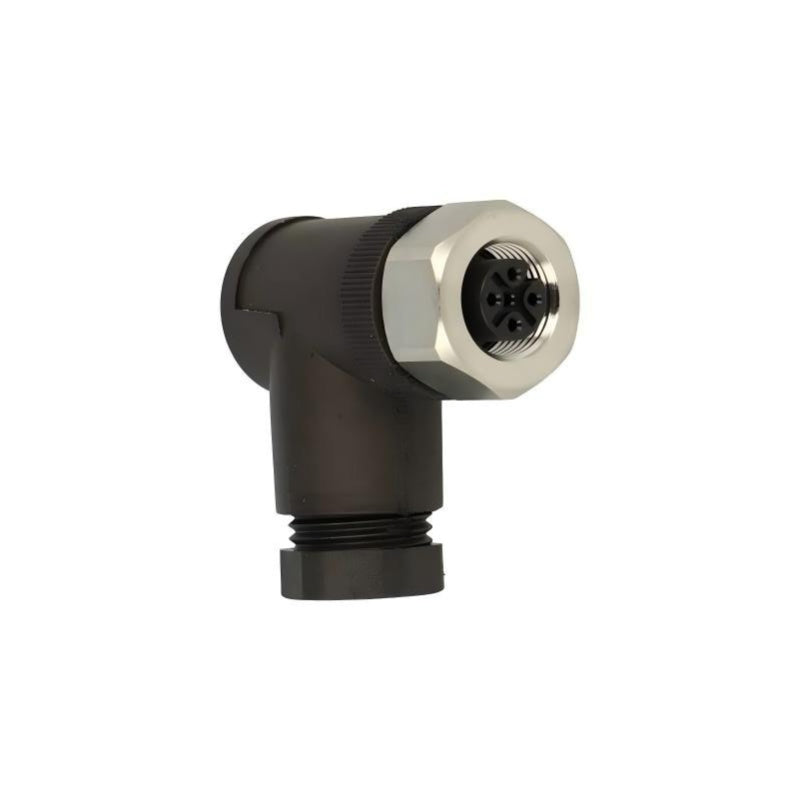

The Original New IFM E11252 Female Wirable M12 Connector is a field‑attachable, angled M12 socket designed for custom sensor‑actuator cable assembly in industrial automation environments. Featuring robust screw terminals with gold‑plated contacts, a stainless steel locking nut (1.4404 / 316L), and an IP68 protection rating, this connector provides a reliable, cost‑effective solution for on‑site wiring without specialised tooling.

Core Engineering Highlights:
M12 female socket, A‑coded | 4‑pin angled design (90°) | Screw terminals: 0.75 mm² | Cable sheath Ø 6‑8 mm | 4A current rating | <45V AC / <70V DC | Gold‑plated contacts | IP68 protection | PBT moulded body | Stainless steel locking nut (316L) | –40°C to +85°C operating temperature | 28.2g weight | Free from silicone

Key Features:

• Original New IFM E11252 connector

• M12 female socket, A‑coded, angled 90° design for space‑constrained installations

• 4‑pin configuration for standard sensor‑actuator applications

• Screw terminals accept 0.75 mm² conductors

• Cable sheath diameter range: 6‑8 mm

• Gold‑plated contacts for reliable, corrosion‑resistant electrical connections

• Stainless steel locking nut (1.4404 / 316L) for superior corrosion resistance

• IP68 protection rating for harsh industrial environments

• PBT moulded body for high mechanical strength and chemical resistance

• Wide operating temperature range: –40°C to +85°C

• Free from silicone

• 4A current carrying capacity at 40°C

• Compact and lightweight: 28.2g

• Packaging unit: 1 piece

• RoHS compliant

Applications:

• Field assembly of custom‑length M12 sensor‑actuator cables

• On‑site repair and replacement of damaged connectors without replacing entire cables

• Machine tool and conveyor system wiring

• Packaging machinery and factory automation

• Harsh environment applications requiring IP68 protection

• Food and beverage industry applications (washdown‑rated)

• Drag chain installations with reliable screw terminal connection

Technical Specifications:

System Compatibility:

• M12 male connectors on sensors, actuators, and fieldbus devices

• A‑coded M12 standard (EN 61076‑2‑101)

• 4‑pin sensor‑actuator cables

• 24V DC control systems

• PLC and distributed I/O systems

• M12 pigtails and extension cables

Typical System Architecture:
Field Device (Sensor / Actuator with M12 male connector)
↓
E11252 Female M12 Connector (field‑wired to cable)
│
├── Angled 90° design for tight spaces
├── Screw terminals for secure wiring (0.75 mm²)
├── Stainless steel locking nut (316L) for corrosion resistance
│
↓
Custom‑Length Cable (Ø 6‑8 mm)
↓
Terminal Block / PLC / Junction Box

Related Products:

• EVC001 – Female cordset, M12 to open end, 2m

• EVC002 – Female cordset, M12 to open end, 5m

• EVC003 – Female cordset, M12 to open end, 10m

• EVC551 – Female cordset, M12 to open end, 2m

• EVC811 – Female wirable connector, M12, angled, 4‑pin, screw terminal

• EVC810 – Female wirable connector, M12, straight, 4‑pin
