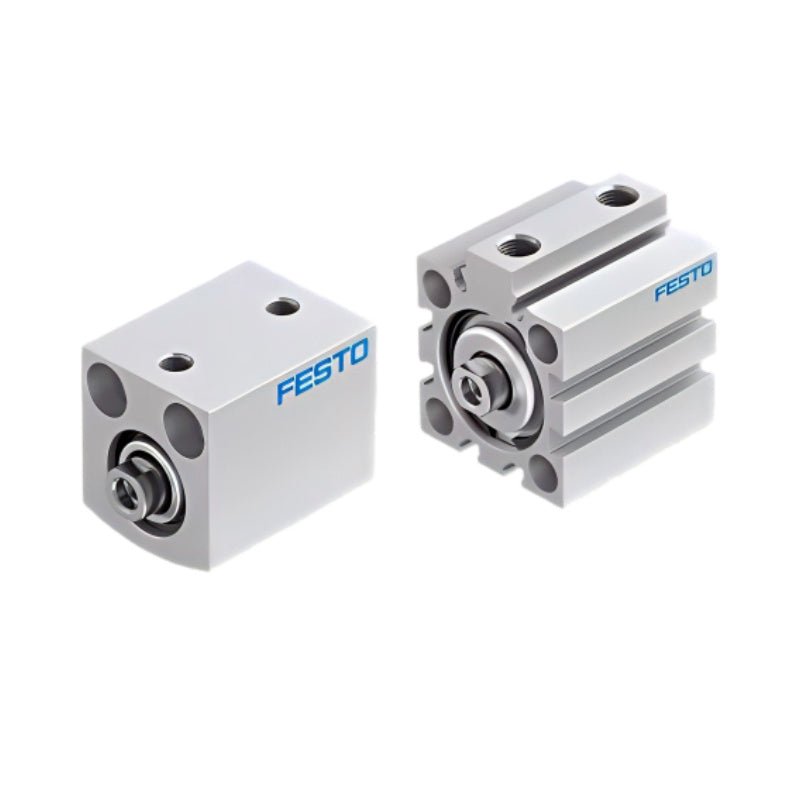

Festo ADVC-25-10-I-P-A Short-Stroke Cylinder 25mm Bore 10mm Stroke

Overview
The Festo ADVC-25-10-I-P-A (part number 188173) is a precision double-acting short-stroke cylinder from the ADVC series, designed for applications requiring high forces in confined spaces. With a 25 mm piston diameter and a compact 10 mm stroke, this cylinder is ideal for clamping, ejecting, lifting, and pressing operations in automated machinery. The cylinder features an internal thread on the piston rod for secure attachment of tooling and accessories.

Constructed with a high-alloy stainless steel piston rod and a plain anodized wrought aluminum alloy barrel, the ADVC-25-10-I-P-A offers excellent corrosion resistance (CRC 2 - Moderate corrosion stress) and long-term durability. The cylinder incorporates elastic cushioning rings (P) at both end positions to reduce impact energy and noise, minimizing mechanical stress and extending service life. The magnetic piston allows for non-contact position sensing via proximity switches, enabling accurate end-position detection and system feedback.

The cylinder operates within a pressure range of 1.5 to 10 bar and a temperature range of -20 °C to +80 °C. It delivers a theoretical force of 294.5 N advancing and 247.4 N retracting at 6 bar, with a moving mass of just 50 g (0 mm stroke). The pneumatic connection is located at M5, and the cylinder is RoHS compliant.

Key Features

• Double-Acting Short-Stroke Cylinder – Provides precise linear motion in both directions, ideal for high-force applications in confined spaces.

• 25 mm Bore x 10 mm Stroke – Compact cylinder size perfect for clamping, ejecting, and lifting tasks where space is limited.

• Internal Piston Rod Thread – M5 thread on the piston rod enables direct and secure attachment of tooling, adapters, and accessories.

• Elastic Cushioning Rings (P) – Integrated cushioning at both end positions reduces impact energy, noise, and mechanical stress, extending service life.

• Magnetic Piston – Enables non-contact position sensing via proximity switches for accurate end-position detection.

• High-Alloy Stainless Steel Piston Rod – Provides excellent corrosion resistance, surface hardness, and durability for demanding industrial environments.

• Wide Operating Range – Operates at 1.5…10 bar pressure and -20…+80 °C temperature, suitable for diverse industrial applications.

• Theoretical Force @ 6 bar – 294.5 N advancing / 247.4 N retracting for reliable actuation of moderate loads.

• Original Brand New, Within Warranty Period – Genuine Festo product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

Applications
Ideal for short-stroke clamping, ejecting, pressing, lifting, and positioning tasks in automated assembly systems, packaging machinery, material handling equipment, machine tools, and factory automation where compact double-acting actuation is required.

Package Includes

• 1 x Festo ADVC-25-10-I-P-A Short-Stroke Cylinder (188173)

• Note: Mounting accessories and proximity switches sold separately.
