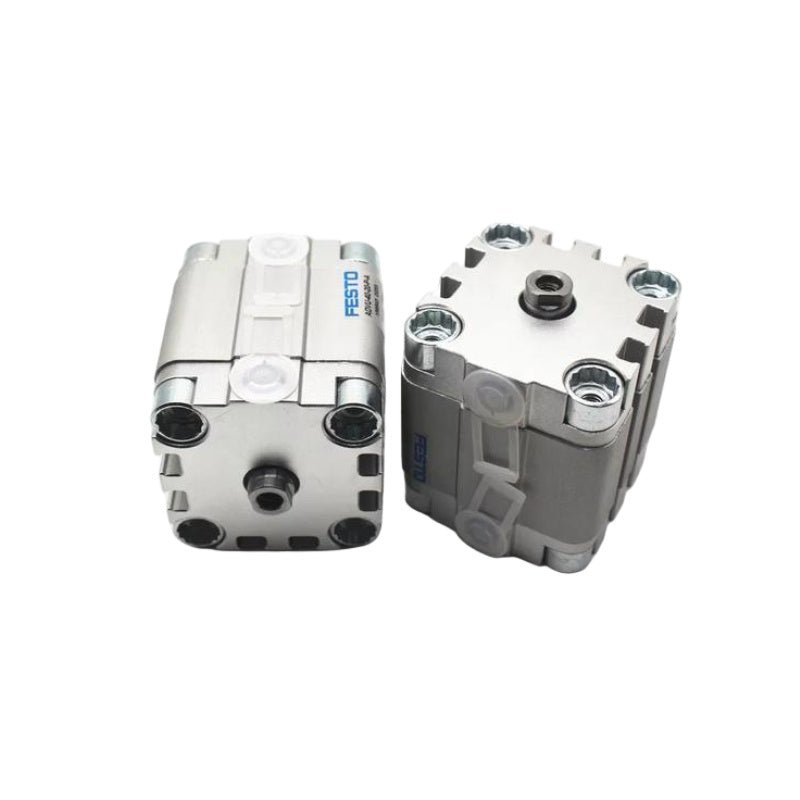

Festo ADVU-50-10-P-A 156550 Compact Cylinder Double-Acting 50mm Bore 10mm Stroke

Festo ADVU-50-10-P-A is a double-acting compact pneumatic cylinder with 50 mm bore, 10 mm stroke, and elastic cushioning rings/plates at both ends (P cushioning). It uses up to 50% less installation space than comparable ISO 15552 standard cylinders.

Applications:

• General pneumatic actuation in factory automation

• Material handling and conveyor systems

• Packaging machinery and assembly lines

• Applications with limited installation space

Core Specifications:

• Mode of operation: Double-acting

• Piston diameter: 50 mm

• Stroke: 10 mm

• Pneumatic connection: G1/8 female thread

• Operating pressure: 0.8 bar ... 10 bar (0.08 MPa ... 1 MPa, 11.6 psi ... 145 psi)

• Cushioning: P – Flexible cushioning rings/plates at both ends

• Piston-rod end: Female thread, M8

• Mounting position: Any

• Position detection: Via proximity sensor

• Ambient temperature: –20 °C … +80 °C

Advanced Specifications:

• Theoretical force at 6 bar, advance stroke: 1,178 N

• Theoretical force at 6 bar, return stroke: 1,057 N

• Impact energy at end positions: 0.64 J

• Moving mass for 0 mm stroke: 112 g

• Additional moving mass per 10 mm stroke: 16 g

• Basic weight for 0 mm stroke: 560 g

• Additional weight per 10 mm stroke: 72 g

• Logistics dimensions (L × W × H): 63 × 72 × 72 mm

• Logistics weight: approx. 598 g

• Corrosion resistance class (CRC): 2 – Moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364-B1/B2-L

• Piston rod material: High-alloy steel

• Cylinder barrel material: Wrought aluminium alloy

• Dynamic seal material: NBR, TPE-U(PU)

System Integration:

• Belongs to Festo ADVU series of compact pneumatic cylinders.

• 50% less installation space than comparable ISO 15552 standard cylinders.

• Wide range of mounting options: Through-hole mounting, foot brackets, flange, swivel, clevis.

• Compatible with Festo proximity sensors (SME/SMT-8 series) for end-position detection.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• ADVU-50-25-P-A (156553) – 50 mm bore, 25 mm stroke

• ADVU-50-50-P-A (156556) – 50 mm bore, 50 mm stroke

• SME-8-S-LED-24 (150857) – T-slot proximity sensor for end-position detection

• SGS-M10X1.25 (9262) – Rod eye for cylinder mounting
