Festo AMTE-M-H-G18 1206622 Pneumatic Muffler G1/8 92 dB(A)

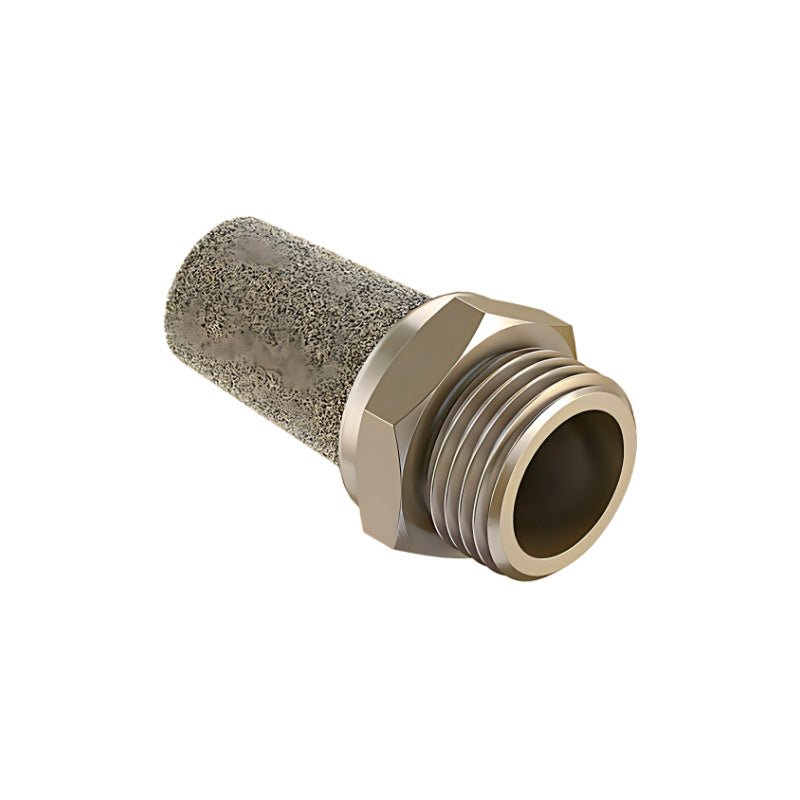

Festo AMTE-M-H-G18 is a compact pneumatic muffler (silencer) designed to reduce noise levels at the exhaust ports of valves, cylinders, and other pneumatic components. The bronze silencing insert and brass threaded plug provide durability in industrial environments. The G1/8 male thread screws directly into exhaust ports without additional sealing material and supports tool‑free installation in any mounting position.

Applications:

• Noise reduction at exhaust ports of pneumatic valves and cylinders

• Valve terminal and manifold silencing

• Industrial automation and packaging machinery

• Cleanroom environments requiring quiet exhaust

Technical Specifications:

• Pneumatic connection: G1/8 male thread (BSPP)

• Sound pressure level: 92 dB(A)

• Flow rate to atmosphere: 615 L/min

• Operating pressure: 0 … 10 bar

• Operating / media temperature: -40 °C … +80 °C

• Material, silencing insert: Bronze

• Material, threaded plug: Brass

• Mounting position: Any

• Ambient temperature: -40 … 80 °C

• Corrosion resistance class (CRC): 1 – Low corrosion stress

• RoHS compliant

Standards & Compliance:
Operating medium: Compressed air to ISO 8573‑1:2010 [7:-:-]. Lubricated operation possible (continued lubrication required if applied). LABS (PWIS) conformity: VDMA24364‑B1/B2‑L.
