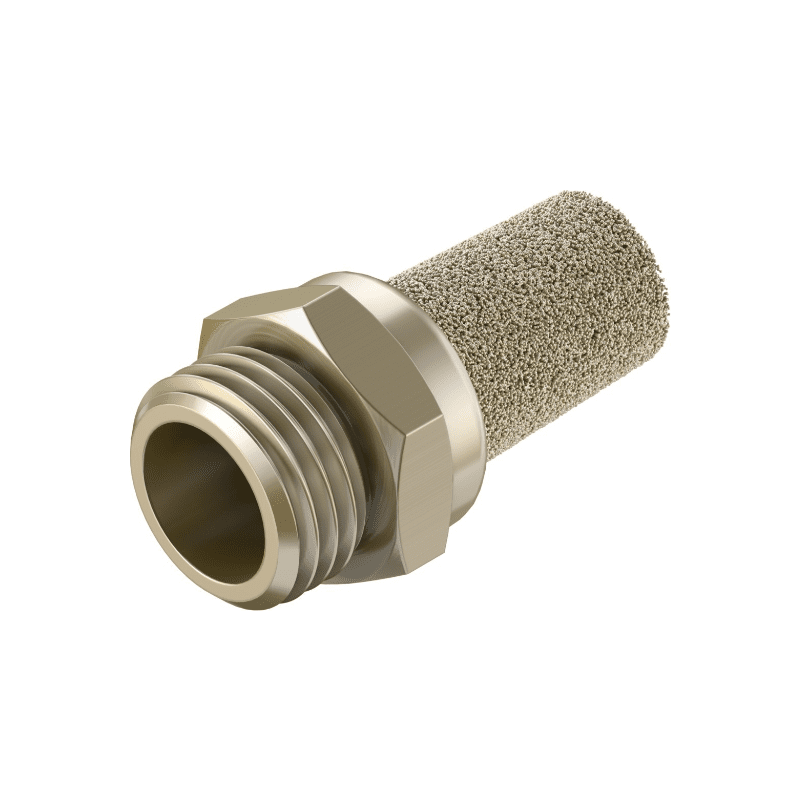

Festo AMTE-M-LH-G14 1205861 Pneumatic Silencer G1/4

Festo AMTE-M-LH-G14 is a sintered muffler designed for direct mounting on exhaust ports of pneumatic valves. Its bronze insert provides an optimal balance between high air flow capacity and effective noise reduction down to 83 dB(A).

Applications:

• Noise reduction at valve exhaust ports of pneumatic systems

• Pressure relief in silos and tank stations

• Industrial factory automation

• Packaging machinery

Core Specifications:

• Function: Pneumatic silencer

• Pneumatic connection: G1/4 (male thread)

• Noise level: 83 dB(A)

• Operating pressure range: 0 … 10 bar

• Flow rate (atmosphere): 3,140 L/min

• Mounting position: any

Advanced Specifications:

• Cushioning insert material: Bronze

• Material of stud (threaded plug): Brass

• Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]

• Lubricated operation: possible

• Ambient temperature: -40 … +80 °C

• Product weight: approx. 13 g

• Packing unit: 20 pieces

• Corrosion resistance class (CRC): 1 (low corrosion stress)

• RoHS compliant

• Containment of use restrictions: information on SCIP according to REACH regulation available

• Country of origin: Italy

System Integration:

• Belongs to the Festo pneumatic muffler AMTE product family.

• Directly screws onto exhaust ports with G1/4 thread.

• Compatible with valve systems of the VTSA series and other pneumatically actuated components.

• Tool-free installation requiring no sealing material.

Related Products:

• Compact variant (short design, same thread) → AMTE-M-H-G14 (1206623)

• Higher flow variant → AMTE-M-LH-G12 (G1/2, 12,400 L/min)

• Smaller thread variant → AMTE-M-LH-M5 (M5)

Standards & Compliance:
Manufacturer documentation for certification details.
