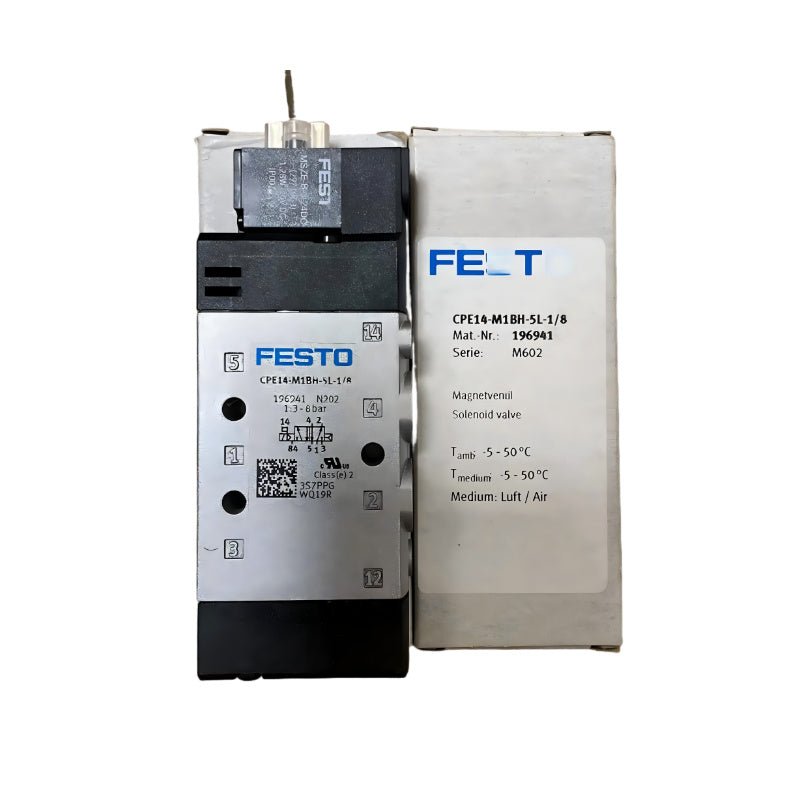

Festo CPE14-M1BH-5L-1/8 196941 5/2 Monostable Solenoid Valve

Festo CPE14-M1BH-5L-1/8 is a 5/2-way, monostable (single solenoid, pneumatic spring return), pilot-operated solenoid valve from the CPE compact series. With a construction width of 14 mm and a standard nominal flow rate of 800 l/min, it delivers high flow capacity in a compact body. Die‑cast aluminium housing with soft sealing, G1/8 female threads on all pneumatic ports, and internal pilot air supply for simplified installation. Designed for directional control of double‑acting pneumatic cylinders in industrial automation and OEM machinery.

Applications:

• Directional control of double‑acting pneumatic cylinders

• Factory automation and assembly lines

• Packaging and material handling equipment

• OEM machinery and pneumatic control panels

Core Specifications:

• Valve function: 5/2‑way, monostable (single solenoid, pneumatic spring return)

• Construction width: 14 mm

• Standard nominal flow rate: 800 l/min (DIN 1343)

• Pneumatic connection: G1/8 (female thread, all five ports)

• Operating pressure: 3 … 8 bar

• Operating voltage: 24 V DC

• Coil characteristics: 24 V DC – 1.28 W

• Permissible voltage fluctuation: –15 % / +10 %

• Switching times: on ≤ 24 ms, off ≤ 32 ms

• Duty cycle: 100% in combination with holding current reduction

• Electrical connection: 2‑pin, industry standard (Type B)

• Protection rating: IP65 (with appropriate mating plug)

• Ambient / media temperature: –5 °C … +50 °C

Advanced Specifications:

• Design: Piston gate valve with soft sealing

• Reset method: Pneumatic spring

• Type of piloting: Pilot-controlled

• Pilot air supply: Internal

• Exhaust air function: With flow control option

• Flow direction: Non‑reversible

• Lap: Overlap (positive overlap)

• Nominal width: 6 mm

• Manual override: Detenting via accessory (or non‑detenting version)

• Housing material: Die‑cast aluminium

• Seal material: NBR

• Corrosion resistance class (CRC): 2 – Moderate corrosion stress

• Certification: c UL us – Recognized (OL)

• Product weight: 95 g

• Mounting: Through‑hole

System Integration:

• Belongs to Festo CPE compact series of directional control valves.

• Mounts directly on flat surfaces via two through‑holes.

• Requires a separate 2‑pin mating plug (IP65, Type B connector) for electrical connection – not included.

• Suitable for use with Festo CPE manifold rails (multiple valve positions).

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• CPE14‑M1CH‑5L‑1/8 – 5/2 monostable, round plug connection

• CPE14‑M1BH‑5JS‑1/8 – manual override variant

• MSSD‑F (34431) – 3‑pin angled plug socket for valve connection

• NEBV‑Z4WA2L‑R‑E‑2.5‑N‑LE2‑S1 – pre‑assembled connecting cable with ZC socket
