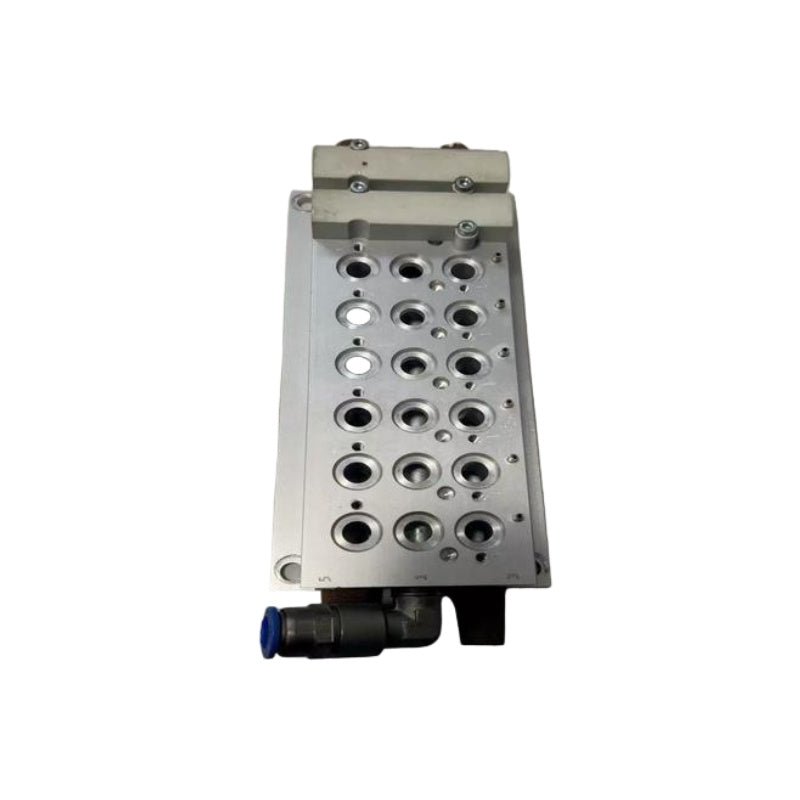

Festo CPE18-PRS-3/8-3 543840 Manifold Block for CPE18 Valves

Festo CPE18-PRS-3/8-3 is a fixed‑grid manifold block designed to supply compressed air to multiple CPE18 series pneumatic valves from a single source. Built for 3 valve positions, it streamlines pneumatic system design, cuts individual connections, and reduces potential leak points. Three G3/8 threaded connections replicate the CPE‑PRS modular concept that enables fast assembly without individual tubing. Wrought aluminium alloy construction supports corrosion resistance class CRC 2 (moderate corrosion stress) for long‑term reliability in industrial automation, packaging machinery, and assembly lines.

Applications:

• Centralised compressed air distribution for CPE18 valve terminals

• Factory automation and assembly systems

• Packaging machinery and material handling

• OEM equipment requiring modular pneumatic manifolds

Technical Specifications:

• Type: Fixed‑grid manifold block

• Series: CPE18

• Max. valve positions: 3

• Max. pressure zones: 2

• Pneumatic connections (ports 1, 3, 5): G3/8 female thread

• Operating pressure range: –0.9 bar … 10 bar

• Operating / media temperature: –5 °C … +50 °C

• Ambient temperature: –5 °C … +50 °C

• Grid dimension: 26 mm

• Mounting position: any

• Valve mounting type: internal thread

• Manifold block mounting: through‑hole

• Max. tightening torque for valve mounting: 2 Nm

• Material: wrought aluminium alloy

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

• RoHS compliant

System Integration:

• Belongs to Festo CPE18‑PRS series of modular manifold blocks for CPE valves.

• Compatible with CPE18 series 5/2‑way and 5/3‑way solenoid valves.

• Up to 2 separate pressure zones can be configured within the same manifold block.

• For detailed assembly instructions, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products (logical chain):

• CPE18-PRS-3/8-2 (543839) – 2 valve positions (lower capacity)

• CPE18-PRS-3/8-3 (543840) – current model, 3 valve positions

• CPE18-PRS-3/8-4 (543841) – 4 valve positions

• CPE18-PRS-3/8-7 (543844) – 7 valve positions for larger systems
