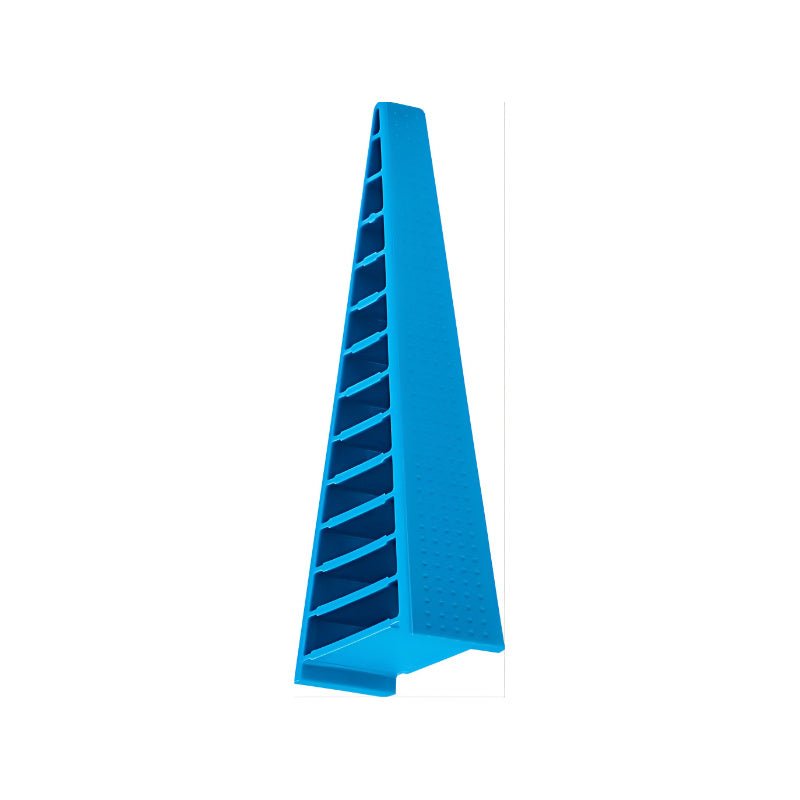

Festo DHAS-GF-120-U-BU 3998959 Adaptive Gripper Finger 120mm

Festo DHAS-GF‑120‑U‑BU is a flexible, adaptive gripper jaw for pneumatic gripper systems. It is made of TPE‑U(PU) material in blue and uses the Fin Ray Effect® – a bionic principle inspired by a fish's tail fin. This structure allows the gripper jaw to wrap gently around the workpiece instead of simply pressing against it, providing low‑vibration transport and impact‑free placement. Ideal for handling sensitive surfaces, delicate materials, and irregularly shaped objects.

Applications:

• Handling delicate or fragile components (e.g., electronics, glass, fruit)

• Pick‑and‑place and assembly automation for sensitive surfaces

• Material handling in packaging and life sciences

• Integration with Festo pneumatic grippers (e.g., HGPL, HGPD, HGPT series)

Core Specifications:

• Manufacturer part number: 3998959

• Product type: Adaptive gripper finger (replaceable jaw)

• Series: DHAS (adaptive gripper finger system)

• Material: TPE‑U(PU) – thermoplastic polyurethane, blue

• Size: 120 (length 134.5 mm, overall dimension for large workpieces)

• Suitable workpiece diameter range: 6 mm to 120 mm

• Assembly position: any

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• Ambient temperature: 10 °C … +50 °C

• Weight: approx. 29 g

Advanced Specifications:

• Operating medium: Compressed air to ISO 8573‑1:2010, vacuum

• Mounting orientation: any

• For use with: Pneumatic grippers (HGPL, HGPD, HGPT series)

• RoHS compliant, free of copper and PTFE

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

System Integration:

• Belongs to the Festo DHAS series of adaptive gripper fingers.

• Directly attaches to compatible Festo pneumatic grippers via push‑in fitting.

• The finger wraps around the workpiece, distributing gripping force gently and adaptively.

• For detailed installation instructions, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• DHAS‑GF‑60‑U‑BU – Size 60, for workpiece diameters up to 60 mm

• DHAS‑GF‑80‑U‑BU – Size 80, for workpiece diameters up to 80 mm

• DHAS‑ME‑H9‑120 (4461433) – mechanical blank jaw for custom machining

• HGPL series pneumatic gripper – parallel gripper for use with DHAS fingers
