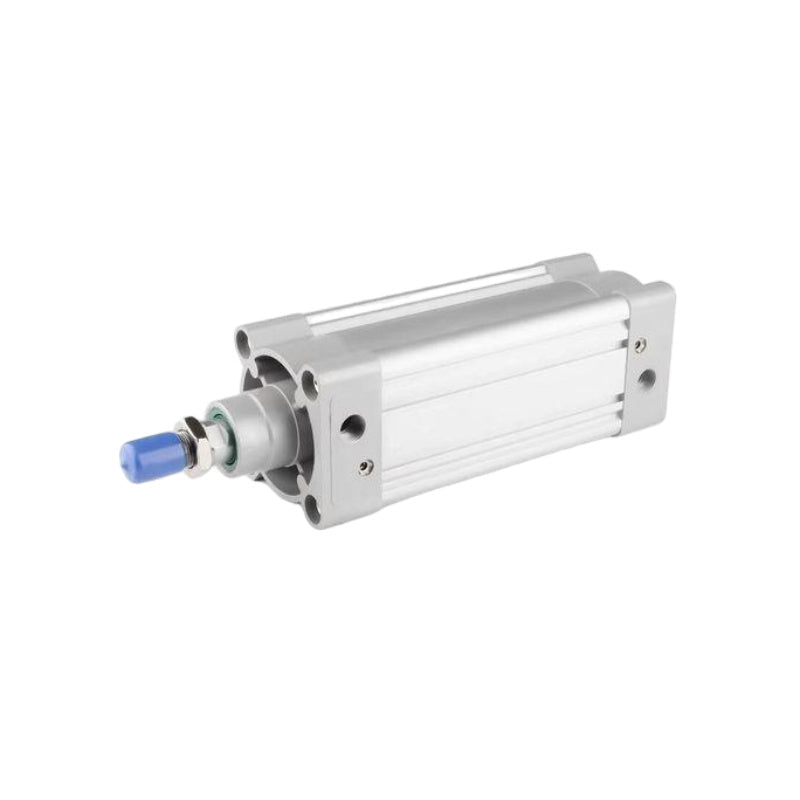

Festo DSBC-63-50-PPVA-N3 ISO Cylinder 63mm Bore 50mm Stroke Double Acting

Overview
The Festo DSBC-63-50-PPVA-N3 (part number 1383580) is a high-performance double-acting ISO standard cylinder from the DSBC series, designed for reliable linear motion control in demanding industrial automation applications. This profile cylinder conforms to ISO 15552 (ISO 6431, VDMA 24562), ensuring global interchangeability and compatibility with a wide range of mounting accessories.

With a 63 mm piston diameter and 50 mm stroke, this cylinder delivers robust force output, making it suitable for a wide variety of applications including material handling, packaging, assembly, and factory automation. The cylinder features a high-alloy steel piston rod for excellent running performance, low overall weight, and long service life.

The DSBC-63-50-PPVA-N3 is equipped with adjustable pneumatic cushioning at both ends (PPV), which reduces impact energy at the end of the stroke, minimizing noise and mechanical stress for extended service life. The cylinder barrel is made of wrought aluminum alloy with a smooth anodized finish, while the covers are constructed from coated die-cast aluminum, providing excellent corrosion resistance (CRC 2 – Moderate corrosion stress). A magnetic piston allows for non-contact position sensing via proximity switches mounted in the integrated sensor slots along the cylinder body.

The cylinder operates over a wide pressure range of 0.4 to 12 bar and a temperature range of -20 °C to +80 °C, making it suitable for diverse industrial environments. The pneumatic connection is G3/8, and the piston rod features a M16x1.5 male thread.

Key Features

• Double-Acting Operation – Provides powered motion in both directions for precise control over extend and retract strokes.

• ISO 15552 Compliant – Conforms to international standards (ISO 15552, ISO 6431, VDMA 24562), ensuring global compatibility and consistent mounting dimensions.

• 63 mm Bore x 50 mm Stroke – Compact cylinder size ideal for medium-force applications requiring reliable linear motion.

• Adjustable Pneumatic Cushioning at Both Ends (PPV) – Reduces impact energy at the end of the stroke, minimizing noise and mechanical stress for extended service life.

• High-Alloy Steel Piston Rod – Provides excellent corrosion resistance, surface hardness, and durability for demanding industrial environments.

• Profile Barrel Design – Optimized for high rigidity and low weight, suitable for dynamic applications.

• Wide Operating Range – Operates at 0.4…12 bar pressure and -20…+80 °C temperature, suitable for diverse industrial environments.

• Theoretical Force @ 6 bar – 1870 N advancing / 1682 N retracting for reliable actuation of moderate loads.

• Position Sensing Capability – Equipped with a magnetic piston for non-contact position detection via proximity switches.

• Corrosion Resistance Class CRC 2 – Suitable for applications with moderate corrosion stress.

• Original Brand New, Within Warranty Period – Genuine Festo product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

Applications
Ideal for linear motion control in factory automation, packaging machinery, material handling, pick-and-place systems, assembly lines, and general industrial automation. Suitable for applications such as clamping, ejecting, lifting, and pressing where reliable double-acting actuation is required.

Package Includes

• 1 x Festo DSBC-63-50-PPVA-N3 ISO Cylinder (1383580)

• Note: Mounting accessories, proximity switches, and fittings are sold separately.
