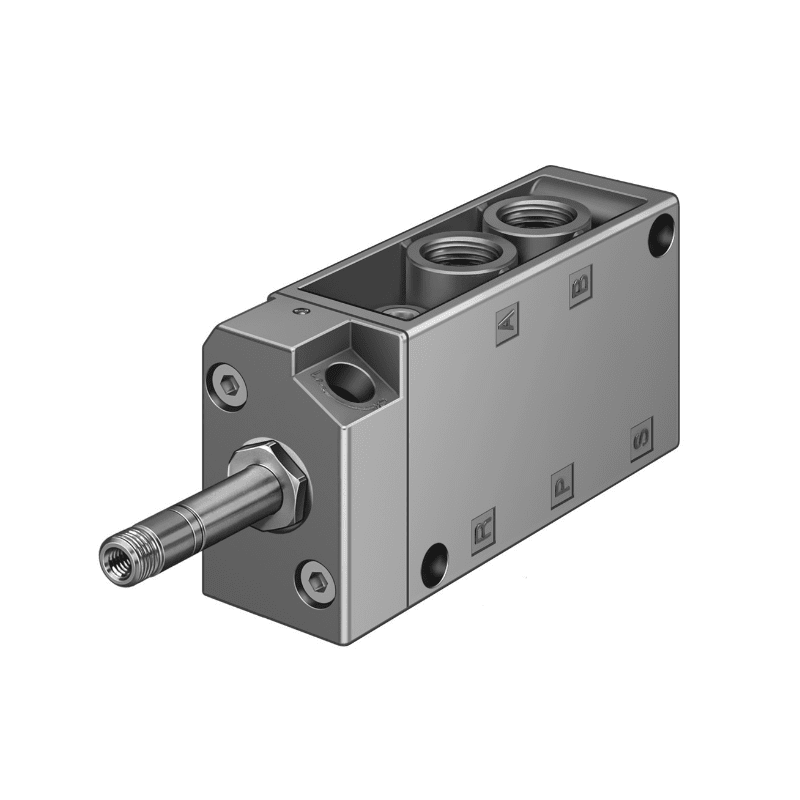

Festo MFH-5-1/4 6211 Tiger Classic 5/2 Pneumatic Solenoid Valve

The Festo MFH-5-1/4 is a 5/2-way, single-solenoid pneumatic directional control valve from the Tiger Classic series. It features a poppet valve design with a mechanical spring return (monostable) and threaded G1/4 ports for all connections. The 24V DC coil is ordered separately. Suitable for individual inline installation or manifold mounting on PAL strips and PRS blocks.

Applications:

• Directional control for double-acting pneumatic cylinders

• Material handling and conveyor systems

• Packaging machinery and automation lines

• General factory automation and industrial equipment

Core Specifications:

• Valve function: 5/2-way, monostable (single solenoid, spring return)

• Actuation type: Electrical (via F‑series coil, to be ordered separately)

• Standard nominal flow rate: 1,000 l/min (standardised to DIN 1343)

• Operating pressure: 2.2…8 bar

• Pneumatic connection ports: G1/4 (all five ports)

• Nominal size: 7 mm

• Width: 30.5 mm

• Design: Poppet seat

• Reset method: Mechanical spring

• Manual override: Detenting

• Degree of protection: IP65

Advanced Specifications:

• Type of piloting: Pilot-controlled

• Overlap: Underlap

• Switching time off: 29 ms / on: 9 ms

• b-value: 0.19 / C-value: 4.49 l/sbar

• Max. positive test pulse (0 signal): 2,200 µs

• Max. negative test pulse (1 signal): 3,700 µs

• Exhaust-air function: Throttleable

• Sealing principle: Soft

• Mounting position: Any

• Pilot exhaust port: M5

• Corrosion resistance class (CRC): 1 – Low corrosion stress

• Medium temperature: -10…60 °C

• Ambient temperature: -5…40 °C

• Storage temperature: -20…60 °C

• Electrical connection: Via F coil (F‑series solenoid core diameter 8mm)

• Solenoid core diameter: 8 mm

• Housing material: Die-cast aluminium

• Material seals: NBR

• Product weight: 290 g

• Logistics dimensions (L × W × H): 135 × 60 × 35 mm

Compliance:
Authority approval: c UL us – Recognized (OL). Note on materials: Conforms to RoHS. Refer to manufacturer official documentation for detailed certification and compliance information.

System Integration:

• This valve belongs to the Festo Tiger Classic family of directional control valves.

• Electrical actuation requires an F‑series (8mm core diameter) solenoid coil, e.g., MSFG‑24/42‑50/60 (4527, 24V DC / 42V AC).

• Coil mating socket must be ordered separately (DIN 43650‑B / EN 175301‑803).

• Supports manifold mounting on PAL strips or PRS blocks with up to six valve positions.

• For detailed installation drawings, pneumatic circuit diagrams, and wiring, refer to the product hardware manual (Festo catalog sheet, support portal page).

Related Products (logical chain):

• MFH‑5‑1/8 (part of the same Tiger Classic series, G1/8 ports, lower flow rate)

• Current model → MFH‑5‑1/4 (6211) (G1/4 ports, 1,000 l/min)

• Higher flow alternative (G1/4 ports) → MFH‑5‑1/4‑B (15901, 1,300 l/min)

• Higher flow larger port variant → MFH‑5‑1/2 (G1/2 ports, higher flow)

• Accessory (solenoid coil) → MSFG‑24/42‑50/60 (24V DC / 42V AC)

• Accessory (mating socket) → 3‑pin plug socket, DIN 43650‑B / EN 175301‑803
