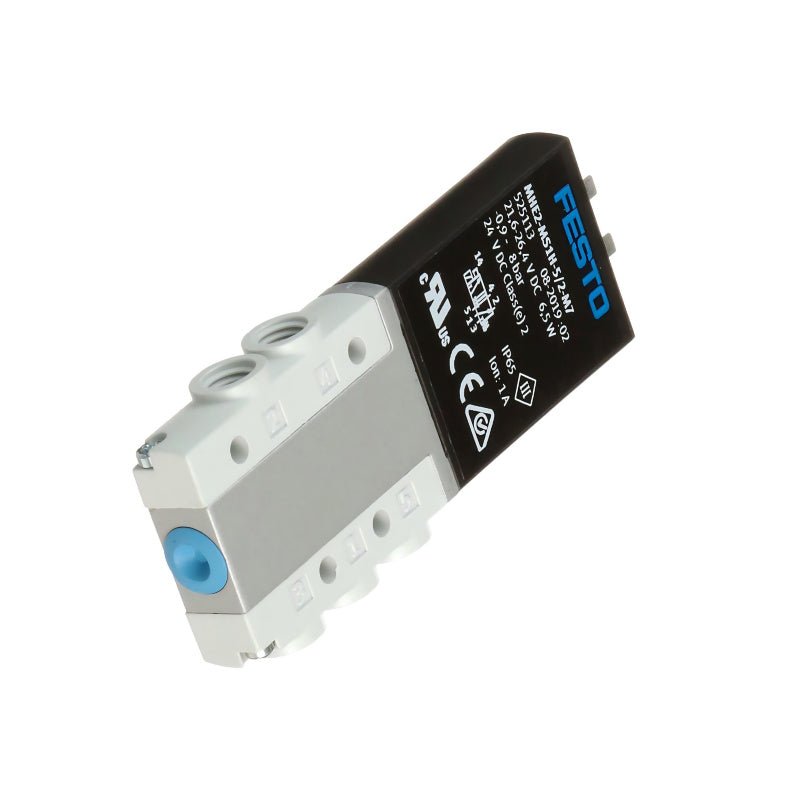

Festo MHE2-MS1H-5/2-M7 525113 5/2 Solenoid Pilot Valve

Festo MHE2-MS1H-5/2-M7 is a 5/2-way, monostable (single solenoid, mechanical spring return), directly actuated poppet valve from the MHE2 compact series. Its ultra-slim 10 mm width is designed for space-constrained control cabinets and manifold assemblies. The valve is equipped with M7 threaded pneumatic connections and a 24V DC solenoid with a power consumption of 6.5W (peak) / 1.625W (hold), delivering a standard nominal flow rate of 90 l/min to efficiently control double-acting pneumatic cylinders. The IP65 rating ensures reliable operation in demanding industrial environments.

Applications:

• Controlling double-acting pneumatic cylinders for automation tasks

• High-speed assembly and packaging machines requiring ultra-fast cycles

• Pick-and-place systems, test rigs, and rotary indexing tables

• Robotic End-of-Arm Tooling (EOAT) and lab automation

• Vacuum systems due to the -0.9 bar operating pressure range

Core Specifications:

• Valve function: 5/2-way, monostable (single solenoid, mechanical spring return)

• Actuation type: Electrical pilot operation (directly actuated poppet)

• Construction width: 10 mm (ultra-slim design)

• Standard nominal flow rate: 90 l/min (normalized to DIN 1343)

• Nominal width: 2 mm

• Pneumatic connection: M7 (female thread, all five ports)

• Operating pressure: -0.9 bar … 8 bar (supports vacuum operation)

• Operating voltage: 24 V DC

• Coil characteristics: 6.5 W (high-current phase), 1.625 W (low-current phase)

• Power consumption: 6.5W (peak), 1.625W (holding)

• Electrical connection: 2-pin plug vane (ZC pattern)

• IP rating: IP65 (with suitable mating plug)

Advanced Specifications:

• Response time (ON): 1.9 ms / (OFF): 1.7 ms

• Max. switching frequency: 300 Hz

• Duty cycle: 100%

• Electrical safety features: Spark arresting, reverse polarity protection, protective circuit

• Mechanical reset: Mechanical spring return

• Manual override: Non-detenting

• Sealing principle: Soft sealing (HNBR/NBR seals)

• Housing material: Die-cast zinc, coated

• Product weight: approx. 70 g

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• Mounting position: any (through-hole mounting)

• Max. tightening torque for fitting: 2 Nm

• Ambient / media temperature: -5 °C … +60 °C

• LABS (PWIS) conformity: VDMA24364-B1/B2-L

• Cleanroom suitability: Class 6 according to ISO 14644-1

System Integration:

• Compatible with Festo MHE2 series components. The valve can be used individually, mounted on sub-bases, or integrated into a manifold assembly with up to 10 stations.

• For operation, a 24V DC power supply and a 2-pin mating plug (suitable for ZC pattern, IP65) are required and must be ordered separately.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (c UL us Recognized, RCM, CE Mark, RoHS, FN 942017-4/5, EN 60068-2-6/27).

Related Products:

• MHE2-MS1H-5/2-QS-4 (525117) – Same valve with QS-4 push-in fitting connection

• MHE2-MS1H-5/2-M7-K (525115) – Same valve with cable electrical connection

• MHP2-MS1H-5/2-M5 (525105) – Same series, M5 thread version

• MH4 manifold assembly – Multiple valve manifold for MHE2 series (up to 10 stations)
