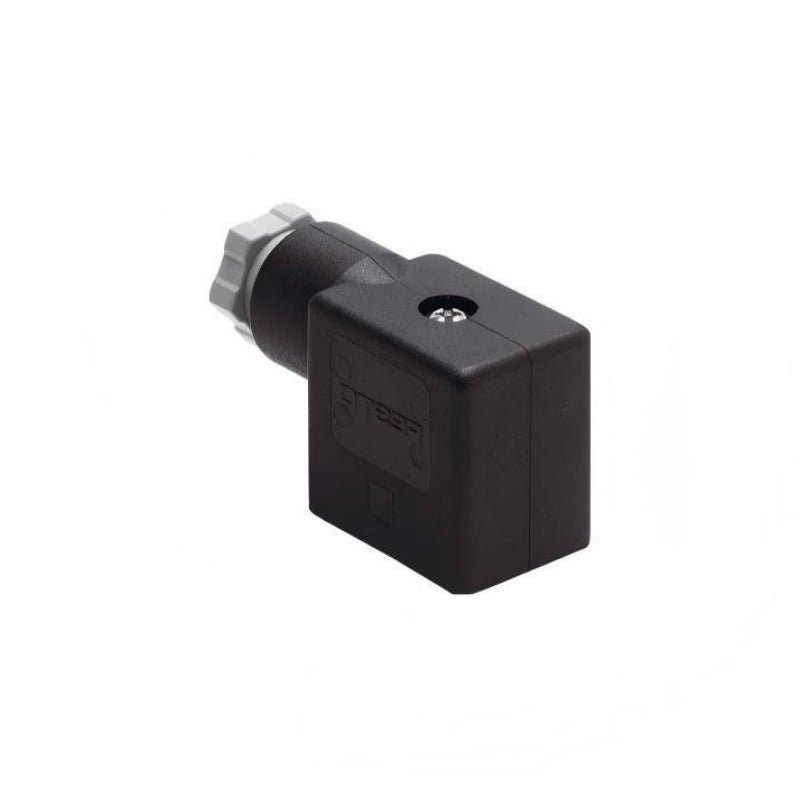

Festo MSSD-F 34431 Plug Socket Valve Connector B Industry Profile 3‑Pin IP65

Festo MSSD‑F is a plug socket for solenoid valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD‑2 and MH‑2 coils. Designed according to the industrial B port pattern (DIN EN 175301‑803), the angled socket with 3‑pin rectangular MSF housing provides a versatile electrical connection for pneumatic systems. The 180° rotatable cable outlet allows flexible cable routing even in tight control cabinets. The IP65 protection rating ensures reliable operation in industrial environments.

Applications:

• Electrical connection of solenoid valves in pneumatic automation

• Power supply and control signal distribution for valve terminals

• Industrial automation and panel building

• Replacement of existing valve connectors in maintenance and upgrades

Core Specifications:

• Product type: Angled plug socket, 3‑pin

• Design: Rectangular, MSF

• Rated voltage range: 0‑250 V AC / 0‑250 V DC

• Current rating at 40 °C: 16 A

• Degree of protection: IP65 (assembled state)

• Housing material: Polymer

• Housing colour: Black

• Cable gland: Pg9

• Cable diameter range: 6 … 8 mm

• Conductor cross‑section: ≤ 1.5 mm²

• Ambient temperature: –25 °C … +90 °C

• Mounting type: M3 central screw

• Mounting position: Any

• Cable outlet: Angled, 180° rotatable

• Electrical connection 2: Screw terminal

• Protective conductor connection: Yes

• LABS (PWIS) conformity: VDMA24364‑B2‑L

• Seal material: NBR

• Product weight: approx. 17 g

• RoHS compliant

Compatibility (example):

• Festo solenoid valves with F coils (e.g. MFH, MOFH, JMFH, JMFDH, NVF3, MUFH types)

• Festo valves with other coil types from the list above

• Industrial standard components with B port pattern (11 mm, EN 175301‑803)

Standards & Compliance:
CE marking according to EU Low Voltage Directive; RoHS compliant.

Related Products:

• MSSD‑N 550067 – same design for alternative coil systems

• MSSD‑EB‑M12‑MONO – variant with M12 connector

• NEBV series pre‑assembled connecting cables for valve systems
