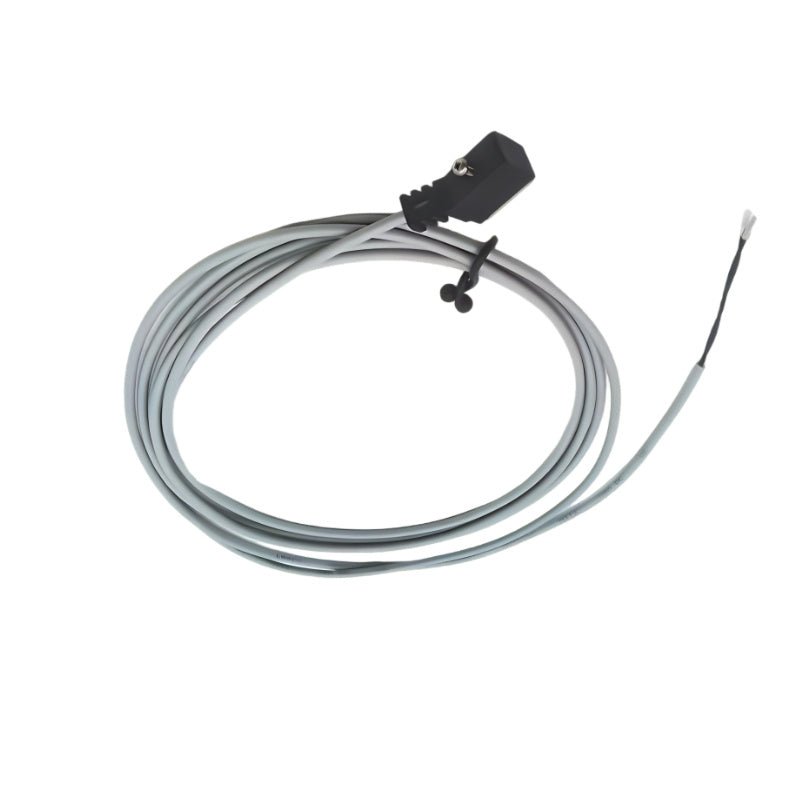

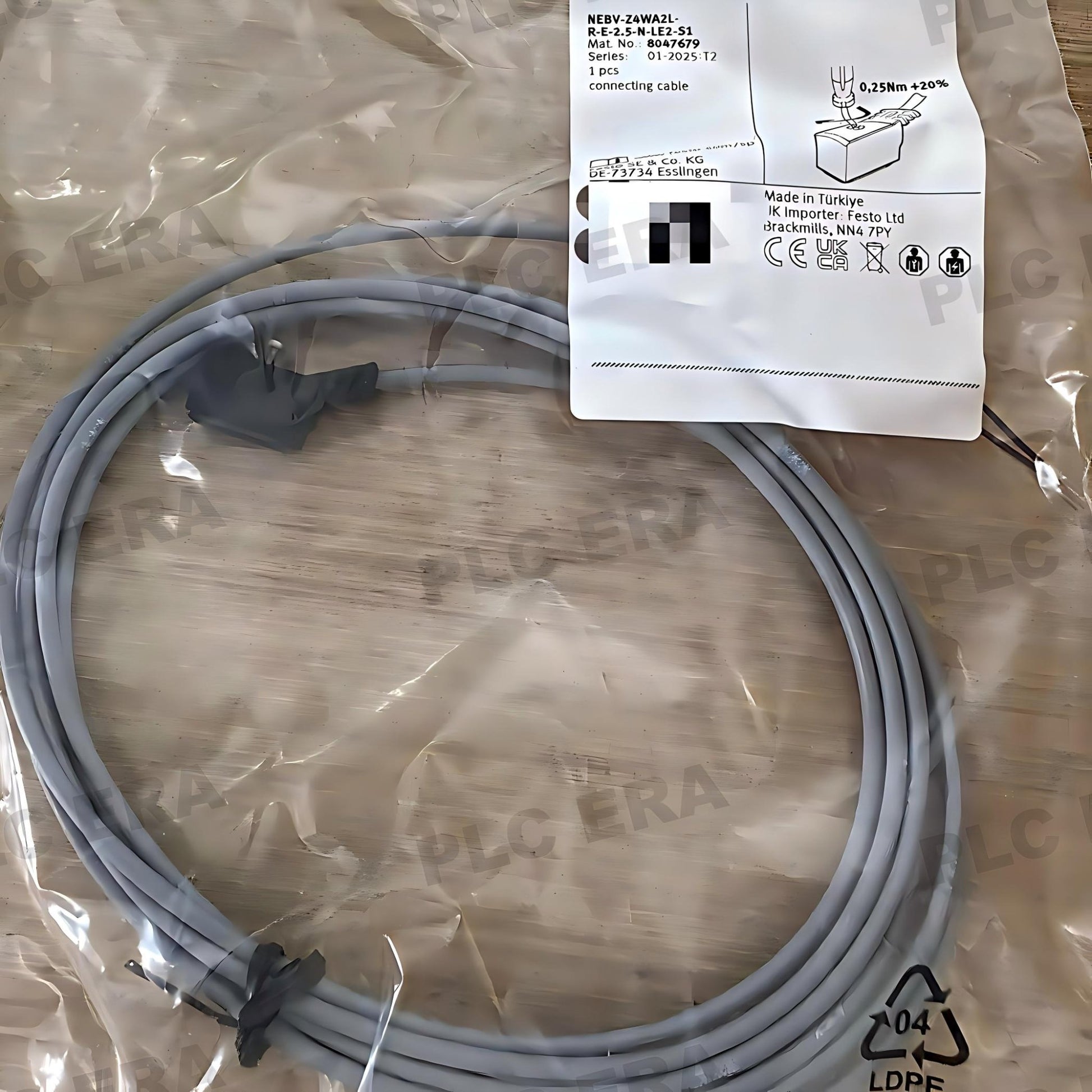

Festo NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 8047679 Connecting Cable 2.5m IP65

Description:
Festo NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 is a pre-assembled connecting cable for solenoid valves and pneumatic pilot valves. Its length is 2.5 metres. It uses a 2‑pole configuration. An angled ZC pattern socket with M2 central screw is on the field device side. The controller side has open ends. The cable reduces the holding current and has a built‑in protective circuit. A yellow LED shows the signal status. High‑quality TPE‑U(PUR) materials, IP65 protection and suitability for energy chains make it a reliable link in 24 V DC pneumatic systems.[2†L4-L7][4†L5-L6][6†L9-L10][6†L18-L21]

Applications:

• Power supply and 24 V DC control for Festo and industry‑standard solenoid valves with ZC connection pattern

• Valve terminal and manifold connections in automation panels

• OEM equipment requiring pre‑assembled valve cabling

• Pneumatic control systems where an angled socket with central screw is needed

Core Specifications:

• Product type: Connecting cable (2‑wire)

• Cable length: 2.5 m

• Number of poles: 2

• Electrical connection 1 (field device side): Angled socket, ZC plug pattern, metric screw with M2 central fixing

• Electrical connection 2 (controller side): Open end, 2‑wire

• Nominal operating voltage: 24 V DC (range 20.4‑26.4 V DC)

• Surge voltage strength: 2.4 kV

• Signal status display: Yellow LED

• Additional functions: Holding current reduction, protective circuit, bipolar reverse polarity protection

• Degree of protection: IP65 (when assembled)

• Suitable for energy chains: Yes, with tested minimum bending radius 29 mm for moving cables

• Cable structure: 2 × 0.14 mm², conductor cross‑section 0.14 mm²

• Cable diameter: 2.9 mm ±0.1 mm

• Cable sheath material: TPE‑U(PUR), grey

• Contact material: Copper alloy, tin‑plated

• Housing / screw material: Black TPE‑U(PU) / stainless steel

• Ambient temperature range: –10 °C … +50 °C

• Corrosion resistance class (CRC): 3 – high corrosion stress

• LABS (PWIS) conformity: VDMA24364‑B2‑L / C1‑L

• RoHS and REACH compliant

• Product weight: approx. 34 – 50 g

System Integration:

• The cable belongs to the Festo NEBV series of modular valve connecting cables.

• It is designed for use with Festo solenoid valves that use a ZC connection pattern and an M2 central screw mounting (e.g., CPE14‑MIBH‑5L‑1/8).

• The angled socket makes installation possible in tight control cabinets. The cable outlet can be rotated 180° when required.

• 24 V DC operation supports common industrial valve coils such as MSFG‑24/42‑50/60.

• For detailed installation and wiring, refer to the product hardware manual.

Standards & Compliance:
CE, UKCA, EMC, RoHS, REACH.

Related Products:

• NEBV‑Z4WA2L‑R‑E‑0.5‑N‑LE2‑S1 – 0.5 m version for short‑distance wiring

• NEBV‑Z4WA2L‑R‑E‑5‑N‑LE2‑S1 (8047680) – 5 m version for longer distances

• NEBV‑Z4WA2L‑P‑E‑2.5‑N‑LE2‑S1 (8047671) – 2.5 m cable, Pg7 cable gland, different connector housing geometry

• MSSD‑F (34431) – 3‑pin angled IP65 socket for F‑series solenoid coils
