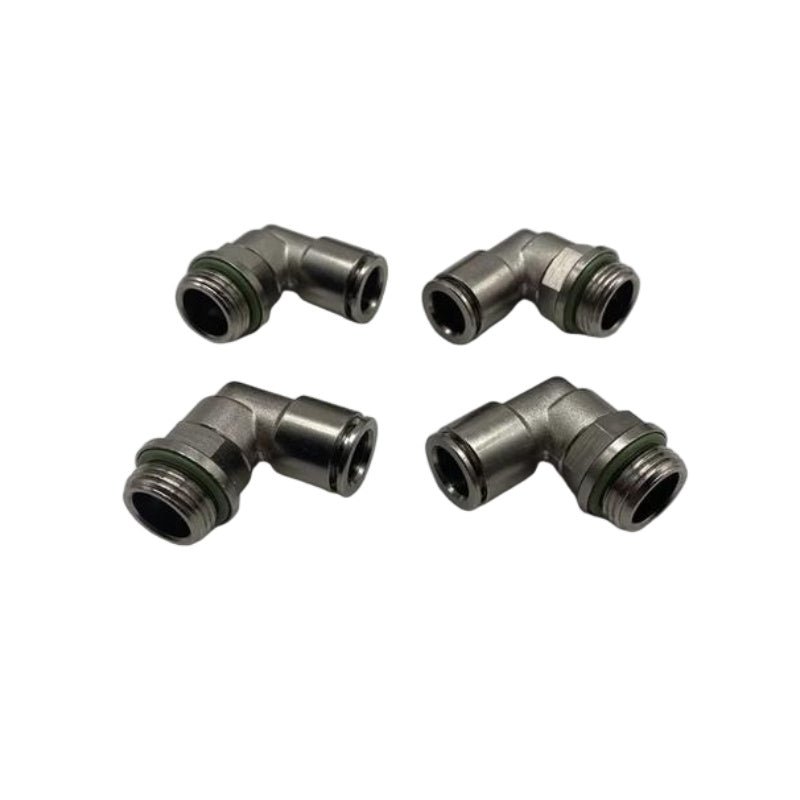

Festo NPQH-L-G38-Q10-P10 578288 Push-in L-Fitting 90° G3/8 to 10mm

Festo NPQH-L-G38-Q10-P10 is a 90° push‑in L‑fitting that connects a male G3/8 thread (BSPP) to 10 mm OD pneumatic tubing. The fitting can be swivelled 360° after the threaded connection is tightened, allowing flexible tube routing in confined spaces. The compact, solid‑metal brass body is chemically nickel‑plated for high corrosion resistance in demanding industrial environments. This fitting is suitable for compressed air, vacuum, and water (by manufacturer declaration) within a wide temperature range.

Applications:

• Compressed air distribution in industrial automation and machine building

• Pneumatic tubing connections for valves, cylinders and actuators

• High‑temperature applications (e.g., oven sealing systems) up to 150 °C

• Applications requiring high corrosion resistance (CRC 3), e.g., welding spatter environments

Core Specifications:

• Pneumatic connection, port 1: G3/8 male thread (BSPP) with sealing ring

• Pneumatic connection, port 2: Push‑in fitting for tubing OD 10 mm

• Design: L‑shaped (90° angle), 360° rotatable after tightening

• Nominal size: 8.5 mm

• Operating pressure (temperature‑dependent): –0.95 bar … 20 bar

• Ambient / media temperature: 0 °C … +150 °C

• Housing material: Brass, chemically nickel‑plated

• Thread seal material: FPM (fluororubber)

• Tube retaining claw material: High‑alloy stainless steel

• Product weight: approx. 38 g

• Packing unit: 10 pieces

Advanced Specifications:

• Tube insertion depth: 18.3 mm

• Nominal tightening torque: 9 Nm (± 20 %)

• Mounting position: any

• Operating medium: Compressed air to ISO 8573‑1:2010 [7:-:-]; water (liquid, ice‑free) per manufacturer declaration

• Cleanroom suitability: Class 4 according to ISO 14644‑1

• Food suitability: suitable for use with the food industry (NSF/ANSI 169 certified, FDA‑compliant)

System Integration:

• Belongs to Festo NPQH series of universal metal fittings.

• Compatible with all Festo 10 mm OD pneumatic tubing (PUN, PAN, PEN series) and GRLA, VFOE flow control valves.

• After tightening the G3/8 male thread, the fitting can be swivelled 360° to align the push‑in connector.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (NSF/ANSI 169, RoHS, LABS VDMA24364, suitable for use with food).

Related Products:

• NPQH‑T‑G38‑Q10‑P10 (578400) – Push‑in T‑fitting, G3/8 male, 10 mm push‑in

• NPQH‑LL‑G38‑Q10‑P10 (578269) – Long elbow version for deeper tube insertion

• NPQH‑D‑G38‑Q10‑P10 – Straight bulkhead fitting for panel mounting

• GRLA‑1/8‑QS‑8‑D – One‑way flow control valve for cylinder speed regulation
