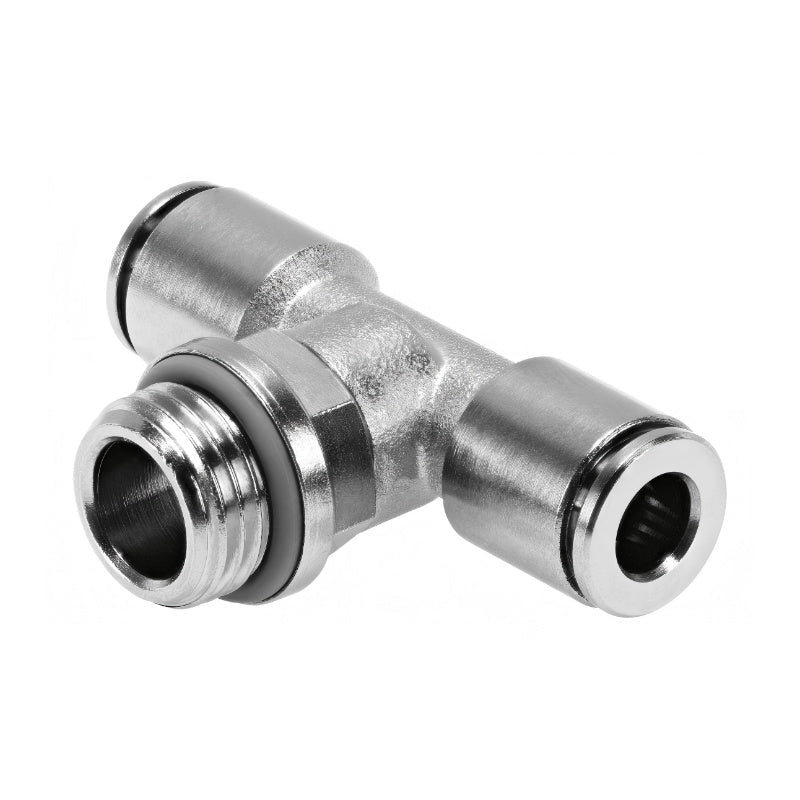

Festo NPQH-T-G38-Q10-P10 578400 Push‑in T-Fitting G3/8 to 10mm

Festo NPQH‑T‑G38‑Q10‑P10 is a T‑shaped push‑in fitting (threaded adaptor) with a male G3/8 thread on the inlet and two push‑in connectors for 10 mm outside diameter tubing. The body is made from chemically nickel‑plated brass, providing high corrosion resistance (CRC 3) and suitability for harsh environments including welding spatter applications. The fitting can be swivelled 360° after tightening, allowing flexible tube routing in confined spaces. It is certified for use in the food industry (NSF H1‑registered, FDA‑compliant) and resistant to cleaning agents. The operating temperature range extends up to 150 °C, and the maximum operating pressure is 20 bar.

Applications:

• Pneumatic branch line distribution in compact control cabinets

• High‑temperature applications (e.g. oven sealing systems) up to 150 °C

• Food industry and FDA‑compliant pneumatic systems

• Systems requiring high corrosion resistance (CRC 3), e.g. welding, chemical, marine environments

Core Specifications:

• Pneumatic connection, port 1: G3/8 male thread (BSPP) with sealing ring

• Pneumatic connection, port 2: 10 mm push‑in connector for OD tubing (e.g. PUN, PAN, PEN series)

• Design: T‑shape (branch, 3‑way) with 360° swivel after tightening

• Nominal size: 8.0 mm

• Operating pressure: –0.95 … 20 bar (full temperature range)

• Ambient / media temperature: 0 … 150 °C

Advanced Specifications:

• Housing / threaded plug material: Brass, chemically nickel‑plated, anti‑corrosion

• Seal material (thread): FPM (fluororubber)

• Release ring material: Brass, chemically nickel‑plated

• Material of tube retaining claw: High‑alloy stainless steel

• Locking principle: Push‑pull, tool‑free assembly and disassembly

• Mounting position: any, via external hexagon (spanner size AF 20, nominal tightening torque 9 Nm ±20 %)

• Corrosion resistance class (CRC): 3 – high corrosion stress

• Operating medium: Compressed air (ISO 8573-1:2010 [7:-:-]), water (liquid, ice‑free; max. 0.6 MPa at 50 °C)

• Lubricated operation: possible (continued lubrication required if applied)

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

• Cleanroom suitability: Class 4 to ISO 14644‑1

• For use in the food industry: complies with NSF/ANSI 51, FDA 21 CFR 177.1595 and 177.2600

• Product weight: approx. 50 g

• Packaging unit: 10 pieces

• RoHS compliant, free of copper and PTFE

System Integration:

• Belongs to the Festo NPQH universal metal fitting series for rugged applications.

• Compatible with all Festo 10 mm OD pneumatic tubing and GRLA, VFOE flow control valves.

• After tightening the G3/8 male thread, the fitting can be swivelled 360° to align the push‑in connectors.

• For detailed installation and pneumatic schematics, refer to the product hardware manual (NPQH series).

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
