Festo QSL-1/8-6 153047 Push-in L-Fitting R1/8 to 6mm

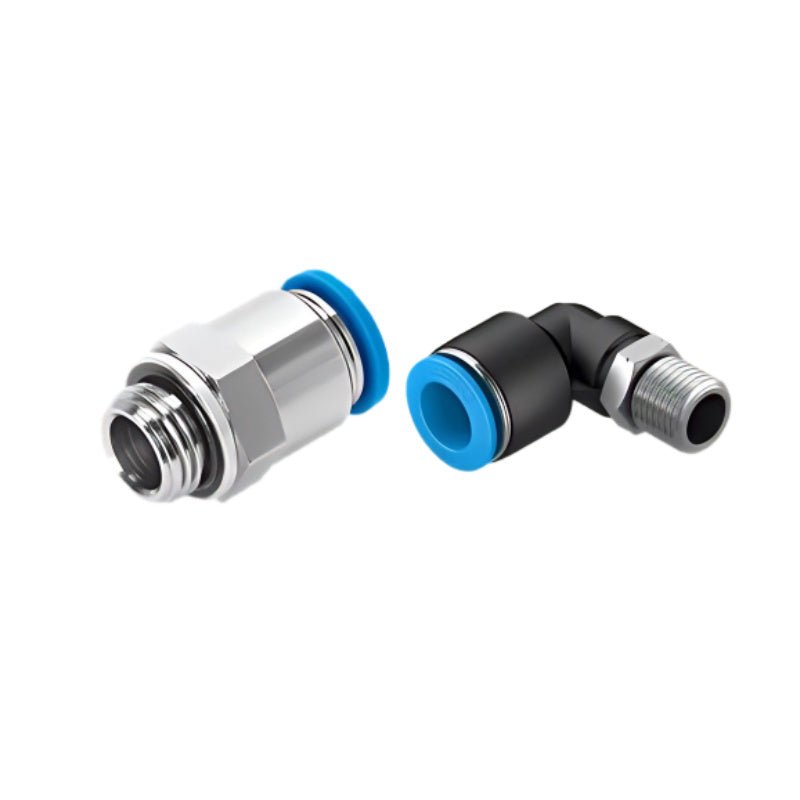

Festo QSL-1/8-6 is a 90° angled push-in L-fitting (threaded adapter) that connects a male R1/8 (BSPT) thread to 6 mm OD pneumatic tubing. The fitting is 360° orientable after installation, allowing alignment along all axes even after the threaded connection is tightened. The push‑pull principle enables tool‑free assembly and disassembly, and the blue release ring provides visual identification of the release mechanism. The tapered ISO R-thread has a self‑sealing PTFE coating, which allows the fitting to be re‑used multiple times without additional sealing components.

Applications:

• Compressed air distribution in industrial automation

• Pneumatic control panels and manifold systems

• OEM pneumatic system integration for valves, cylinders, and actuators

• Material handling and packaging equipment

Core Specifications:

• Pneumatic connection, port 1: R1/8 male thread (BSPT 1/8″)

• Pneumatic connection, port 2: For tubing outside diameter 6 mm (push‑in)

• Orientation: 360° rotatable after tightening the threaded connection

• Design: L‑shaped (90° angle) with external hexagon

• Nominal size: 4.2 mm

• Operating pressure (temperature‑dependent): –0.95 bar … 14 bar

• Operating pressure (full temperature range): –0.95 bar … 6 bar

• Ambient temperature: –10 °C … +80 °C

• Material of housing: PBT (polybutylene terephthalate)

• Material of release ring: POM (blue)

• Material of threaded plug: brass, nickel‑plated

• Material of tube retaining claw: high‑alloy stainless steel

• Material of tubing seal: NBR

• Type of seal on screw‑in stud: Coating (PTFE)

• Hex size (spanner): 10 mm

• Mounting position: any

• Packing unit: 10 pieces

• Product weight: 11 g

Advanced Specifications:

• Operating medium: Compressed air to ISO 8573‑1:2010 [7:‑:‑]; water as per manufacturer declaration (max. 0.6 MPa at 50 °C)

• Lubricated operation: possible (if lubricated, continued lubrication required)

• Design: Push‑pull principle

• Tube insertion depth: 17 mm

• Nominal torque: 7 Nm (±20 %)

• Cleanroom suitability: Class 4 to ISO 14644‑1

• Corrosion resistance class (CRC): 1 – Low corrosion stress

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

• RoHS compliant

System Integration:

• Belongs to Festo QS series of push‑in fittings.

• Compatible with all Festo pneumatic tubing for 6 mm outside diameter (PUN, PAN, PEN series).

• Directly mounts onto components with R1/8 female ports.

• 360° orientation after tightening allows flexible tube routing without stress on the connection.

• For detailed assembly instructions, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products (upgrade path):

• QSL‑1/8‑4 – for 4 mm tubing (smaller flow)

• QSL‑1/8‑6 (current model) – for 6 mm tubing

• QSL‑1/8‑8 – for 8 mm tubing (larger flow)

• QS‑1/8‑6‑I – straight‑style push‑in fitting (no angle)
