Festo SGS-M12X1.25 9262 Rod Eye M12x1.25

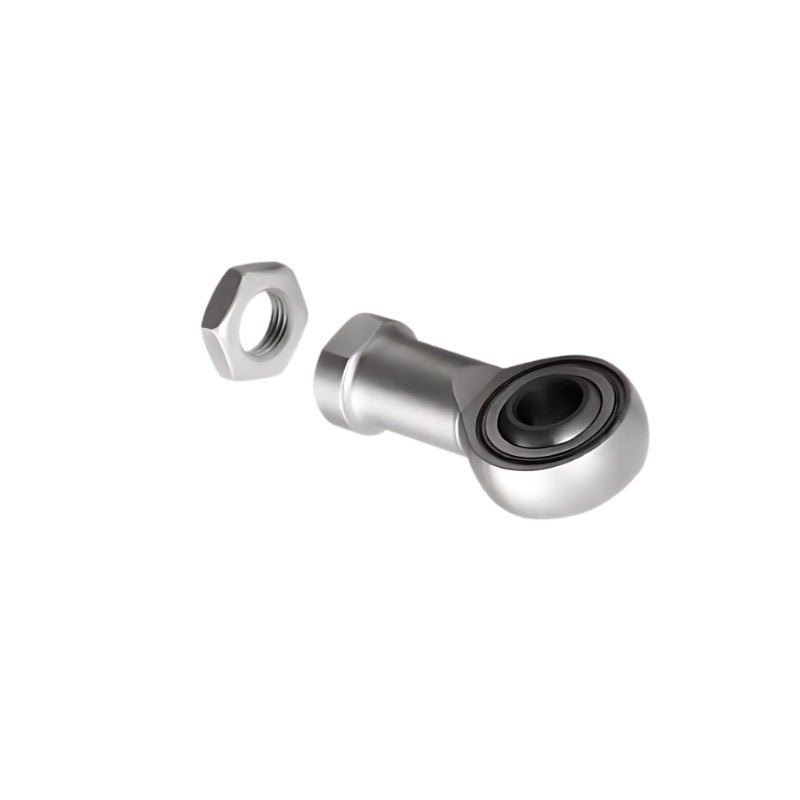

Festo SGS‑M12X1.25 is a rod eye (clevis/plain bearing) for spherical swivelling cylinder mounting on the piston rod side as per DIN ISO 8139. The maintenance‑free combination of steel and PTFE‑bronze provides a reliable bearing for pneumatic control systems. The rod eye incorporates a female thread M12x1.25 and includes one hexagonal nut (to DIN 439) for immediate field installation. Designed for M12x1.25 cylinder piston rods, it ensures precise and reliable operation in factory automation, packaging machinery and material handling systems.

Applications:

• Spherical swivelling cylinder mounting on piston rod side (DIN ISO 8139)

• Factory automation and assembly systems

• Packaging machinery and material handling

• Pneumatic actuator connection points

Technical Specifications:

• Type code: SGS‑M12X1.25

• Part number: 9262 / Mat.‑No. 009262

• Conforms to: DIN ISO 8139 (for spherical swivelling cylinder mounting)

• Thread type: M12x1.25 (female)

• Delivered with: 1 rod eye, 1 hex nut to DIN 439

• Material: Galvanised steel / steel with PTFE‑bronze bearing composite

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• Ambient temperature: –40 °C … +150 °C

• Weight: approx. 129 g

• RoHS‑compliant

System Integration:

• This rod eye is part of the Festo SGS accessory series for pneumatic cylinders. Compatible with Festo cylinders that have a piston rod thread size of M12x1.25.

• Installation is performed by screwing the rod eye onto the cylinder piston rod and securing it with the included DIN 439 hex nut. No lubrication is required.

• For detailed mechanical assembly and permissible side load conditions, refer to the product’s specification sheet.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• SGS‑M10X1.25 – M10x1.25 thread size for smaller cylinders

• SGS‑M16X1.5 – M16x1.5 thread size for larger cylinders

• SGA‑M12X1.25 – rod clevis version with fork head

• CRSGS‑M12X1.25 – high‑alloy stainless steel version for corrosion‑intensive and food‑contact applications
