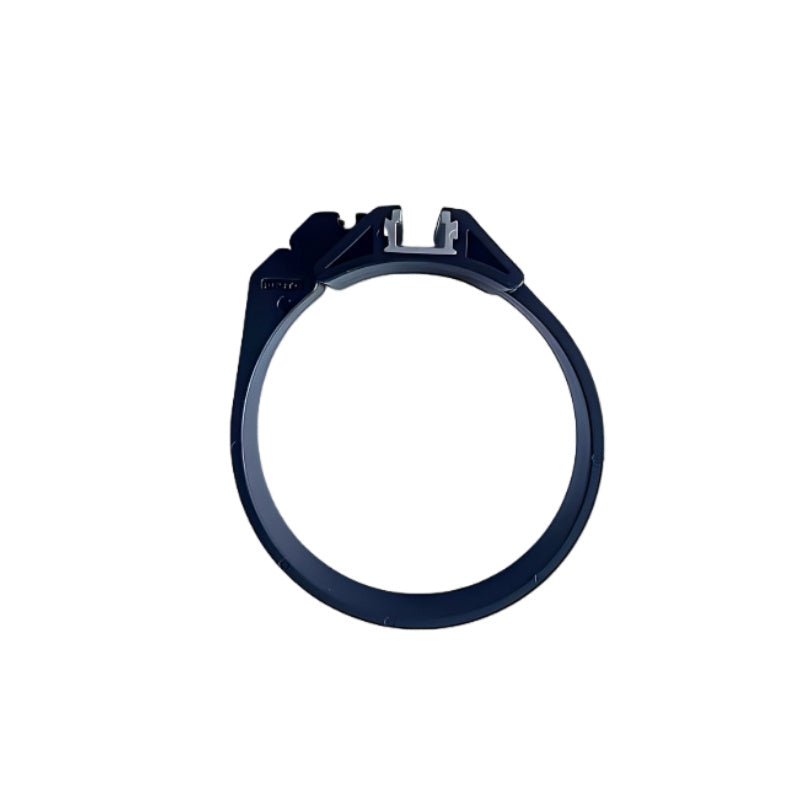

Festo SMBR-8-25 Sensor Mounting Bracket 25mm Piston Diameter 175096

Overview
The Festo SMBR-8-25 (part number 175096) is a sensor mounting bracket from the SMBR series, designed for secure installation of proximity switches onto pneumatic actuators. Engineered for cylinders with a 25 mm piston diameter, this T‑slot compatible mounting kit provides a stable and precise platform for attaching Festo SME-8 and SMT-8 series proximity switches, ensuring accurate piston position detection in automated systems.

Constructed from high‑quality materials, the mounting kit features a durable wrought aluminum alloy profile with an anodized finish and a POM (Polyacetal) retaining bracket, offering excellent dimensional stability and resistance to industrial conditions. The design ensures firm sensor retention even in dynamic environments, minimizing vibration impact and maintaining measurement accuracy. Corrosion resistance class CRC 2 (moderate corrosion stress) makes it suitable for standard industrial environments, including applications with occasional exposure to moisture and mild chemicals.

The bracket supports quick and straightforward installation directly into the cylinder T‑slot, with a compact footprint of 36.7 mm (L) × 19 mm (W) × 35.6 mm (H) and a lightweight construction of approximately 8 g, enabling easy integration without adding significant mass. The kit operates reliably across a wide ambient temperature range of –20 °C to +70 °C, ensuring consistent performance in diverse operating conditions. RoHS‑compliant and free of copper and PTFE, the SMBR-8-25 is suitable for use in cleanroom environments and applications with stringent material requirements.

Key Features

• 25 mm Piston Diameter Compatibility – Precisely engineered for Festo pneumatic cylinders and actuators with a 25 mm piston diameter, ensuring a perfect fit.

• Secure Sensor Mounting – Designed specifically for Festo SME-8 and SMT-8 series proximity switches, providing a firm and reliable support platform that maintains sensor stability and accuracy even in dynamic industrial environments.

• Durable Construction – Features a wrought aluminum alloy profile (anodized) and a POM retaining bracket, offering exceptional dimensional stability, corrosion resistance, and long‑term durability under demanding conditions.

• Precision Alignment – Facilitates precise positioning of sensors, critical for optimizing the accuracy and efficiency of pneumatic operations.

• Wide Temperature Range – Operates reliably from –20 °C to +70 °C, ensuring consistent performance across diverse industrial environments.

• Corrosion Resistance Class CRC 2 – Moderate corrosion stress rating, suitable for standard industrial applications with occasional exposure to moisture and mild chemicals.

• Easy T‑Slot Installation – Directly inserts into cylinder T‑slot and secured via screw clamp; lightweight design (approx. 8 g) with compact dimensions (36.7 × 19 × 35.6 mm) simplifies integration.

• RoHS Compliant – Free of copper and PTFE, meeting environmental standards and suitable for cleanroom applications.

• Original Brand New, Within Warranty Period – Genuine Festo product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

Applications
Ideal for mounting proximity switches onto Festo pneumatic cylinders and actuators in factory automation, pick‑and‑place systems, packaging machinery, material handling equipment, assembly lines, and general industrial automation applications requiring precise piston position detection.

Package Includes

• 1 x Festo SMBR-8-25 Sensor Mounting Bracket (175096)

• Mounting screws (high‑alloy stainless steel)
