IFM E43300 Welding Adapter G1/2 316L 50 Bar Hygienic EHEDG FDA

Overview

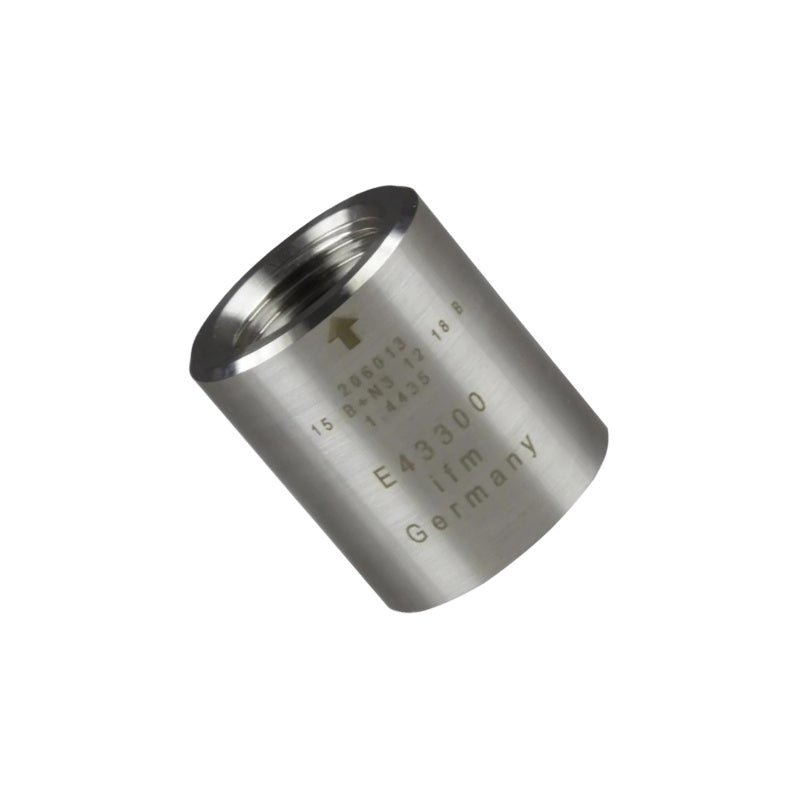

The IFM E43300 (ADAPT G1/2-WELDING SLEEVE) is a precision welding adapter engineered for hygienic installation of G 1/2 process sensors in tanks, piping systems, and industrial vessels. Manufactured from stainless steel (1.4435 / 316L) with an electropolished surface finish (Ra < 0.4 µm), this adapter provides a contamination‑free interface ideal for food, beverage, and pharmaceutical applications. Designed with a 30 mm welding sleeve on the process side and a G 1/2 sealing cone on the sensor side, the E43300 ensures leak‑tight integration of IFM process sensors (e.g., pressure, temperature, or level transmitters) into welded installations. Rated for 50 bar maximum working pressure (75 bar MAWP under CRN certification), it withstands demanding high‑pressure environments. Fully compliant with EHEDG, FDA, and EC 1935/2004 hygienic standards, the adapter is supplied with FKM O‑rings and supports food contact materials regulation.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Robust 316L stainless steel construction – Manufactured from high‑grade stainless steel (1.4435 / 316L) with electropolished wetted surface finish (Ra < 0.4 µm / Rz 4), delivering exceptional corrosion resistance and cleanability in hygienic applications.

• High pressure resistance – Rated for 50 bar maximum working pressure (75 bar MAWP under CRN), ensuring reliable performance in demanding high‑pressure industrial and sanitary environments.

• EHEDG and FDA certified for hygienic use – Certified to EHEDG, FDA, and EC 1935/2004 (food contact materials) standards, making it fully suitable for food, beverage, and pharmaceutical processing with rigorous sanitation requirements.

• G 1/2 sealing cone for sensor integration – Sensor connection features G 1/2 sealing cone interface, enabling leak‑tight, hygienic installation of IFM process sensors (pressure, temperature, level, flow).

• 30 mm welding sleeve for tank and pipe mounting – Process connection as a 30 mm diameter welding adapter allows secure, permanent installation into tanks, vessels, and piping systems by welding.

• Supplied with FKM O‑rings – Includes FKM O‑rings for reliable sealing between sensor and adapter, ensuring a contamination‑free, leak‑proof connection.

• Multiple regulatory approvals – Certified with CRN, EC 1935/2004, FDA, and FCM, providing compliance for global industrial and food contact applications.

• High reliability with Germany quality – Designed and manufactured by IFM in Germany, ensuring precision engineering, consistent quality, and long‑term durability.

Technical Specifications

Applications

• Hygienic installation of G 1/2 process sensors in food, beverage, and pharmaceutical processing vessels.

• Permanent welding into tanks, reactors, and piping systems for pressure, temperature, or level monitoring.

• High‑pressure industrial applications requiring 316L stainless steel and 50 bar rating.

• EHEDG‑compliant installations requiring electropolished surfaces (Ra < 0.4 µm).

• CRN‑certified applications (up to 75 bar) for Canadian regulatory compliance.

Package Includes

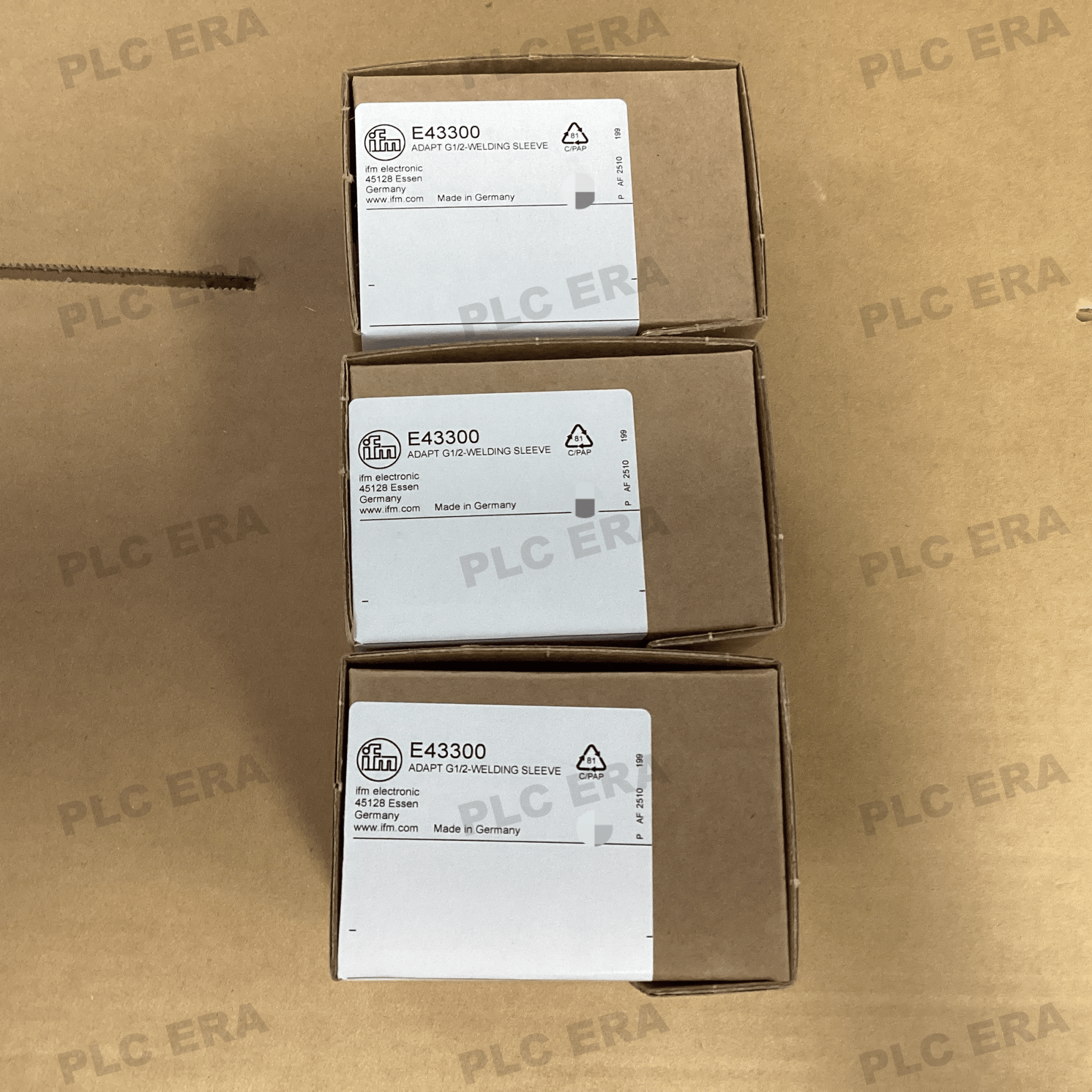

• 1 × IFM E43300 welding adapter

• FKM O‑rings
