IFM EVC004 M12 Female Cordset 2m PUR IP69K Oil Resistant

Overview

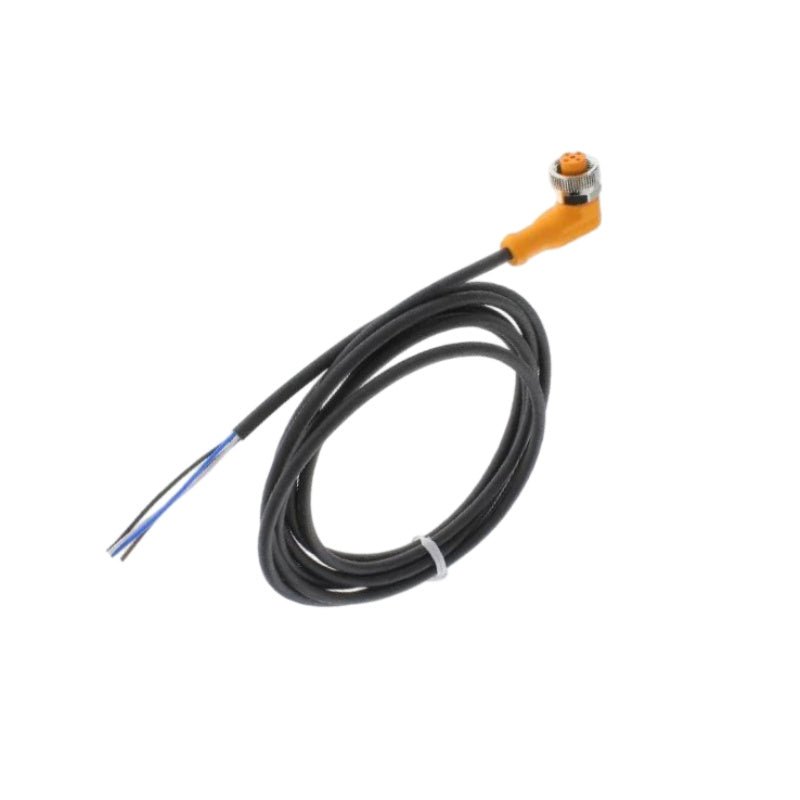

The IFM EVC004 (ADOAH040MSS0002H04) is a high-quality M12 female cordset specifically designed for sensor and actuator connections in demanding industrial automation environments . Featuring a 4-pin M12 angled female connector with a 2-meter PUR (polyurethane) cable, this cordset provides a durable, ready-to-use connection solution for factory automation and harsh applications . The PUR cable jacket offers exceptional resistance to oils and coolants, while the nickel-plated brass coupling nut with a positive locking mechanism ensures vibration and shock resistance . Rated IP65, IP67, IP68, and IP69K, the EVC004 withstands dust, temporary immersion, and high-pressure, high-temperature washdowns . The connector features gold-plated contacts, a mechanical end stop to protect the O-ring from over-tightening, and is silicone-free and halogen-free . With drag chain suitability (>5 million bending cycles), wide operating temperature range (-25…90°C), and a net weight of 76.1 g, this cordset delivers reliable performance in food processing, machine tools, and outdoor installations.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Resistant to oils and coolants – PUR cable jacket provides exceptional resistance to oils, coolants, and industrial lubricants, making the cordset suitable for machine tools, hydraulic systems, and metalworking applications .

• Permanent, reliable sealing even when mounted without tools – Advanced O-ring sealing system ensures reliable IP protection without excessive tightening torque, simplifying installation and reducing the risk of damage .

• High protection rating for harsh industrial environments – Rated IP65, IP67, IP68, and IP69K, providing dust-tight protection, resistance to temporary immersion, and high-pressure, high-temperature washdown resistance for food processing and outdoor installations .

• Vibration and shock resistant thanks to coupling ring with locking mechanism – Nickel-plated brass coupling nut features a positive locking mechanism that prevents loosening under vibration and shock, ensuring continuous signal integrity .

• Mechanical end stop to protect the O-ring from destruction – Integrated mechanical end stop prevents over-tightening, protecting the O-ring from crushing and ensuring long-term sealing performance .

• Drag chain suitable with >5 million bending cycles – Designed for flexible applications with a minimum bending radius of 10× cable diameter, max. travel speed of 3.3 m/s, and max. acceleration of 5 m/s², ensuring durability in moving applications .

• Gold-plated contacts for reliable electrical connections – 4 gold-plated A-coded contacts provide superior corrosion resistance, low contact resistance, and long-term signal integrity .

• Silicone-free and halogen-free construction – Silicone-free and halogen-free materials reduce toxic smoke emission in case of fire, meeting stringent safety and environmental standards .

Technical Specifications

Applications

• Food and beverage industry: Hygienic and wet area installations requiring IP69K washdown resistance and silicone‑free materials.

• Machine tools and metalworking: Sensor and actuator connections exposed to oils and coolants.

• Factory automation: Connecting M12 sensors (proximity, photoelectric, pressure, flow) to PLC I/O modules or fieldbus junction boxes.

• High‑vibration environments: Conveyors, mobile equipment, and robotic cells requiring vibration‑resistant connections.

• Outdoor and wet area installations: Applications requiring IP68 continuous immersion protection and wide temperature range.

• Drag chain applications: Moving cable tracks requiring high flexibility and long bending cycles (>5 million).

Package Includes

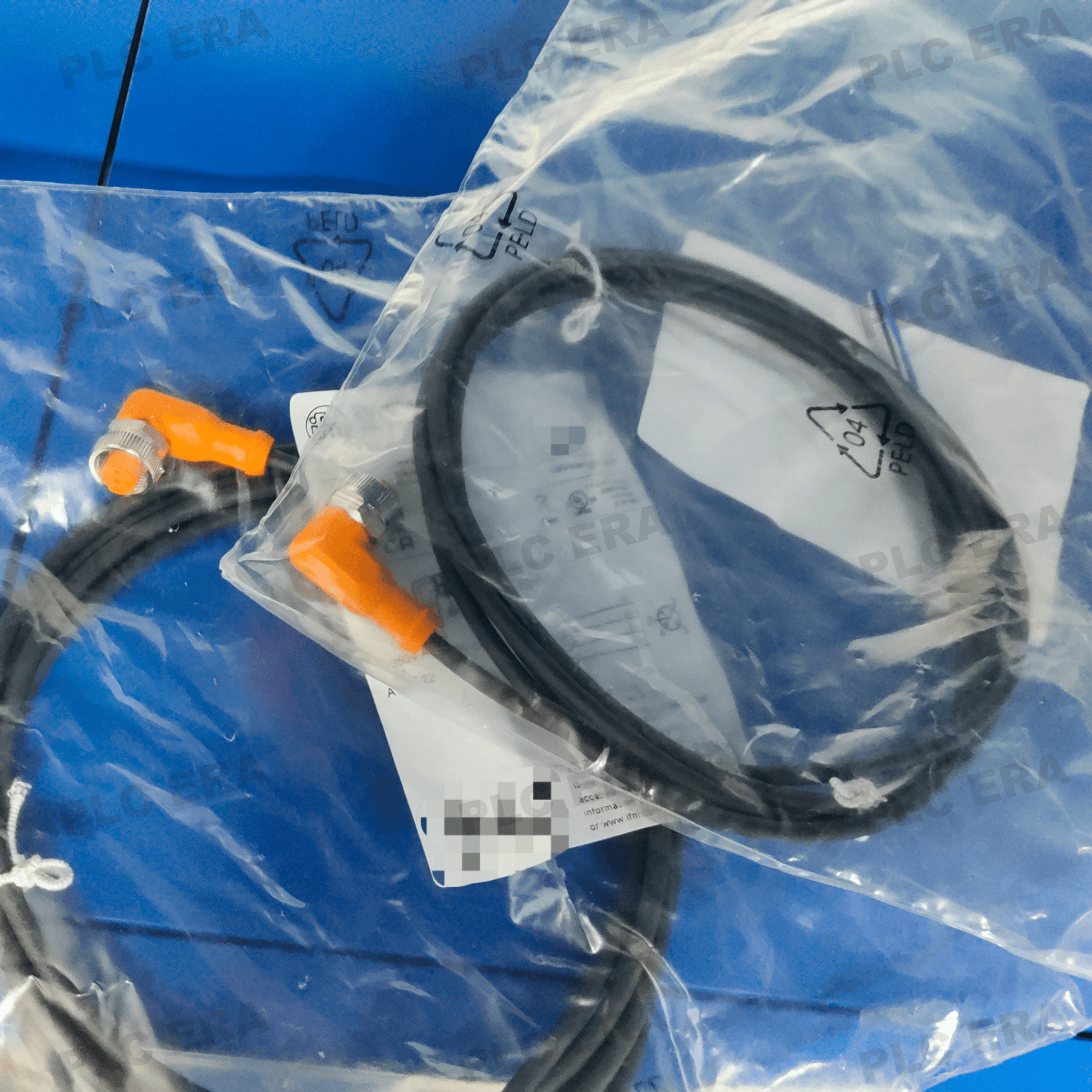

• 1 × IFM EVC004 female cordset with 2m PUR cable (ADOAH040MSS0002H04)
