IFM EVT005 M12 Female Cordset 10m PVC IP69K Hygienic Food

Overview

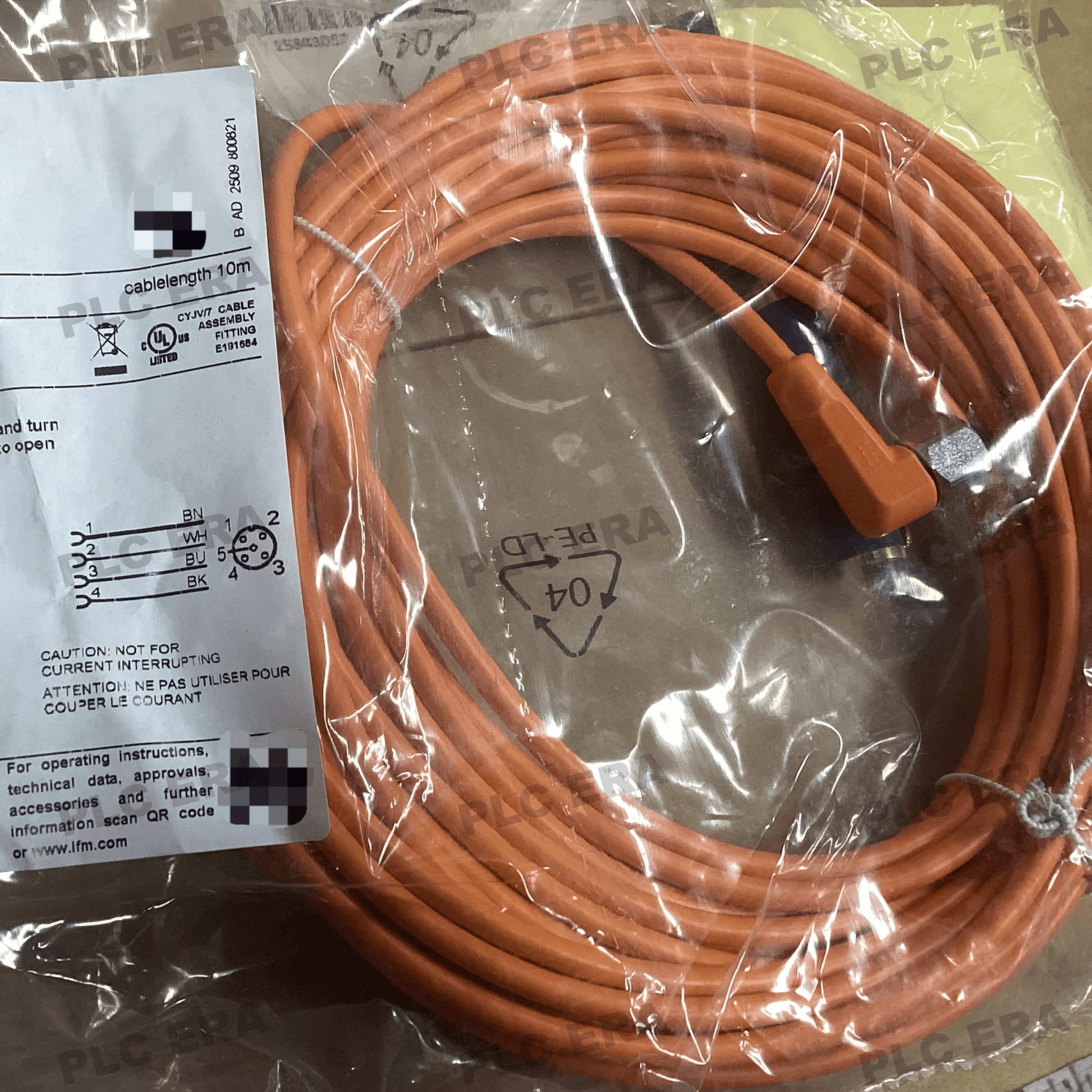

The IFM EVT005 (ADOAH040VAS0010E04) is a high‑quality M12 female cordset specifically engineered for use in sanitary and wet areas in the food industry. Featuring a 4‑pin M12 angled female connector with a 10‑meter orange PVC cable, this cordset provides a durable, ready‑to‑use connection solution for sensors and actuators in demanding hygienic environments. The stainless steel (316L) coupling ring with a locking mechanism ensures vibration and shock‑resistant connection, while the mechanical end stop protects the O‑ring from over‑tightening damage. Rated IP65, IP67, IP68, and IP69K, the EVT005 withstands dust, temporary immersion, and high‑pressure, high‑temperature washdowns, making it ideal for food processing, dairy, and pharmaceutical applications. The cable is silicone‑free, drag chain suitable (>1 million bending cycles), and operates over a wide temperature range of -25…100°C, ensuring reliable performance in harsh industrial environments.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• For use in sanitary and wet areas in the food industry – Silicone‑free construction with gold‑plated contacts and hygienic 316L stainless steel nut, making it safe for sensitive food and pharmaceutical applications.

• Permanent, reliable sealing even when mounted without tools – Advanced O‑ring sealing system ensures reliable IP protection without excessive tightening torque, simplifying installation and reducing the risk of damage.

• Wide operating temperature range and high protection rating – Rated IP65, IP67, IP68, and IP69K for dust‑tight protection, temporary immersion, and high‑pressure, high‑temperature washdown resistance. Operates from -25…100°C (fixed) and 5…100°C (moving).

• Vibration and shock resistant thanks to coupling ring with locking mechanism – Stainless steel (1.4404/316L) coupling ring features a positive locking mechanism that prevents loosening under vibration and shock, ensuring continuous signal integrity.

• Mechanical end stop to protect the O‑ring from destruction – Integrated mechanical end stop prevents over‑tightening, protecting the O‑ring from crushing and ensuring long‑term sealing performance.

• Drag chain suitable with >1 million bending cycles – Designed for flexible applications with a minimum bending radius of 10× cable diameter, max. travel speed of 3.3 m/s, and max. acceleration of 5 m/s², ensuring durability in moving applications.

• Gold‑plated contacts for reliable electrical connections – 4 gold‑plated A‑coded contacts provide superior corrosion resistance, low contact resistance, and long‑term signal integrity.

• High reliability with halogen‑free PVC construction – Halogen‑free PVC cable jacket reduces toxic smoke emission in case of fire, meeting stringent safety and environmental standards.

Technical Specifications

Applications

• Food and beverage industry: Hygienic and wet area installations requiring IP69K washdown resistance, silicone‑free materials, and 316L stainless steel nuts.

• Dairy and bottling lines: Sensor and actuator connections in pasteurisers, filling machines, and CIP/SIP washdown environments.

• Pharmaceutical and biotechnology: Cleanroom and sterile processing equipment requiring high‑pressure, high‑temperature washdown resistance.

• Hygienic packaging machinery: Sealing and filling equipment requiring vibration‑resistant, drag chain‑suitable cable assemblies.

• Industrial automation: High‑vibration environments such as conveyors, mobile equipment, and robotic cells.

• Outdoor and wet area installations: Applications requiring IP68 continuous immersion protection and wide temperature range.

Package Includes

• 1 × IFM EVT005 female cordset with 10m PVC cable (ADOAH040VAS0010E04)
