IFM O1D100 O1DLF3KG/IO-Link Laser Sensor 10m Range 2 Outputs

Overview

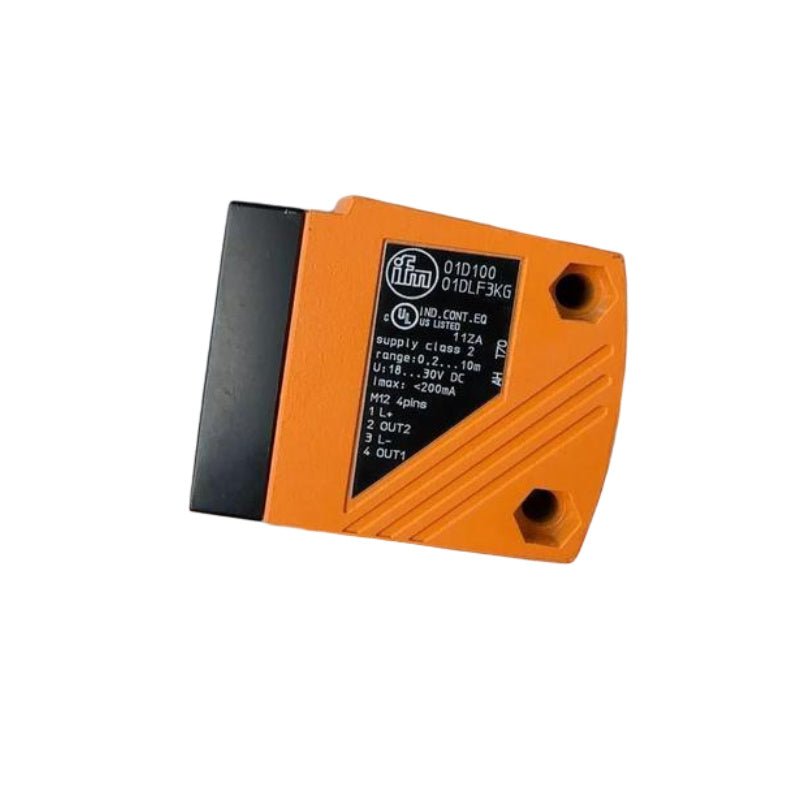

The IFM O1D100 (O1DLF3KG/IO-Link) is a high‑performance laser distance sensor designed for reliable optical distance measurement over long ranges up to 10 meters. Part of IFM‘s O1D series, this sensor features two switching outputs, with one output configurable as an analog output (4…20 mA or 0…10 V). The scalable measuring range and adjustable window function enable flexible adaptation to various target distances and materials. With background suppression capability, the O1D100 reliably detects objects regardless of color, texture, or ambient light interference. The integrated IO‑Link interface (V1.1) provides seamless communication for parameter setting, process data transmission, and diagnostic functions, making it ideal for factory automation, logistics, and quality control applications. Its compact IP67 housing and excellent price/performance ratio deliver a cost‑effective solution for demanding industrial environments.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Long sensing range up to 10 m – Reliable distance measurement from 0.2 m to 10 m (on white 90% reflective object), suitable for large‑area positioning, crane collision avoidance, and fill level monitoring.

• Dual output with analog capability – Two switching outputs (PNP), with one output programmable as analog output (4…20 mA / 0…10 V), eliminating the need for a separate analog module.

• Scalable measuring range & window function – Adjustable measuring range and teachable window function allow precise detection of specific distance zones, enabling background suppression and selective object detection.

• IO‑Link communication (V1.1) – Integrated IO‑Link interface enables remote parameterization, process data readout (distance value + switching status), and extended diagnostics, reducing downtime and simplifying maintenance.

• Background suppression – Advanced background suppression reliably ignores objects behind the defined detection window, preventing false triggers caused by conveyors, walls, or other static backgrounds.

• Visible red laser class 1 – Class 1 laser (wavelength 655 nm, max output < 0.39 mW) ensures safe operation without special protective measures, while the visible red spot simplifies alignment.

• Robust IP67 housing – Die‑cast zinc housing with IP67 protection rating withstands dust, washdown, and temporary immersion, suitable for harsh industrial environments including food processing and outdoor installations.

• Excellent price/performance ratio – Combines premium features (long range, analog output, IO‑Link) at a competitive price point, delivering high value for cost‑sensitive automation projects.

Technical Specifications

Applications

• Distance monitoring and positioning in automated storage and retrieval systems (ASRS).

• Crane collision avoidance and anti‑sway control.

• Fill level measurement of bulk materials and liquids in silos or hoppers.

• Loop control in roll‑to‑roll processes (e.g., web tension control).

• Quality control: object presence, dimension checking, and sorting.

• Conveyor systems: detecting packages or pallets at long ranges.

• Mobile equipment and automated guided vehicles (AGV) for obstacle detection.

Package Includes

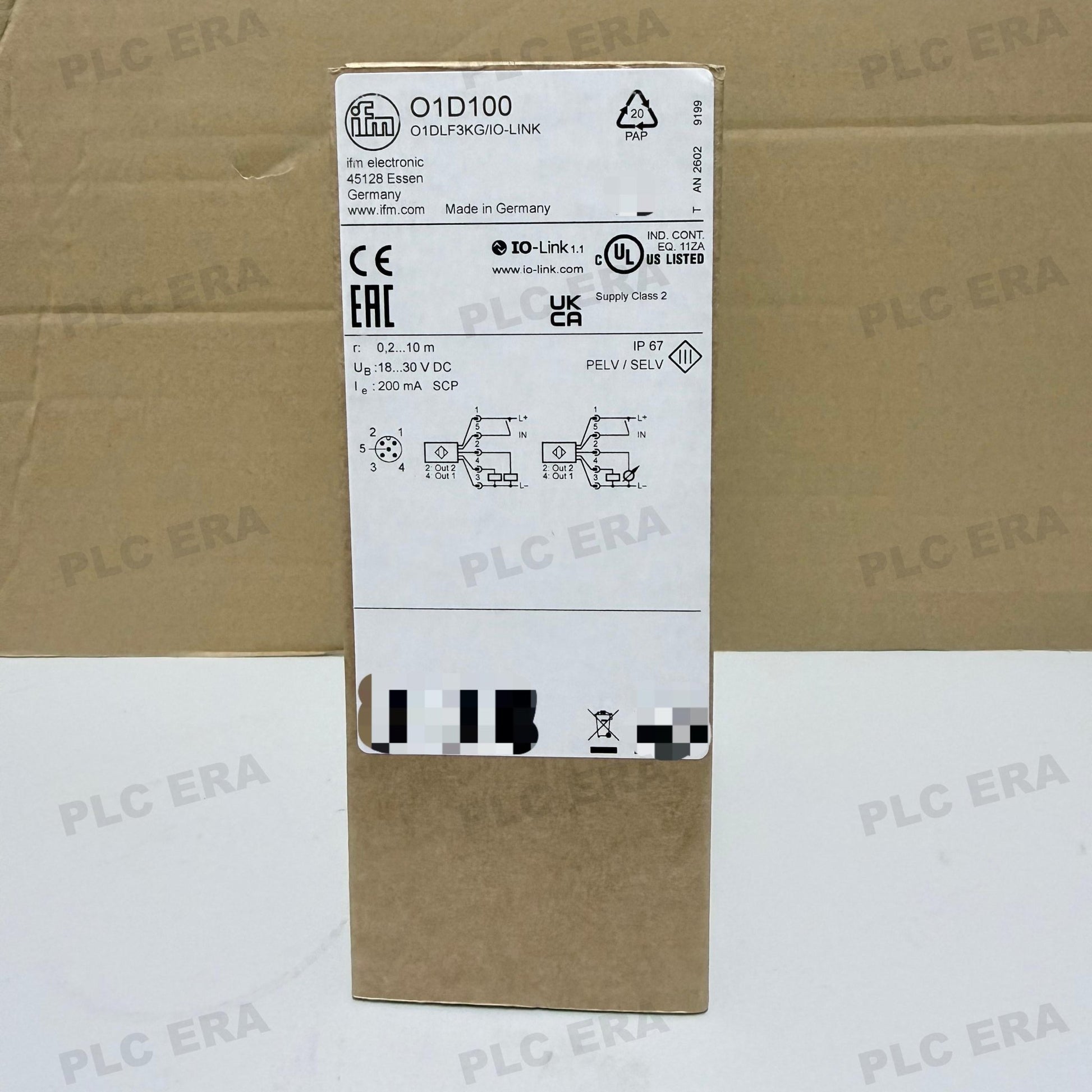

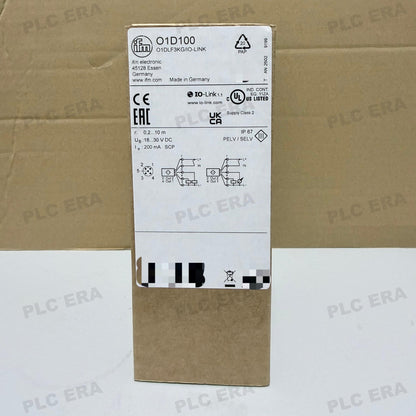

• 1 x IFM O1D100 laser distance sensor (O1DLF3KG/IO‑Link)

• 2 x mounting brackets (typically included, verify with datasheet)

• Instruction manual
