O1D102 Laser Distance Sensor 3.5m Class 2 PNP Analog | IFM

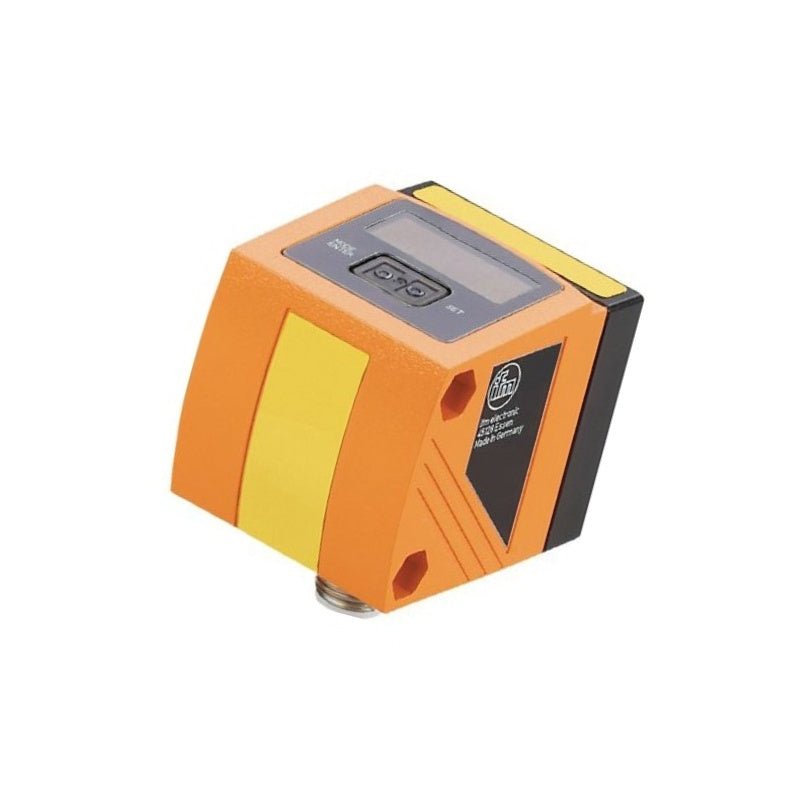

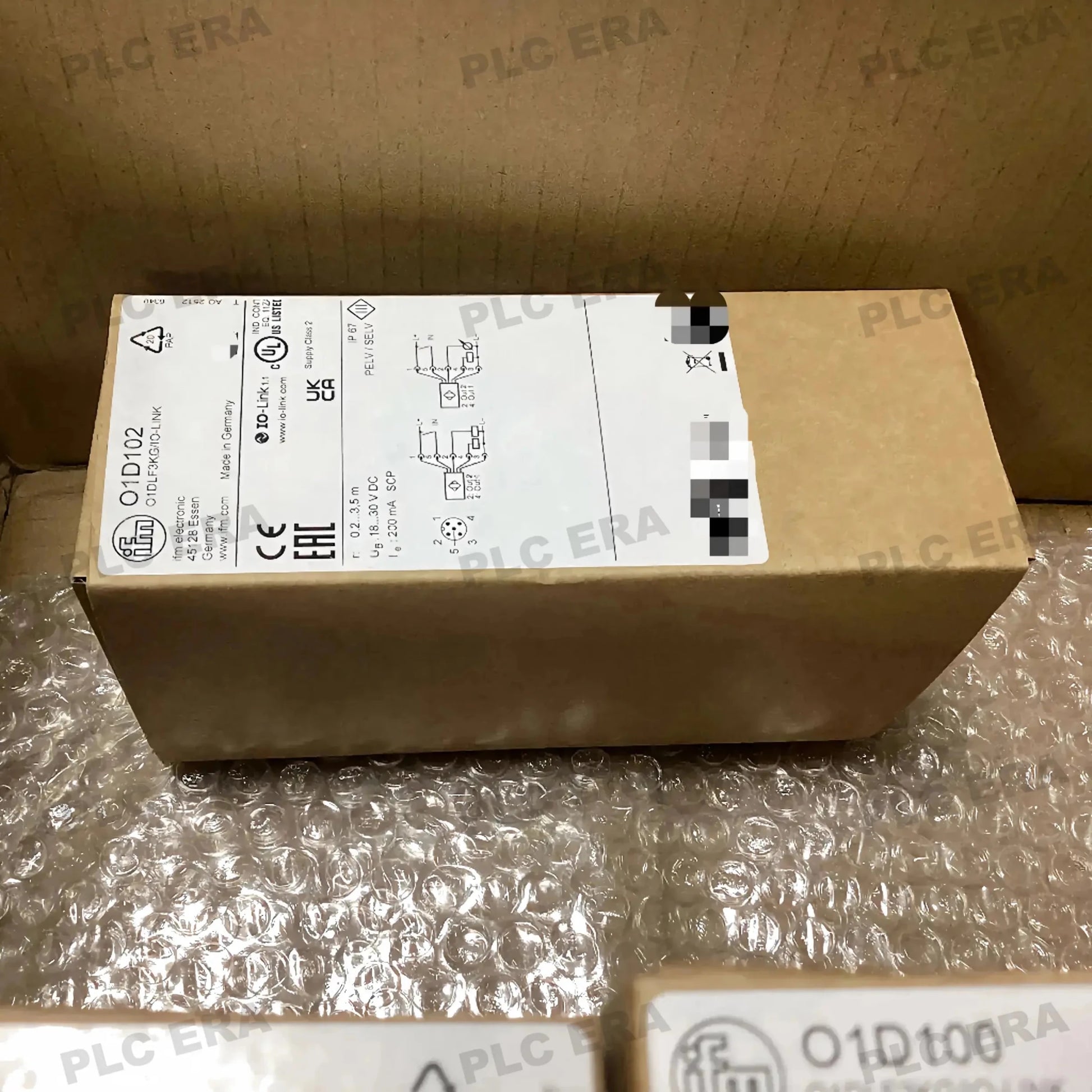

The Original New IFM O1D102 Laser Distance Sensor is a compact photoelectric distance sensor designed for reliable optical distance measurement in industrial automation and factory automation applications. Featuring two switching outputs (one programmable as analog output), scalable measuring range, and background suppression, this sensor delivers precise distance detection for black and shiny targets up to 3.5m. User-friendly communication and parameterisation via IO-Link ensures flexible integration.

Core Engineering Highlights:
200mm–3.5m measuring range | Class 2 laser (650nm, ≤4.0mW) | PNP switching + 4-20mA / 0-10V analog output | 18-30V DC operating voltage | IP67 protection | IO-Link V1.1 | M12 connector | –10°C to +60°C operating temperature | Diecast zinc housing with glass lens

Key Features:

• Original New IFM O1D102 laser distance sensor

• Reliable optical distance measurement with background suppression

• Two switching outputs, one programmable as analog output (4-20mA or 0-10V)

• Scalable measuring range and window function

• Class 2 laser (650nm wavelength, ≤4.0mW power, 1.3ns pulse)

• Measuring range: 200mm to 3.5m (black glossy surfaces)

• Sampling rate: 1-50 Hz (preset 5 Hz)

• IO-Link V1.1 communication interface (COM2, 38.4 kBaud)

• Smart Sensor profile support: Sensor Identification, Binary Data Channel, Process Value, Sensor Diagnosis

• User-friendly parameterisation via IO-Link

• IP67 protection rating for harsh industrial environments

• Diecast zinc housing with glass front lens and PC LED window

• Alphanumeric 4-digit display with LED indicators for switching status and power

• M12 connector, A-coding

• cULus - Class 2 source required

Applications:

• Distance measurement in factory automation and industrial applications

• Position monitoring and control

• Level measurement and fill level monitoring

• Conveyor system object detection

• Packaging machinery positioning

• Background suppression applications requiring reliable distance measurement

• Black and shiny target detection

Technical Specifications:

• Catalog Number: O1D102

• Product Type: Photoelectric distance sensor / Laser distance sensor

• Laser Protection Class: 2

• Housing: Rectangular, diecast zinc

• Dimensions (W x H x D): 59 x 42 x 52 mm

• Weight: 241.7 g

• Operating Voltage: 18-30V DC

• Current Consumption: < 150 mA

• Protection Class: III

• Reverse Polarity Protection: Yes

• Typical Lifetime: 50,000 hours

• MTTF: 173 years

• Measuring Range: 0.2-3.5 m (black glossy surfaces)

• Sampling Rate: 1-50 Hz (preset: 5 Hz)

• Background Suppression: 0-4 m

• Max. Light Spot Diameter: 6mm at 3.5m

• Outputs: 2 digital outputs (PNP) + 1 analog output

• Digital Output Function: Normally open / normally closed (programmable)

• Max. Current Load per Output: 200mA

• Analog Current Output: 4-20mA (IEC 61131-2), max. load 250Ω

• Analog Voltage Output: 0-10V (IEC 61131-2), min. load resistance 5000Ω

• Short-circuit Protection: Yes (pulsed, non-latching)

• Overload Protection: Yes

• Communication Interface: IO-Link

• Transmission Type: COM2 (38.4 kBaud)

• IO-Link Revision: 1.1

• SDCI Standard: IEC 61131-9

• SIO Mode: Yes

• Required Master Port Class: A

• Process Data Analog: 2

• Process Data Binary: 3

• Min. Process Cycle Time: 6ms

• Ambient Temperature: –10°C to +60°C

• Protection Rating: IP67

• EMC: EN 60947-5-2

• Laser Class: 2 (EN/IEC60825-1:2007, EN/IEC60825-1:2014)

• Complies with: 21 CFR 1040.10 except for deviations pursuant to Laser Notice No. 50

• Connection: 1 x M12 connector, A-coding

• Display: Alphanumeric display, 4-digit; LEDs for switching status (2 x yellow) and power (green)

• Pack Quantity: 1 piece

• Certifications: CE, cULus

IO-Link Smart Sensor Profile Support:

• Smart Sensor - SSP 0: Generic Profiled Sensor

• Device identification

• Process data variable

• Device diagnosis

• Teach channel

Laser Safety Notes:

• Caution: Laser light

• Power: ≤4.0mW

• Wavelength: 650nm

• Pulse: 1.3ns

• Do not stare into beam

• Avoid exposure to laser light

System Compatibility:

• PLCs and controllers via PNP digital inputs

• PLC analog input modules via 4-20mA or 0-10V

• IO-Link masters for advanced parameterisation and diagnostics

• M12 A-coded connector standard

Related Products:

• O1D100 – Class 2, 10m range for standard environment

• O1D103 – Class 2, 10m range, NPN switching

• O1D105 – Class 2, 10m range for reflective backgrounds

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• E21133 – Protective cover for O1D series
