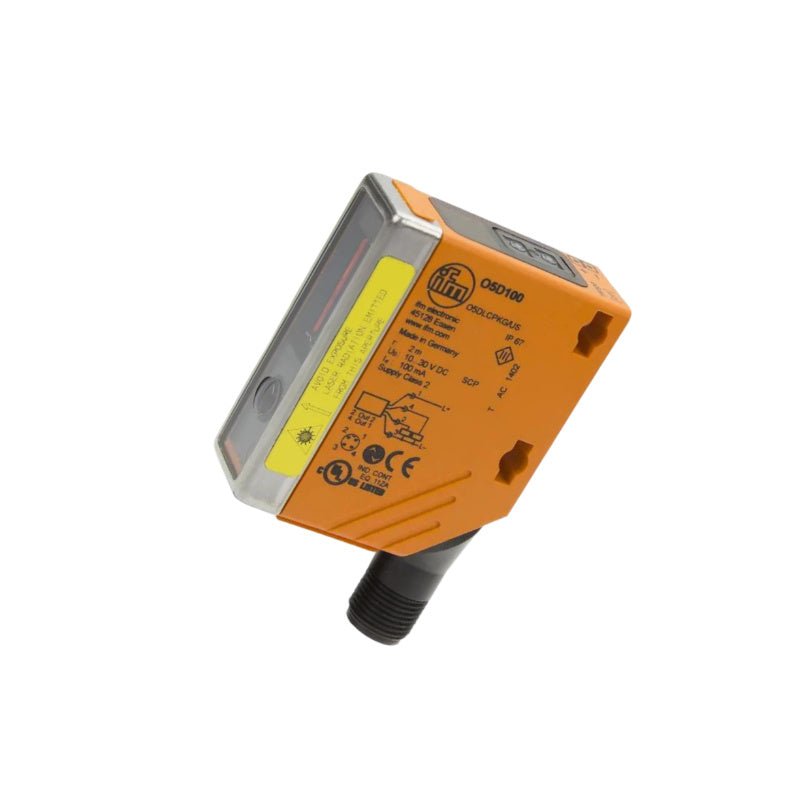

IFM O5D100 Laser Sensor 0.03-2m PNP IO-Link IP65/67 Time-of-Flight

Overview
The IFM O5D100 (O5DLCPKG/US) is a high‑performance photoelectric distance sensor utilizing Time‑of‑Flight (ToF) measurement technology . With a detection range of 0.03 m to 2 m, this sensor delivers reliable, contactless distance measurement even on challenging glossy surfaces, dark objects, or at oblique angles . The sensor features reliable background suppression and color‑independent detection, making it ideal for automated production lines, logistics, and packaging applications .

The O5D100 provides 2 PNP switching outputs (100 mA each, complementary NO/NC), an 11 Hz switching frequency, and IO‑Link V1.1 communication (COM2, 38.4 kBaud) for remote parameterisation and diagnostics . The 3‑digit alphanumeric display and pushbuttons enable precise on‑site switch point setting, displaying current distance in cm . Housed in a rectangular PA housing with stainless steel front frame (56 × 18.2 × 46.8 mm), the sensor is rated IP65/IP67, operates from -25 °C to 60 °C, and features a visible red laser (Class 2, 650 nm) with a 5 mm light spot at 2 m .

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Very long range due to time-of-flight measurement – Time‑of‑Flight (ToF) measurement technology enables a detection range of 0.03 m to 2 m, delivering stable measurements unaffected by ambient light or object colour .

• Reliable background suppression and colour-independent detection – Reliable background suppression ensures accurate object detection independent of colour, with consistent performance on black (6% remission) and white (90% remission) surfaces .

• With display and pushbuttons for precise switch point setting – 3‑digit alphanumeric display and pushbuttons enable on‑site switch point setting, showing current distance in cm for intuitive configuration .

• Oblique angle to the object possible – Reliable detection even when the sensor is mounted at an oblique angle to the target, providing flexible installation options .

• Reliable detection of glossy surfaces – Optimised ToF measurement ensures dependable detection of glossy, reflective, and shiny surfaces where conventional sensors fail .

• PNP outputs with IO‑Link V1.1 communication – 2 complementary PNP outputs (NO/NC, 100 mA), 11 Hz switching frequency, and IO‑Link V1.1 (COM2, 38.4 kBaud) for remote parameterisation and diagnostics .

• Robust IP65/IP67 housing with red laser Class 2 – Rectangular PA housing with stainless steel front frame, IP65/IP67 protection, visible red laser (650 nm, Class 2, ≤4.0 mW), and 5 mm light spot at 2 m .

• High reliability with 151‑year MTTF – Exceptional mean time to failure of 151 years ensures long‑term dependable operation, minimising unplanned downtime .

Technical Specifications

Applications

• Automated production lines – Position monitoring, object presence detection, and distance measurement.

• Logistics and warehousing – Pallet detection, conveyor gap monitoring, and automated sorting.

• Packaging machinery – Roll diameter monitoring, fill level detection, and packaging gap control.

• Glossy or dark object detection – Reliable detection of shiny, reflective, or black surfaces where conventional sensors fail .

• Oblique angle installations – Flexible sensor mounting where straight‑on alignment is not possible .

Package Includes

• 1 × IFM O5D100 photoelectric distance sensor (O5DLCPKG/US)

• Instruction manual

⚠️ *M12 mating connector sold separately. For operation below -10 °C, a warm‑up period is required (laser off) .*
