IFM PA3020 Pressure Transmitter 0-400bar 4-20mA G1/4 IP68 IP69K

Overview

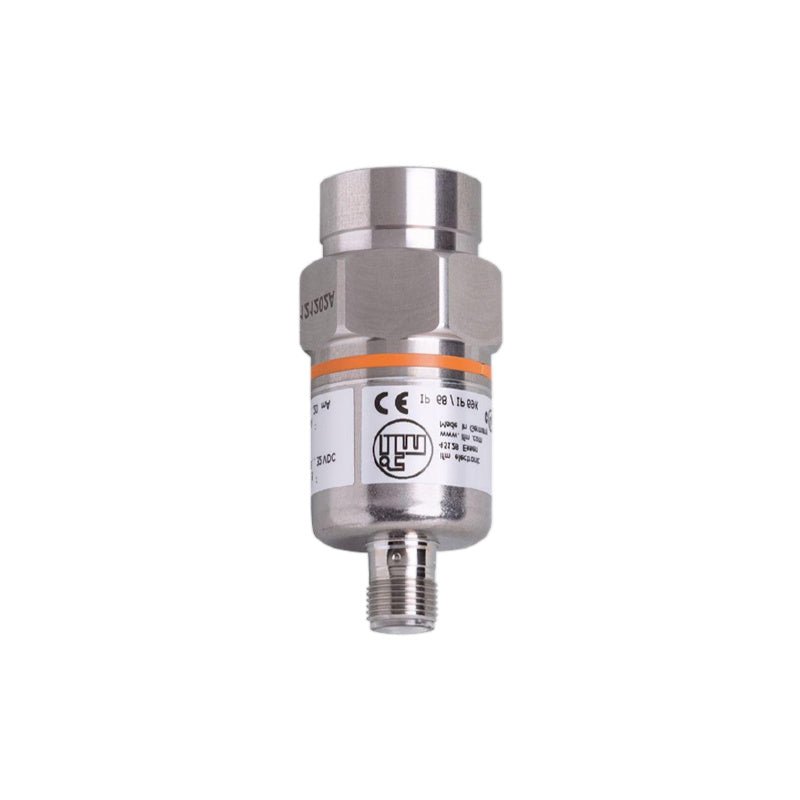

The IFM PA3020 (PA-400-SBR14-A-ZVG/US/ /V) is a high‑precision pressure transmitter with a ceramic capacitive measuring cell, designed for reliable relative pressure measurement in liquids and gases. Featuring a measuring range of 0…400 bar (0…5800 psi / 0…40 MPa) and a precise linear 4…20 mA output signal, this loop‑powered transmitter delivers exceptional performance for demanding industrial applications. The ceramic measuring cell offers high overload protection (pressure rating 600 bar, min. bursting pressure 1000 bar) and long‑term stability (< ±0.05% of span per 6 months). The robust stainless steel (316L) housing with gold‑plated contacts and G 1/4 internal thread process connection withstands harsh industrial environments. Rated IP68 and IP69K, the transmitter is dust‑tight, resistant to continuous immersion, and withstands high‑pressure, high‑temperature washdowns. With high repeatability (< 0.1% of span), low linearity error (< ±0.25% BFSL), wide operating temperature range (-25…80°C ambient, -25…90°C medium), and response time of 3 ms, the PA3020 is suitable for hydraulic systems, industrial machinery, process automation, and food & beverage applications requiring high‑pressure monitoring.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Ceramic capacitive measuring cell with high overload protection – Ceramic capacitive measuring cell provides excellent corrosion resistance, minimal hysteresis, and high overload protection with pressure rating of 600 bar and min. bursting pressure of 1000 bar, ensuring long‑term stability.

• Precise linear 4‑20 mA output signal – Loop‑powered 4…20 mA analogue output with max. load of 720 Ω (Ub = 24 V), enabling seamless integration into PLCs, SCADA, and process control systems without additional power supply.

• High repeatability and low linearity error – Repeatability of < 0.1% of span (with temperature fluctuations < 10 K) and characteristics deviation of < ±0.25% BFSL, ensuring accurate and consistent pressure measurement across the entire measuring range.

• Exceptional long‑term stability – Long‑term stability of < ±0.05% of span per 6 months, minimizing recalibration frequency and reducing maintenance costs over the sensor‘s operational lifetime.

• Robust stainless steel housing with IP68 / IP69K rating – 316L stainless steel housing with gold‑plated contacts, rated IP68 (dust‑tight and continuous immersion) and IP69K (high‑pressure, high‑temperature washdown resistance), suitable for harsh industrial environments including food processing and outdoor installations.

• Wide operating temperature range – Ambient temperature range of -25…80°C, medium temperature range of -25…90°C (-40…90°C on request), accommodating extreme thermal conditions in industrial automation.

• G 1/4 internal thread process connection – Standard G 1/4 female thread process connection with gold‑plated contacts, compatible with a wide range of industrial fittings and adapters for flexible installation.

• High reliability with comprehensive EMC compliance – Certified to EN 61000‑6‑2 (industrial immunity) and automotive directive 2004/104/EC with 100 V/m HF radiated immunity, ensuring reliable operation in electrically noisy environments.

Technical Specifications

Applications

• Hydraulic systems – Pressure monitoring in hydraulic power units, presses, injection molding machines, and heavy equipment.

• Industrial machinery – Pump control, filter monitoring, and pressure feedback in automated production lines.

• Process automation – Pressure measurement in chemical processing, water treatment, and oil & gas applications.

• Food and beverage industry – High‑pressure washdown environments requiring IP69K protection and gold‑plated contacts.

• Mobile equipment – Pressure monitoring in construction, agricultural, and material handling machinery.

• Compressed air systems – Pressure monitoring in compressors, air dryers, and pneumatic networks.

• Test and measurement – Accurate pressure measurement in calibration labs and industrial testing equipment.

Package Includes

• 1 × IFM PA3020 pressure transmitter (PA-400-SBR14-A-ZVG/US/ /V)

• Instruction manual

⚠️ M12 mating connector sold separately. For gas applications > 25 bar, contact manufacturer for suitability.
