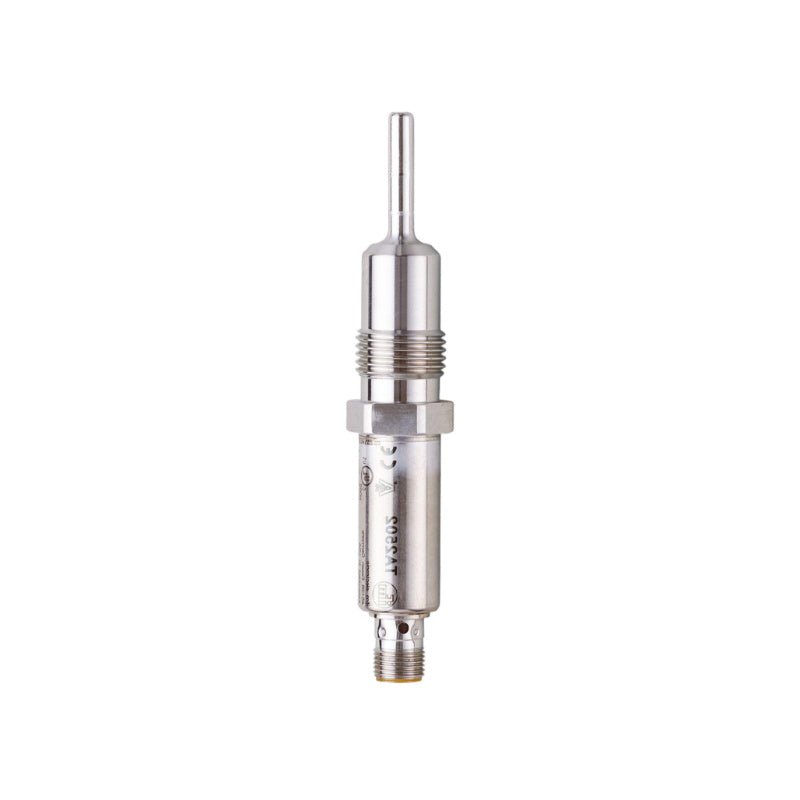

IFM TA2502 Temperature Transmitter -50-200°C 4-20mA IO-Link IP69K

Overview
The IFM TA2502 (TA-030CLER12- - /US) is a high-performance RTD temperature transmitter designed for precise temperature measurement in hygienic industrial applications. Featuring a Pt1000 measuring element (Class A to DIN EN 60751) with a measurement range of -50°C to 200°C, this compact transmitter delivers high accuracy across the entire temperature range. The device provides a scalable 4…20 mA analogue output (invertible) and integrated IO-Link V1.1 communication (COM2, 38.4 kBaud) for remote parameterisation, process data readout, and diagnostics.

The hygienic design, with stainless steel (316L/1.4404) wetted parts electropolished to Ra < 0.8 and EHEDG/FDA-compliant materials, meets the strict sanitation requirements of the food and beverage industry. Rated IP67, IP68, and IP69K, the transmitter withstands dust, continuous immersion, and high-pressure, high-temperature washdowns. With a pressure rating of 160 bar (vacuum resistance down to -1000 mbar), response time T09 < 2 seconds, power-on delay of only 2 seconds, and MTTF of 232 years, the TA2502 is built for demanding process applications including food & beverage, pharmaceutical, and chemical industries.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Hygienic design for food and beverage industry – EHEDG/FDA-compliant materials, stainless steel (316L/1.4404) wetted parts electropolished to Ra < 0.8, ensuring cleanability and meeting strict sanitation requirements.

• High precision across entire temperature measurement range – Pt1000 Class A measuring element (to DIN EN 60751) delivers ±0.3 K + (±0.1% of span) precision with 0.04 K resolution, ensuring accurate temperature monitoring.

• Scalable 4‑20 mA analogue output with IO‑Link V1.1 – Configurable analogue output (4‑20 mA or 20‑4 mA, invertible) with IO‑Link V1.1 communication (COM2, 38.4 kBaud) enables remote parameterisation, process data readout, and diagnostics.

• Fast response dynamics and very short power‑on delay time – Response time T09 < 2 s, T05 < 0.5 s, power‑on delay only 2 s, enabling rapid temperature detection for dynamic process control.

• Robust stainless steel housing with triple IP rating – IP67, IP68, and IP69K protection ratings with stainless steel (316L/1.4404) housing resist dust, continuous immersion, and high‑pressure washdowns.

• High pressure resistance and wide temperature operation – Pressure rating 160 bar, vacuum resistance -1000 mbar, ambient temperature -25…80 °C (medium: -50…200 °C).

• Diagnostic output for drift and fault monitoring – Built‑in self-monitoring with diagnostic output for drift and fault detection, ensuring high process safety and reducing unplanned downtime.

• Free 5‑point calibration certificate included – Includes factory certificate with 5‑point calibration traceable to international standards, ensuring measurement accuracy and compliance.

• High reliability with MTTF of 232 years – Exceptional mean time to failure ensures long‑term dependable operation, minimising unplanned downtime and maintenance costs.

Technical Specifications

Applications

• Food and beverage industry – Temperature monitoring in CIP/SIP washdown environments, pasteurisers, sterilisation tunnels, mixing tanks, and filling lines.

• Pharmaceutical and biotechnology – Sterile processing equipment, bioreactors, fermentation vessels, and cleanroom applications requiring EHEDG/FDA-compliant sanitary design.

• Chemical processing – Reaction vessels, heat exchangers, and distillation columns requiring high pressure resistance (160 bar) and wide temperature range (-50…200 °C).

• Dairy processing – Milk pasteurisation, cheese vats, and yoghurt fermentation monitoring.

• Brewing and beverage – Mash tuns, fermentation tanks, bright beer tanks, and carbonation vessels.

• Packaging machinery – Temperature monitoring in hot fillers, seal bars, and shrink tunnels.

• Process automation – General industrial temperature measurement requiring 4‑20 mA analogue output with IO‑Link diagnostic capabilities.

Package Includes

• 1 × IFM TA2502 temperature transmitter (TA-030CLER12- - /US)

• Free 5‑point calibration certificate

• Instruction manual (available at www.factory-certificate.ifm)

⚠️ *M12 mating connector sold separately. Compatible with EHEDG/FDA-compliant weldable adapters (e.g., IFM E30050 series).*
