KEYENCE FU-49X Reflective Fiber Unit 1.5mm M3 Thread

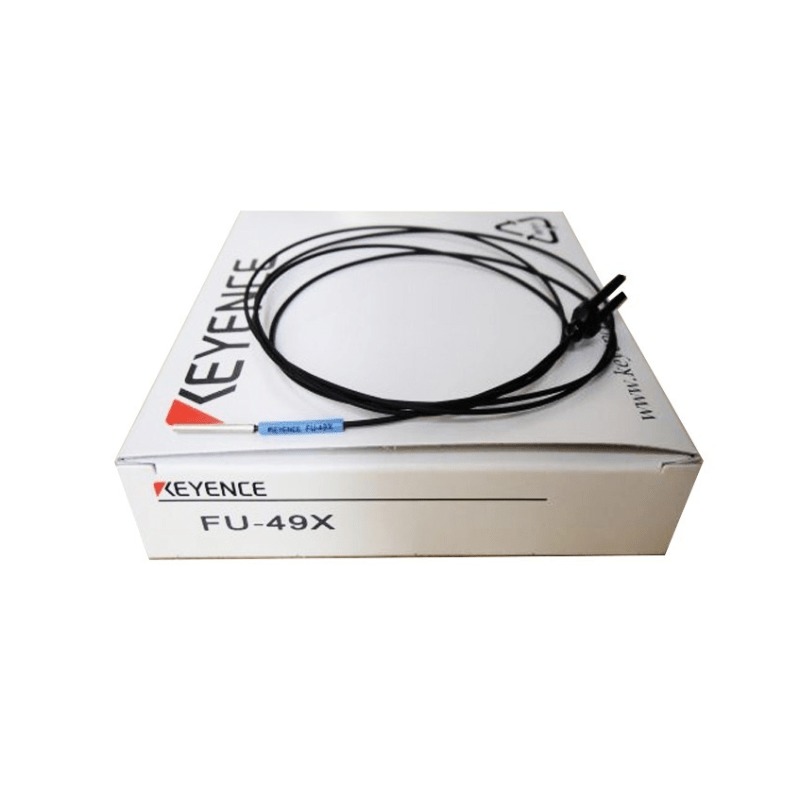

KEYENCE FU‑49X is a reflective (diffuse) fiber unit for non‑contact detection of miniature objects in industrial automation systems. Its extremely compact stainless steel housing (outer diameter 1.5 mm, M3 thread) and high‑flex fiber cable allow installation in tight, space‑constrained machinery where conventional sensors cannot fit. Capable of detecting objects as small as a 0.005 mm diameter gold wire, it delivers high‑precision detection for quality control, part presence verification, and alignment tasks. The 1 m free‑cut fiber cable (ø1.3 mm × 2) is not user‑cuttable to ensure consistent optical performance. Minimum bend radius R4 mm (high‑flex) for routing in cable carriers and compact assemblies. Ambient temperature range –40 °C to +70 °C supports installation in harsh environments.

Applications:

• Detection of miniature electronic components in semiconductor and surface‑mount assembly

• Part presence verification on high‑speed pick‑and‑place and conveyor systems

• Precision positioning in automated assembly lines and medical device manufacturing

• Quality inspection in pharmaceutical and food packaging

• Integration into compact machinery with space‑constrained routing

Technical Specifications:

Detection Distance (when used with KEYENCE fiber amplifiers, by power mode):
Note: Actual detection distance depends on the fiber amplifier model and settings. Typical values with FS‑N series (e.g., FS‑N10) are shown below as reference. For amplifier‑specific values, refer to the respective amplifier catalog.

Compatibility:

• Designed for use with KEYENCE FS‑N, FS‑V, FS2, LV‑N, LV‑S series fiber amplifiers (amplifier sold separately)

• The 1 m fiber cable cannot be cut; order a different model if a different length is required

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• FS‑N series – Digital fiber amplifiers for use with FU‑49X

• FS‑V series – High‑performance digital fiber amplifiers

• FU‑49 – Reflective fiber unit with 8 mm minimum detectable object (standard sensitivity)

• F‑2HA – Small spot lens attachment for reduced spot diameter
